Select IP address of each laser, then double click. Raycus Laser Control System will communicate
with the selected laser. After the communication is established, the lower left status display area will show
that the network connection is "OK", as Figure 32.
Figure 32 Communication status interface between rlcs and the laser

8.2.1 Add/DeleteLaser

Users can add/delete laser in the laser list area by right-click to add/delete In the Raycus Laser Control
Software. Users need to type the IP address of laser to add a new laser. Detailed operation is shown in
Figure 32 and 33.

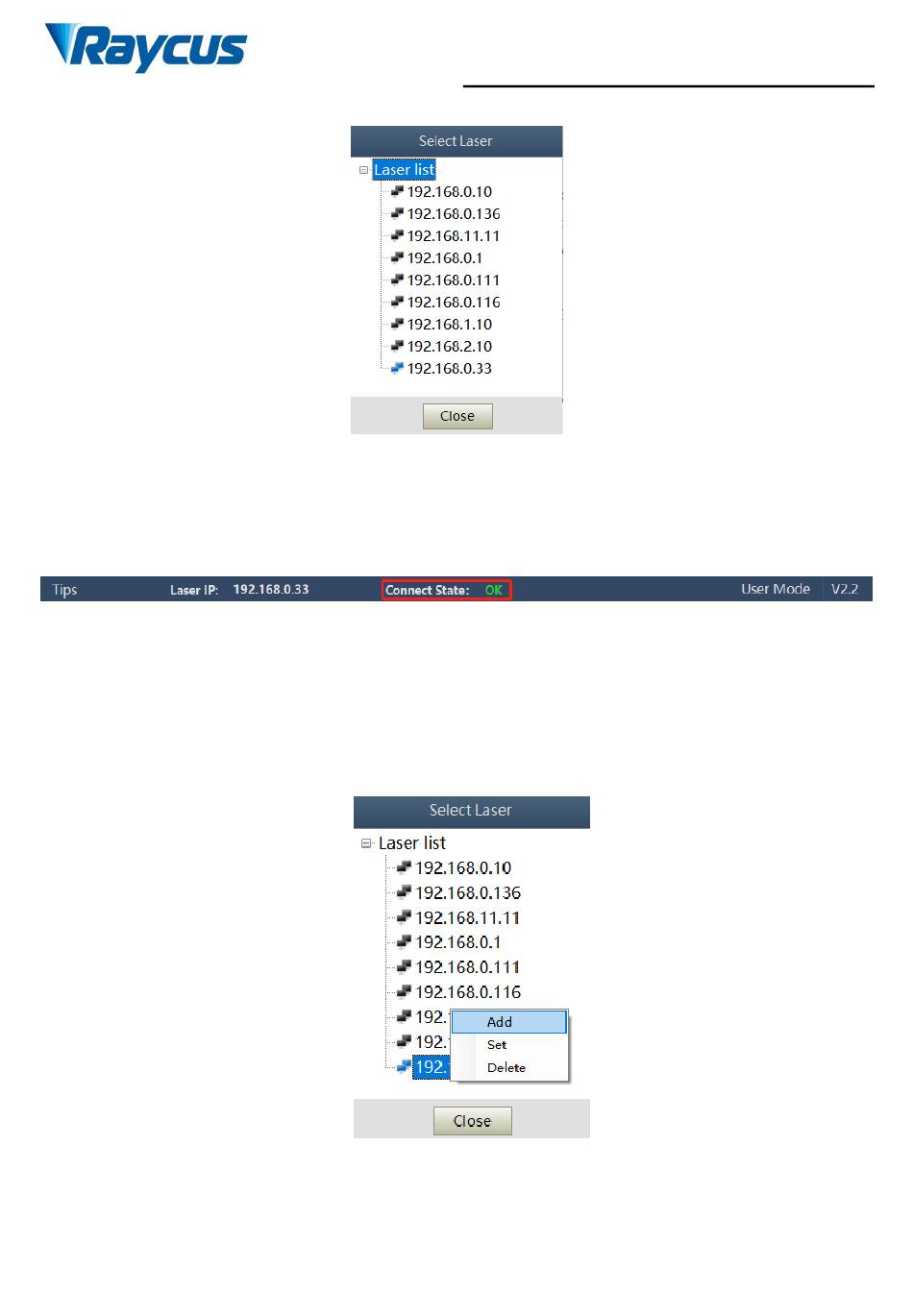

Figure 31 Multi-laser control interface
Figure 33 Adding the fiberlaser
