4.4.1 Safety XP2 24 PinInterface

The 24-pin hard wire interface, with remote control system power-on, remote main power power-on,
and active and passive output of some lasers. Detailed interface definitions are shown below:
No. Type
1 MOD+
2 MOD-
3 OUT (FET S pole)
4 OUT (FET D pole)
5 OUT
6 OUT
7 OUT (24V)
8 IN
9 IN
10 24V OUT
11 OUT
14 OUT

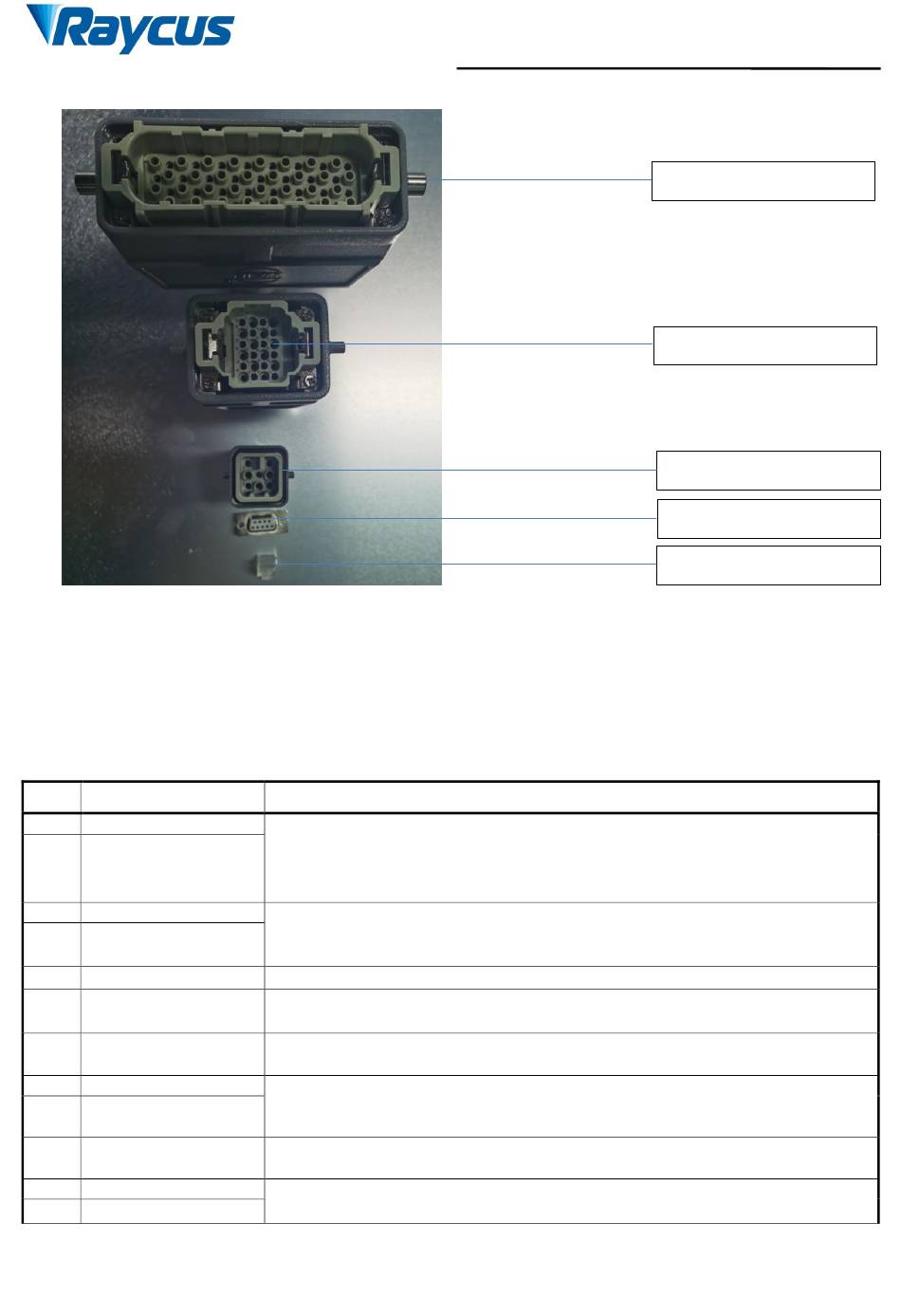

Figure 12 Control signal connectors
Table 5 Safety XP2 24 pin interface definition
Laser emission control, voltage input；
Fiber Laser ON：4～30 V；
Fiber Laser OFF：-3～2 V;
Maximum modulation frequency：5 kHz.
Laser emission indicator, MOSFET D pole, S pole output；
electric current ＜1A，Vds＜30V
Passive Signal
Laser emission warning light negative，electric current＜100mA
The main power supply is energized to the negative of the warning lamp，electric current
＜100 mA
The laser emission and the main power supply are energized to the positive pole of the
warning light，electric current＜400mA
During REM mode, the remote main control board is powered on, 24V active contact
input, and external voltage or grounding is not allowed； When pin 8 and 9 are closed,
the main control board will be powered on.
The laser emission and the main power supply are energized to the positive pole of the
warning light，electric current＜400mA.
Front panel emergency stop output 1, relay contact output, passive contact ，
electric current＜100mA，voltage＜30V；
Wuhan Raycus Fiber Laser Technologies Co., Ltd.
User Guide of RFL-C3000XZ~RFL-C12000XZ
Description
23
XP1: Hardwire
XP2: Safety
XP4: Analogue
XP3: RS-232
XP2: Ethernet (RF-45)
