Raycus ABP Series User Manual page 15

RFL-6000/6000-ABP share a cabinet, and henceforth the same dimensions of 1200× 960× 1160 mm
(width × depth × height, casters and rings, excluding alarm lights), and the weight is about 500kg
for RFL-6000/6000-ABP.
The type and dimensions ofRFL-1500/1500-ABP，RFL-2000/2000-ABP，RFL-3000/3000-ABP，
RFL-2000/4000-ABP ， RFL-4000/2000-ABP ， RFL-4000/4000-ABP ， RFL-6000/6000-ABP's fiber
delivery cable and cable connector are as follows:
a) RFL-1500/1500-ABP， RFL-2000/2000-ABP， RFL-3000/3000-ABP， RFL-2000/4000-ABP， RFL-
4000/2000-ABP ， RFL-4000/4000-ABPuses the RFL-HQBH model cable connector, and the
external dimensions of the cable connector are shown in Figure 4:

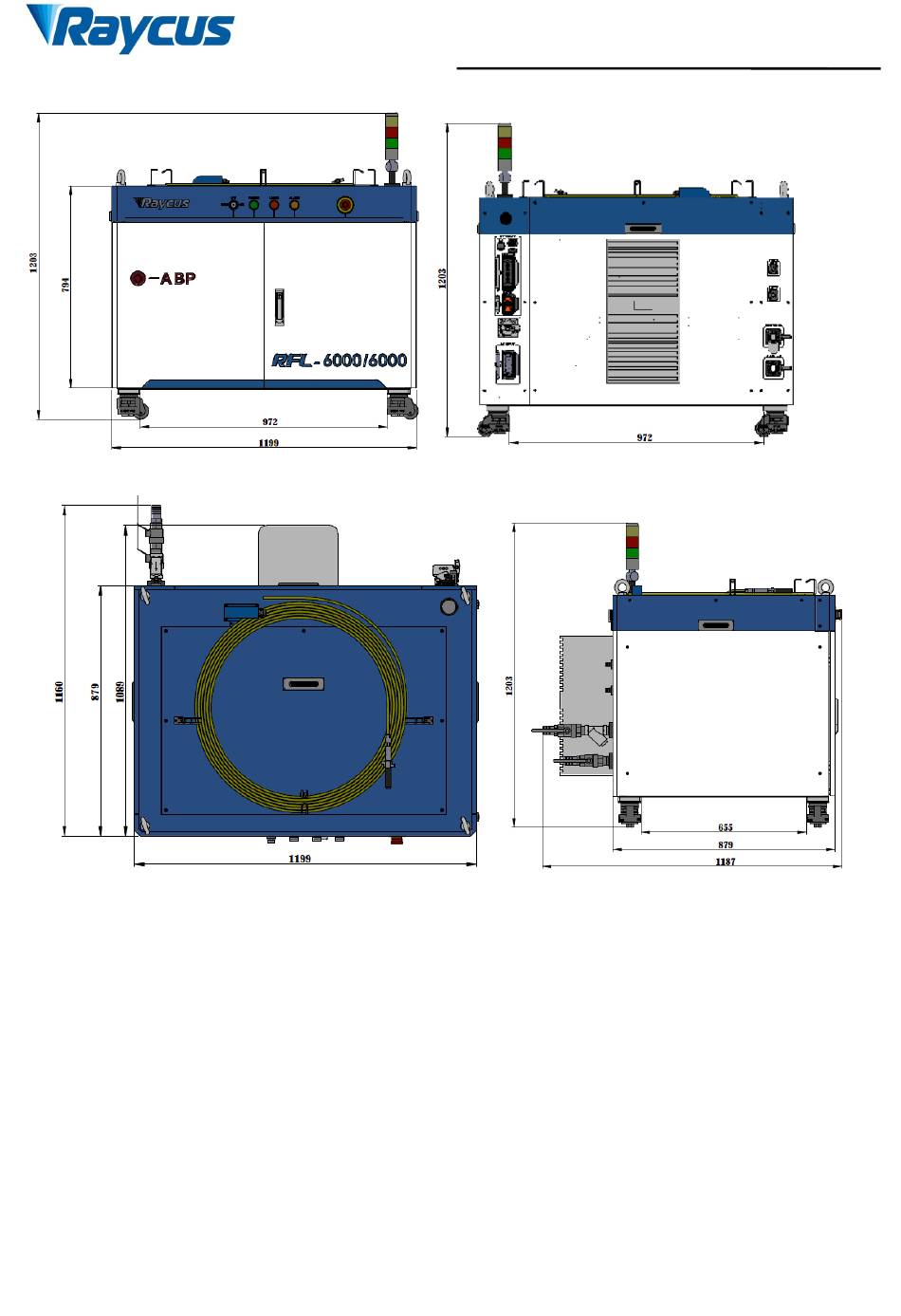

Figure 3.a - Front and rear view
Figure 3.b - Top and left side view
Figure 3 Dimensions of RFL-6000/6000-ABP
11
