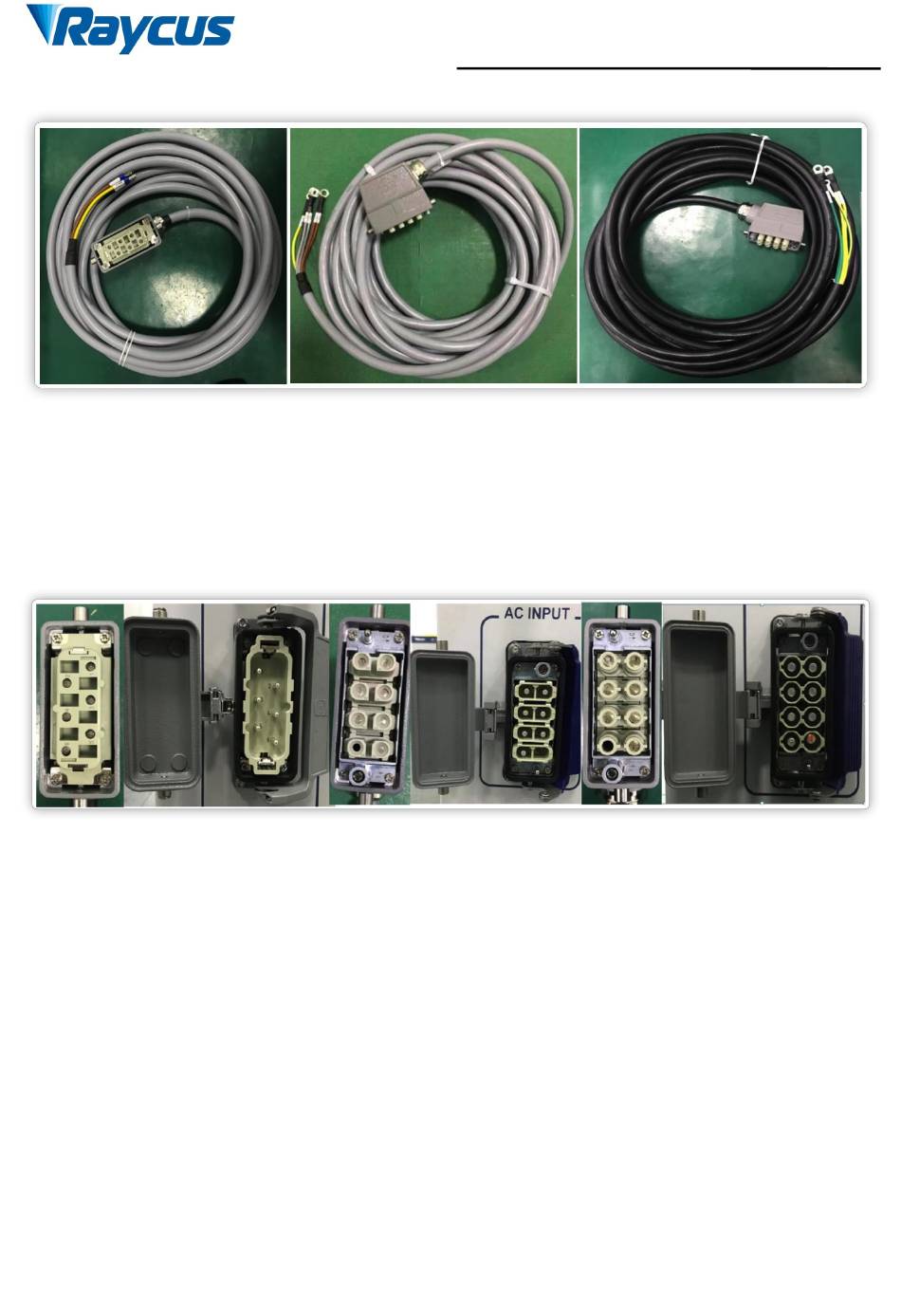

Insert the plug at the end of the power cord into the "AC INPUT" socket on the rear panel. Notice that
the plug is wrong-side proofing. After insertion, lock it with the latch. As Figure 11
.
socket
a) 1500/1500,2000/2000 b) 3000/3000,4000/2000 c) 4000/4000,6000/6000
RFL-1500/1500-ABP and RFL-2000/2000-ABP models use four-core power cable. RFL-
3000/3000,2000/4000,4000/2000,4000/4000,6000/6000 models use seven-core power cable. AC interface
definition and requirements are shown in Table 4.
a) 1500/1500,2000/2000b) 3000/3000,2000/4000,4000/2000c) 4000/4000,6000/6000
Figure 10
Figure 11
Wuhan Raycus Fiber Laser Technologies Co., Ltd.
Power cords of differentmodels
Power cordplug and socket
