ASCOM NU Series Installation Manual page 90

Installation Manual
NU-Series Hardware

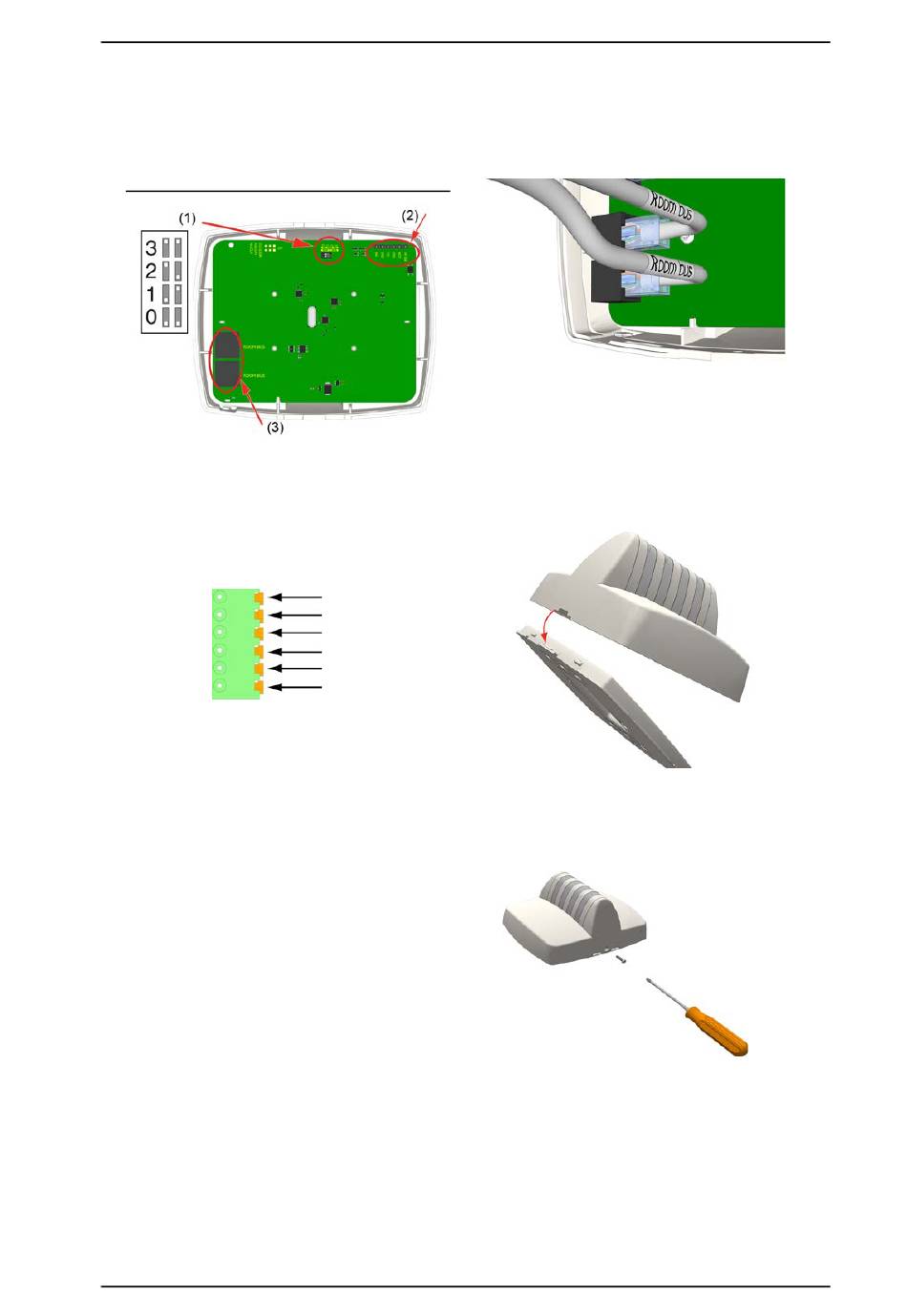

NUCL4-H active light connections
Legend
(1) DIP switches for bus addressing
(2) Auxiliary I/O connector for auxiliary connections
(3) 2x RJ-45 connections to room bus
To terminate a 6-pole block connector for an auxiliary I/O
cable:
1. Terminate the auxiliary I/O cable with a 6-pole block
connector (not included), as shown below.
2. Terminate the other end of the cable as needed for that
auxiliary device.
To connect a NUCL4 light module:
1. Set the light's DIP switches according to your installation's
bus addressing scheme. See figure "NUCL4-H active light
connections", item 1.
Note: If your installation does not require DIP switches,
skip this step and use the Software Configuration Tool. The
DIP switches must remain in their OFF position.
2. If you are connecting an auxiliary I/O to the light, attach
the 6-pole connector from the auxiliary device to the 6-pin
terminal; otherwise, skip this step. Ensure the connector is
seated properly on the terminal pins. See figure "NUCL4-H
active light connections", item 2.
Note: When attaching RJ-45 connectors to the module, use
caution not to strain the connectors. If the cables are too
stiff, remove up to 15cm (6in.) of the cables' jackets.
P/N PM000116A • Rev. 1 • ISS 25MAY2017
P/N PM000223A • Rev. 1 • ISS 9 August 2017
Room Modules
3. Insert the RJ-45 connector (from the room bus) into a
ROOM BUS jack on the back of the module, then insert the
next RJ-45 connector (to the next module) into the other
jack, as shown above.
To mount the dome light to the backplate:
1. Ensure that all cable connections are properly secured to
the jacks and terminals on the back of the light.
2. Place the light onto the two top fasteners of the
backplate.
RELAY
COM
GND
IN1
GND
IN0
3. Press the light firmly against the backplate so that the
light's bottom fasteners snap closed on the backplate.
4. Insert the locking screw into the bottom of the light, and
then tighten the screw until it is snug, as shown below. Do
not over tighten.
