Installation Manual
NU-Series Hardware

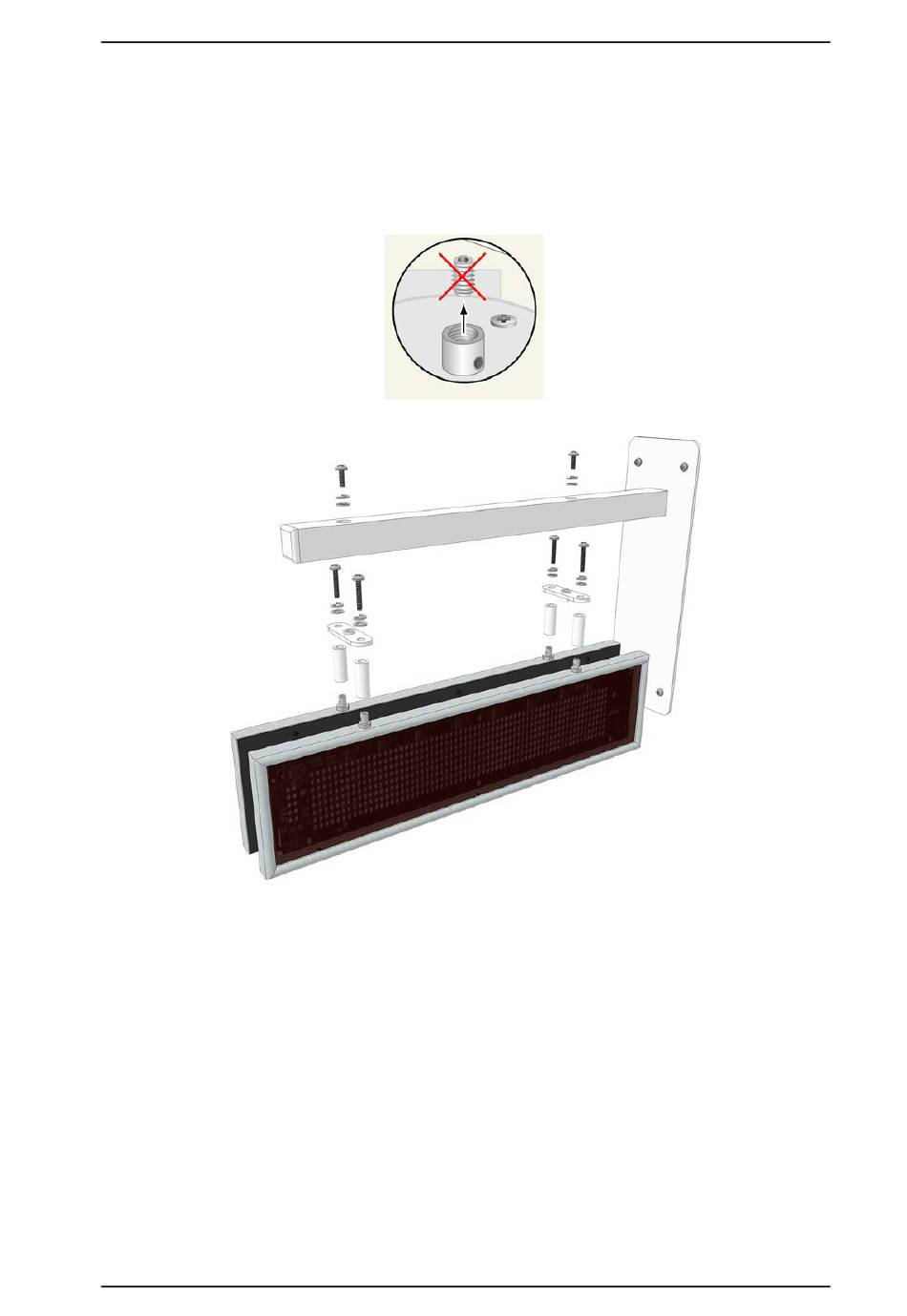

To mount double display to the wall mounting bracket:
1. Ensure that the LAN cable is connected to the corridor display. See
the LAN Cable" on page
2. Remove the two hex screws at the top of the display using a hex key (wrench).
3. Use the included accessories to mount a double display on the bracket.
P/N PM000223A • Rev. 1 • ISS 9 August 2017
IP Devices
43.
"5.4.5, Connecting
51
