Installation Manual
NU-Series Hardware

5.4.2 Dimensions and Weights

• Weight of the corridor display, 0.9kg (32oz.)
The method used to fix the corridor display to the ceiling or wall must be capable of safely
supporting the display and the mounting accessories, such as the wall mounting bracket.
Caution: Do not mount the corridor display on ceiling tile rails or directly to ceiling
tiles.

5.4.3 Corridor Display Power Requirements

Power the corridor display using Power over Ethernet (PoE) through a PoE switch.
Use shielded or unshielded Ethernet cables (Cat5e or higher) when connecting the
corridor display to the network.
The following table shows the power requirements for the corridor display.
Display Type
NUCD12IP
Single Sided
P/N PM000223A • Rev. 1 • ISS 9 August 2017
IP Devices

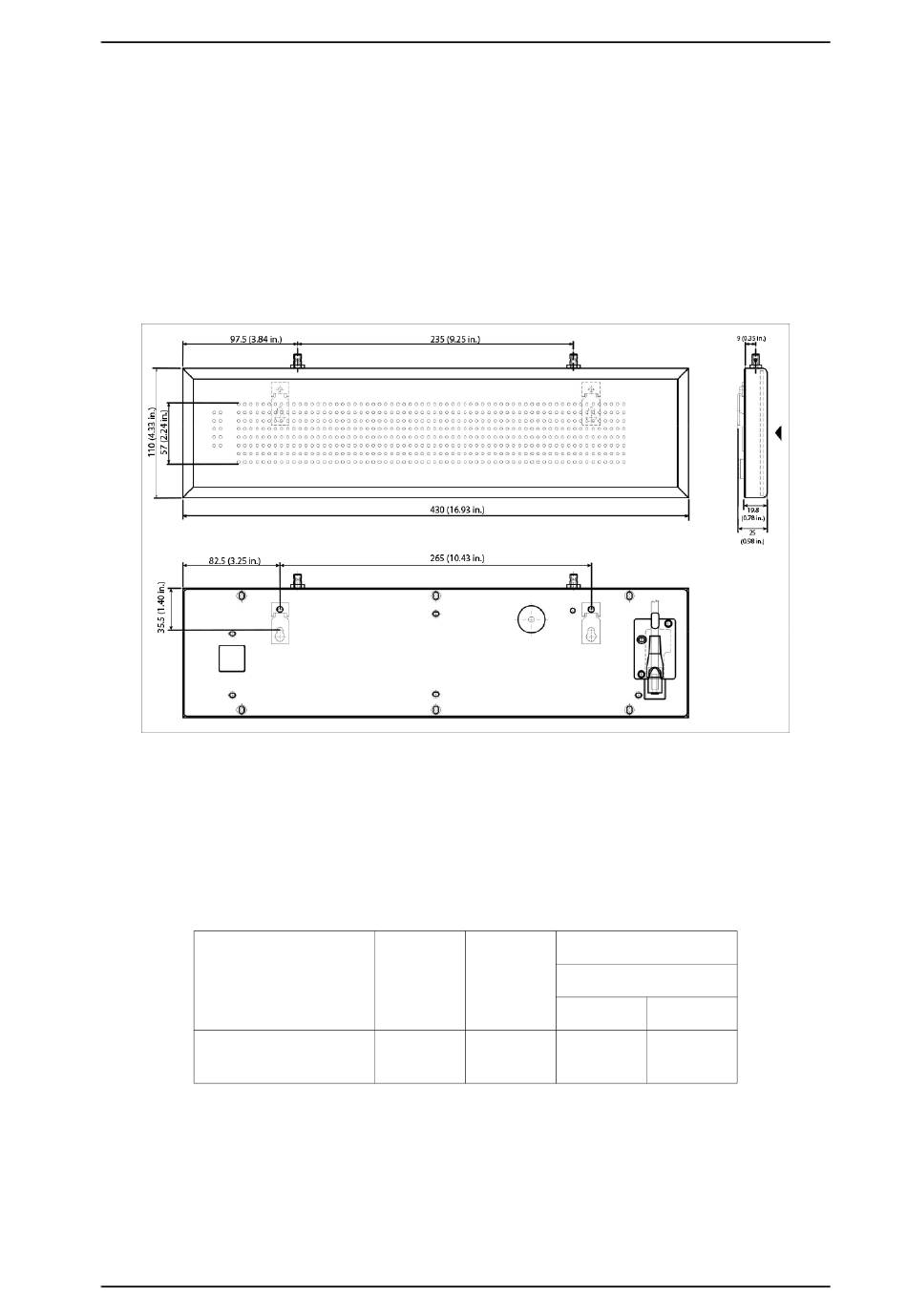

Figure 35 Corridor display dimensions
Table 8 Corridor display power requirements
PoE type PoE Class
PoE
(802.3af)
Power Consumption
PoE Supply
42VDC
Class 2 6W
< 6.49W 0.14A
57VDC
6W
0.11A
