To mount a spacer to a wall:
1. Place the spacer against a flat wall and orient it so that
"TOP" (printed on the inside of the spacer) is pointing up
and that the spacer is level. Use a leveling device to check,
if necessary.
2. Using the spacer as a template, mark two holes for the
screws using the outer fitting holes located in the corners
of the spacer.
3. Remove the spacer and drill screw holes for the screws
that will be used, such as wood, concrete, or drywall
screws, or screws with anchors.
4. Remove the knock outs in the spacer for the cable wires.
5. Place the spacer over the holes, insert the screws, and then
tighten.
6. Pull the cables though the knock out holes.

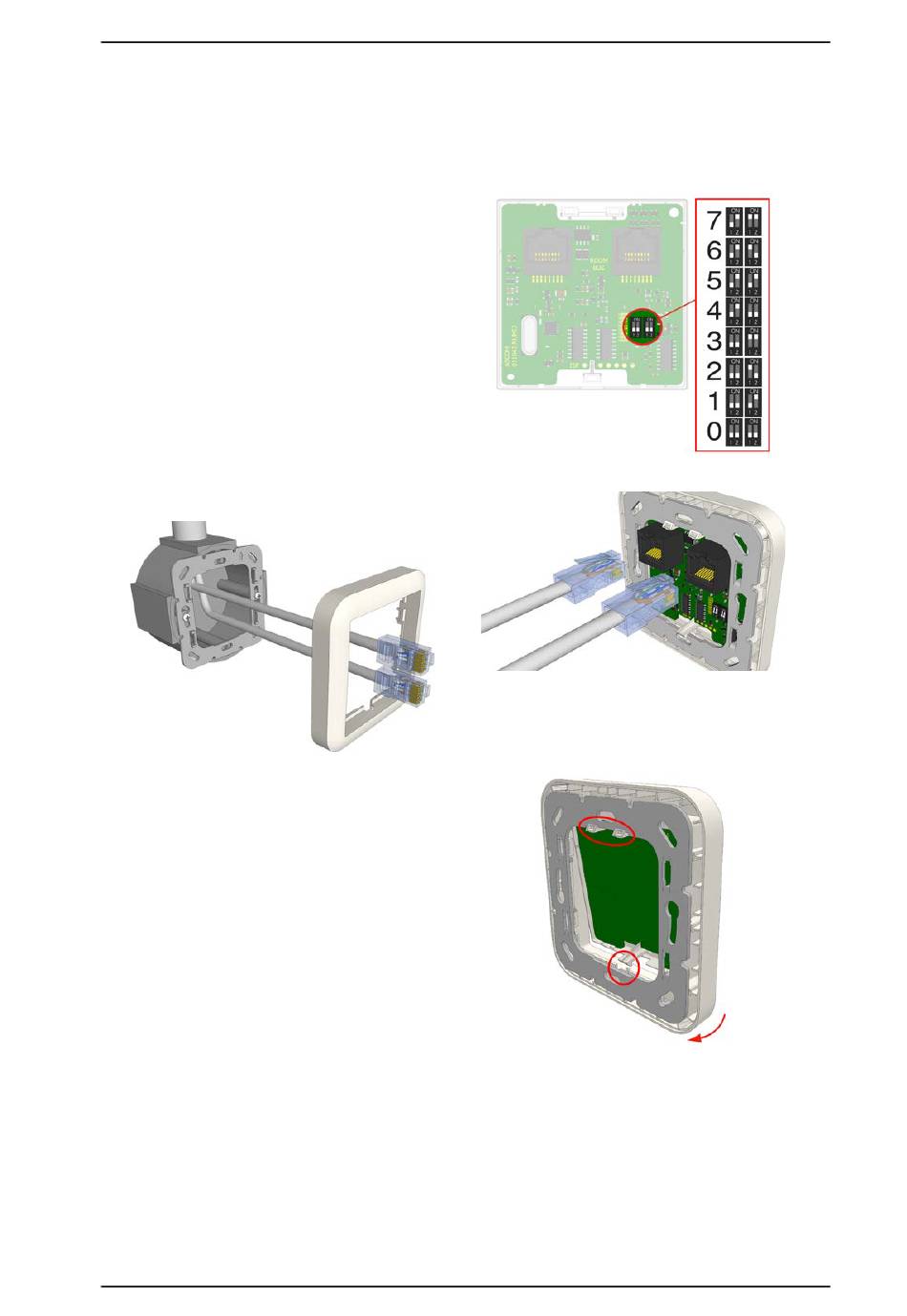

To make the connections to the module:
1. Pull the cables from the backbox or spacer, and then slide
them though the module's frame.
Note: When attaching RJ-45 connectors to the module,
use caution not to strain the connectors. If the cables
are too stiff to fit in the backbox, remove up to 15cm
(6in.) of the cable(s) jacket.
P/N PM000158A • Rev. 1.0 • ISS 12JUNE2017
xxx
P/N PM000223A • Rev. 1 • ISS 9 August 2017
Room Modules
2. Set the DIP Switch to the correct bed address (0...7).
3. Connect RJ-45 connectors to the module.
To attach the module on the adapter:
1. Place the module against the frame, ensuring that the
module is facing up.
2. Place the module's upper snap fasteners against the upper
edge of the adapter.
