Removal
Follow the steps below to remove the NUCL4P-H light from
the backplate.
Note: Failure to follow the proper removal procedure may
result in damage to the light.

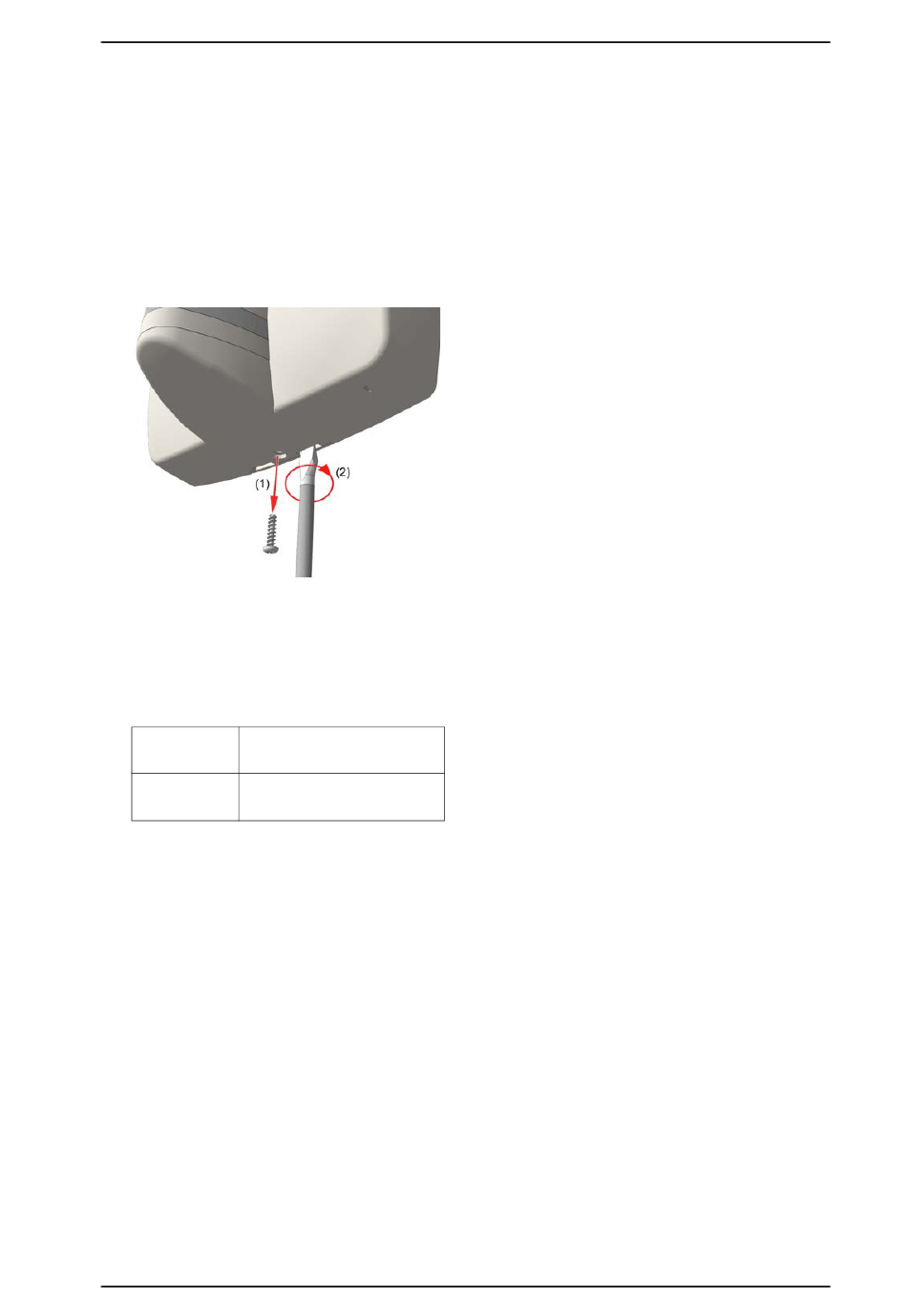

To remove the light from the backplate:
1. Remove the locking screw from the bottom of the light.
2. Insert a 6mm flat-blade screwdriver into the notch at the
bottom of the light, and then apply light upward pressure.
3. Gently twist the screwdriver to disengage the light from
the backplate. Do not use excessive force while twisting.
4. Remove the light from backplate.
Specifications
Cat 5/5e/6/7, U/UTP terminated with
Wire/terminations 8-pole block connectors (not
included)
European Union, United Kingdom:
Compatible back
Standard plastic or metal back box
boxes
with mounting holes 60mm (2.36in.)
