The preferred color coding for the cable is shown in the following table. We highly
recommend that you follow this color scheme in your installation.
Table 4 8-pole block connector pin-out (termination is identical on both ends)
Pin # Pin
1 +V
2 R
3 L_RD
4 S
5 C
6 L_GR
7 L_YL
8 GND

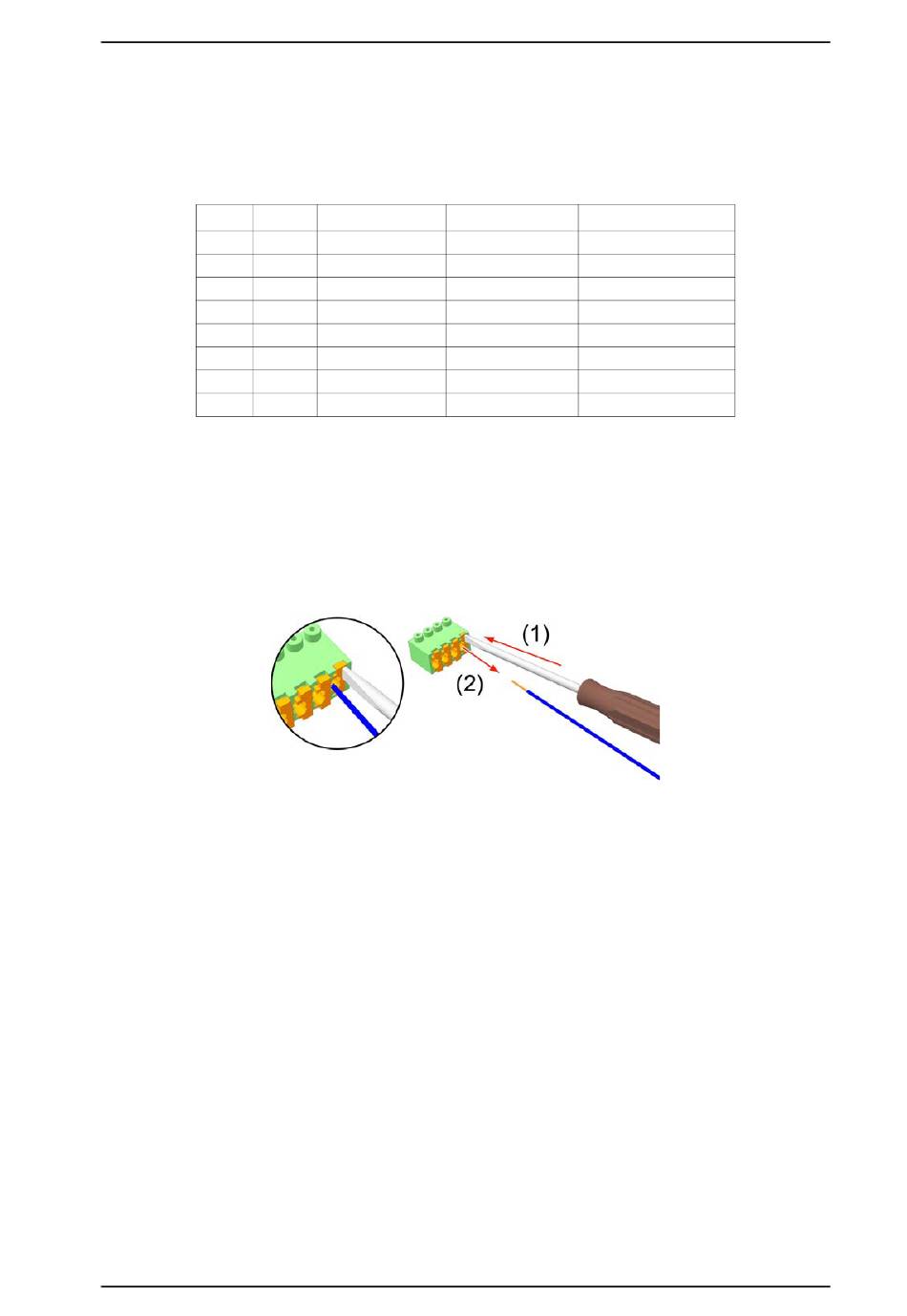

2.4.4 Disconnecting a Wire from a Block Connector

To disconnect a wire from a block connector:
1. Carefully place the point of a small screw driver (point approximately 2.5mm wide) on
the relevant orange colored release key of the connection terminals.
2. Firmly push in the key to open the spring-cage connector. See item 1 below.
3. With the release key pressed in, pull the wire from the block. See item 2.
4. Remove the screw driver.
P/N PM000223A • Rev. 1 • ISS 9 August 2017
System Cabling
Description Color
Positive power White/Orange
Reset Orange
LED Red White/Blue
Set Blue
C-line White/Green
LED Green Green
LED Yellow White/Brown
Ground Brown
Color Abbreviation
OGWH
OG
BUWH
BU
GNWH
GN
BNWH
BN
14
