NUBM3 Customizable Bedside Module

NUBM3 Customizable Bedside
Module Installation Sheet
Description
The NUBM3 Customizable Bedside Module is a wall-
mounted device that is suitable for general room
applications. The module connects to an active room bus
and is typically mounted near a bed.

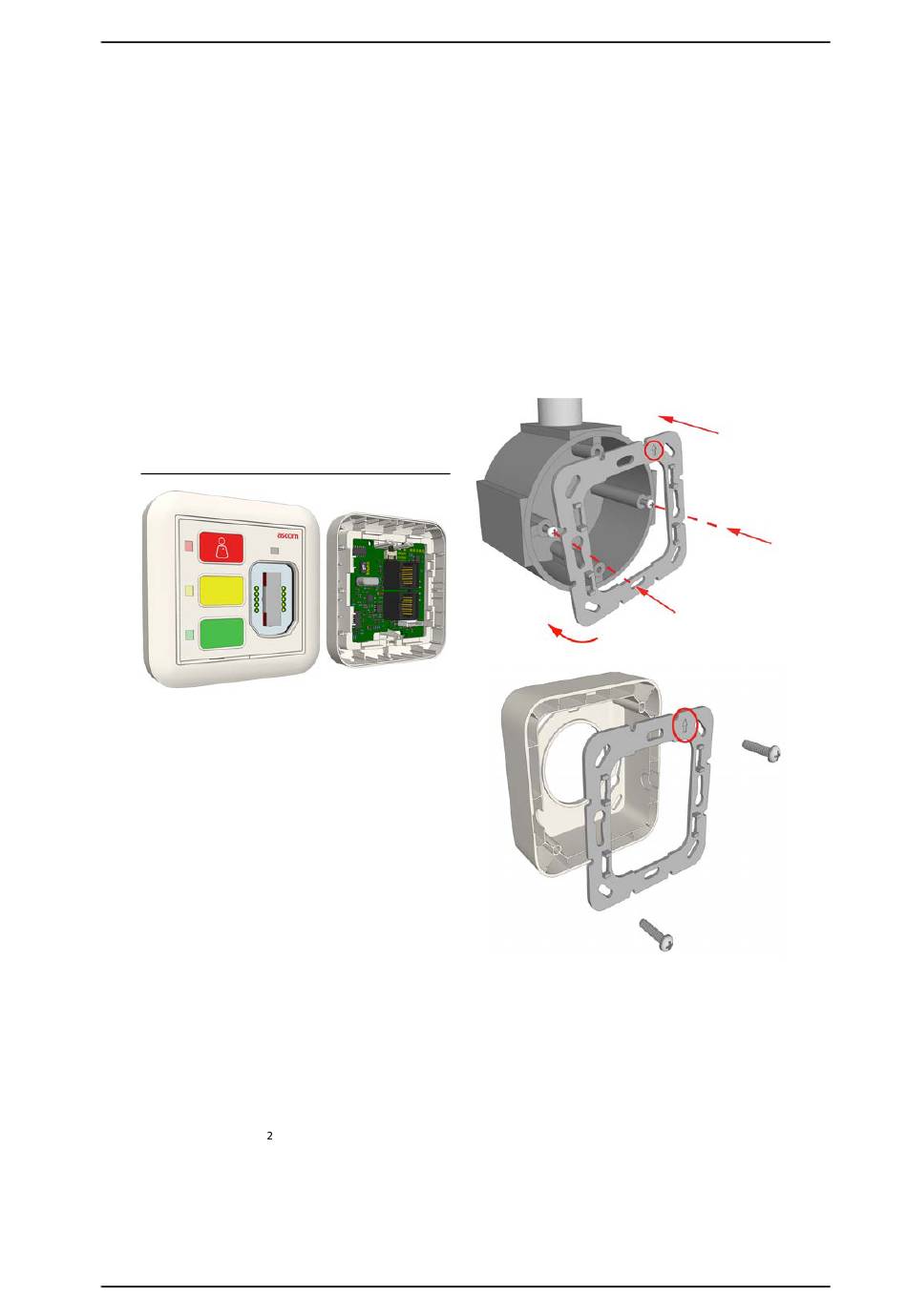

Customizable Bedside Module (Front and Back)
Installation
Note: Before beginning the installation, ensure all the
necessary cables are available and are properly
terminated. RJ-45 connectors should be terminated in
accordance with the T568B or EIA 568B connection
standard.
The module can mount to a backbox, or to a wall by using
a surface-mounting spacer (NUSP1-HE).
To mount the module on a backbox or spacer:
1. When using a backbox, loosen the screws on the
backbox so that approximately 5mm extend out from
the backbox and the head s of the screws can pass
though the key-hole slots of the adapter plate.
P/N PM000192A • Rev. .0 • ISS 23JUN2017
P/N PM000223A • Rev. 1 • ISS 9 August 2017
Room Modules
When using a spacer, ensure the spacer is properly mounted
to the wall and that the adapter screws are available.
2. Place the adapter (with the arrow facing up) over the
backbox or spacer and ensure that it is level.
3. Tighten the screws.
4. Pull the cables from the backbox or spacer though the
adapter.
