The second ball (lower) weights the pull cord and allows the
cord to be grabbed easily.
The upper half of the pull cord comes already attached to the
pull cord module. The lower half of the cord can be connected
to the upper half by clicking the two halves of the breakaway
ball.
Assembling and Attaching the Pull Cord
To attach the pull cord assembly:
1. Ensure that the pull cord module is properly mounted to
the wall and that all cable connections have been made.
2. Adjust the length of the cord by pulling the cord through
the hole in the bottom half of the breakaway ball, and
then retying the knot in the cord. See the figure above,
item 1.

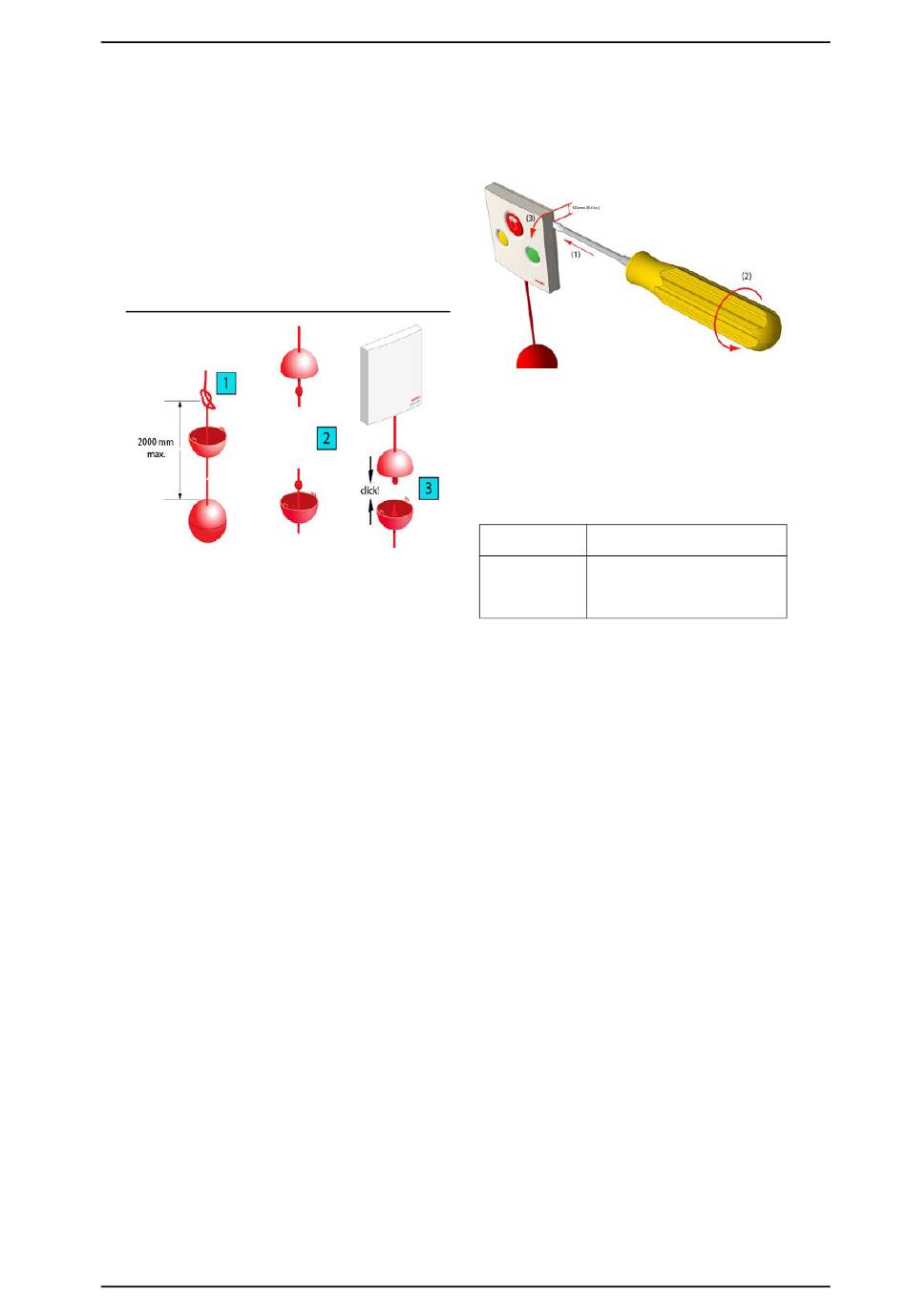

3. Align the two halves of the breakaway ball so that the
edges are touching, and then press them until they click
together. See Figure above items 2 and 3.
4. Extend the cord to its full length, and then allow it to hang
freely from the pull cord module.
Removal
When separating the module from a backplate or spacer, use
a screwdriver with a 6mm blade.
To remove the module from a backplate or spacer:
1. Insert the screwdriver into the groove on the side of
the module, approximately 10mm (0.4in.) from the top
of the module (left or right side). See Item 1 in the
following figure.
Note: Do not insert the screwdriver into the bottom of the
module.
P/N PM000205A • Rev. 2 • ISS 16MAY2017
P/N PM000223A • Rev. 1 • ISS 9 August 2017
Room Modules
2. Gently push the screwdriver between the module
and the backplate.
3. Twist the screwdriver until the module releases
from the backplate.
4. Disconnect the 4-pole connector from the terminal.
Specifications
Cat 5/5e/6/7, U/UTP terminated
Wire/terminations
with 4-pole connector
European Union, United Kingdom:
Compatible back Standard plastic or metal back box
boxes
with mounting holes 60mm
(2.36in.)
3 of 3
