NGTDSP and NGWDSP Touch Screen Display

NGTDSP-H and NGWDSP-H Touch
Screen Display Installation Sheet
Description
The touch screen display audibly alerts and visually displays
system events and voice calls generated by the nurse call
system. The touch screen display can be used as a wall-mounted
device or can be mounted on an articulating pedestal and placed
on a desktop.

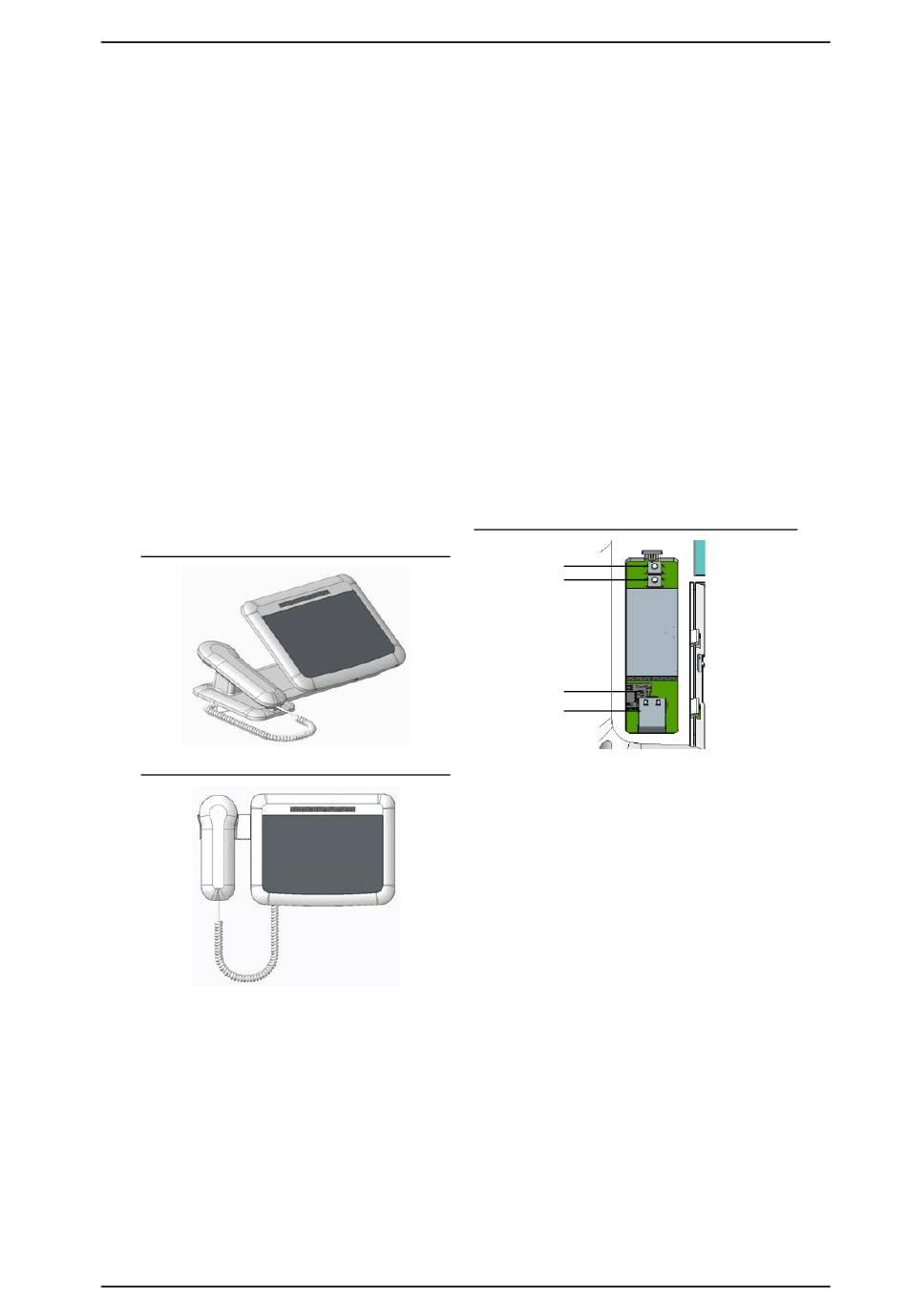

Desktop touch screen display (NGTDSP-H)
Wall-mounted touch screen display with handset (NGWDSP-H)
Note: For details on using the display screen, refer to the
Telligence Operation Manual.
P/N PM000223A • Rev. 1 • ISS 9 August 2017
IP Devices
Access Panel
The access panel located on the left side of the back of the display
allows users to manually reset the station and manually add and
retrieve data from the device.
Access panel
Mode (Reserved)
Reset Switch
microSD
Memory Card
USB Device Port
The Reset switch restarts the device without changing settings.
The microSD memory card is used to store a device ID that can
enable easy replacement of a failed unit.
The USB device port is used by Ascom Technical Services to capture
system event logs.
