Installation Manual
NU-Series Hardware

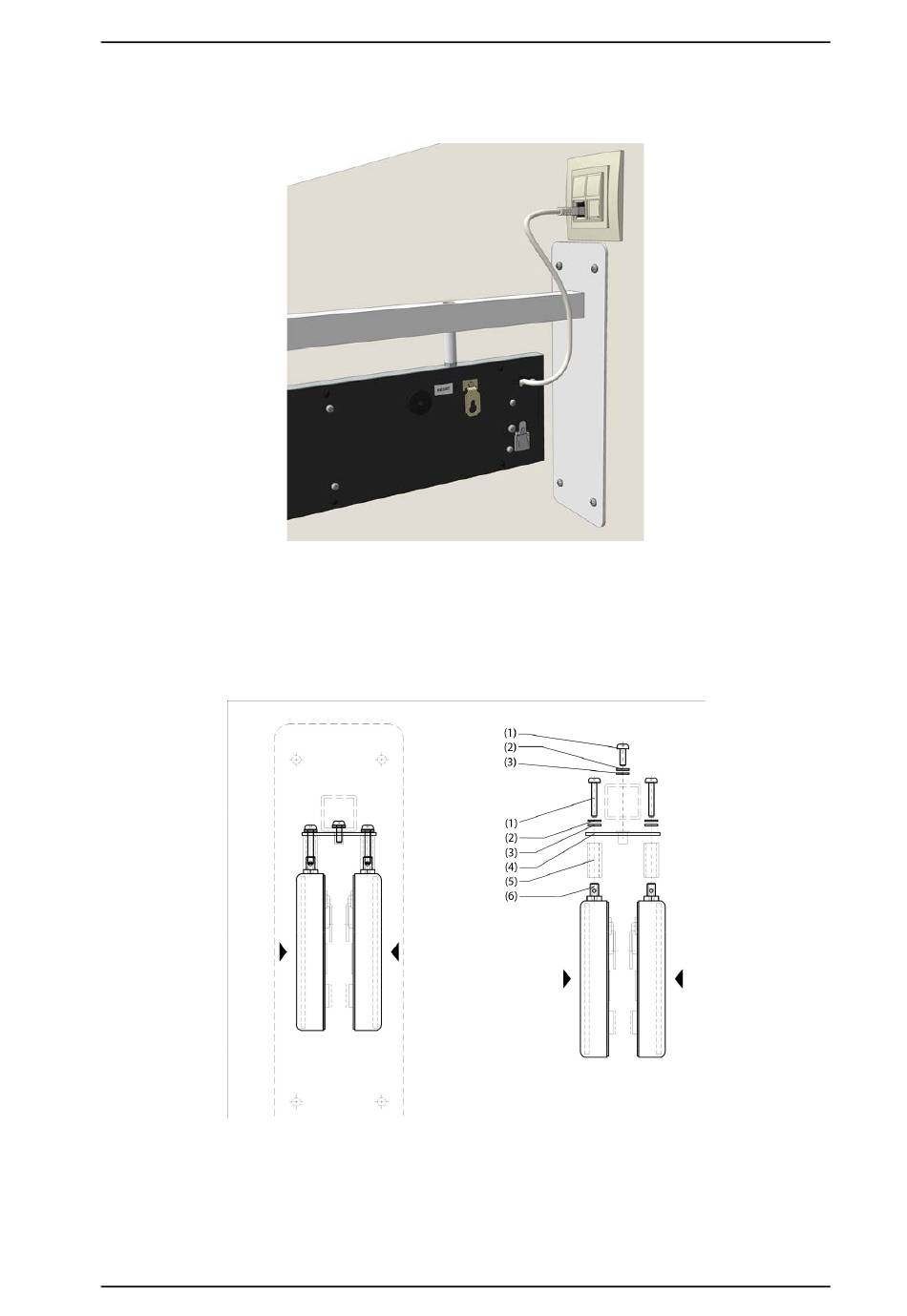

4. Connect the Ethernet cable from the corridor display to the Ethernet outlet.
Mounting Double Displays on a Bracket
Mount two single-sided corridor displays (back to back) onto the wall mounting bracket
using the cross-mount plate to create a double-sided display. Use the mounting
accessories for a double display that are included with the wall mounting bracket. When
mounting two displays, you must use two PoE cables to address each display.
Legend:
(1) M4x12 Bolt
(2) Serrated washer
(3) Plain washer
P/N PM000223A • Rev. 1 • ISS 9 August 2017
IP Devices
Figure 41 Wall mounting bracket - double display
(4) Cross mount
(5) Tube stem
(6) Display fastener
50
