To attach the pull cord assembly:
1. Ensure that the pull cord module is properly mounted to
the wall and that all cable connects have been made.
2. Adjust the length of the cord by pulling the cord through
the hole in the bottom half of the breakaway ball, and
then retying the knot in the cord. See Figure above,
item 1.
3. Align the two halves of the breakaway ball so that the
edges are touching, and then press them until they click
together. See Figure above items 2 and 3.
4. Extend the cord to it's full length, and then allow it to hang
freely from the pull cord module.
Removal

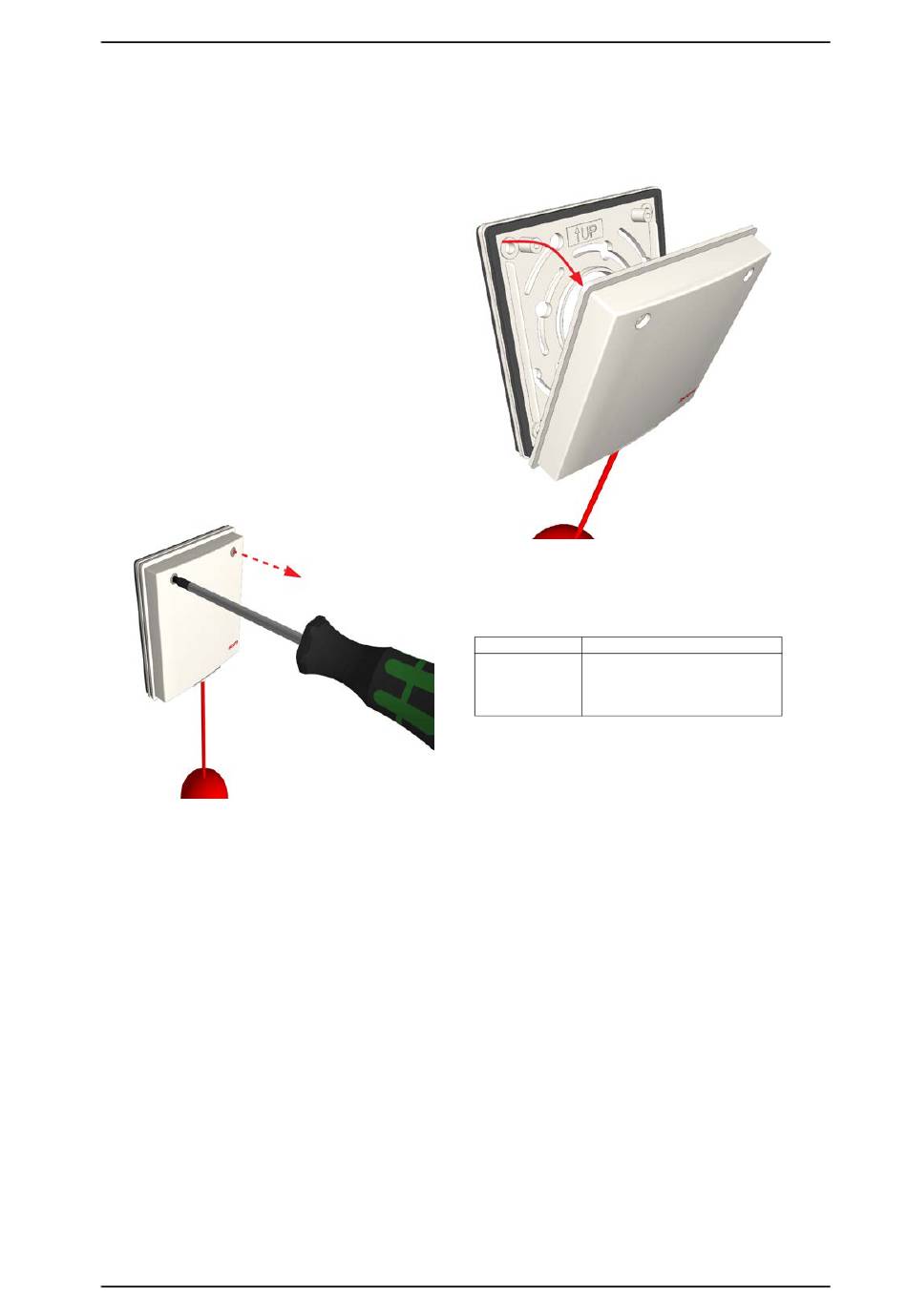

To remove the module from a backplate or spacer:
1. Remove two T8 Torx screws from the module.
Note: Do not insert a screwdriver into the bottom of
the module.
2. Tilt module forward from top.
4 of 4
P/N PM000223A • Rev. 1 • ISS 9 August 2017
Room Modules
3. Disengage the module from two lower clips.
4. Disconnect the 4-pin connector from the terminal.
Specifications
Wire/terminations 4-pin connector.
European Union, United Kingdom:
Compatible
Standard plastic or metal back box
electrical boxes with mounting holes: 60mm
(2.36in.).
