Installation Manual
NU-Series Hardware
Mounting a Single Display on a Bracket
Use the mounting accessories for a single display that are included with the wall mounting
bracket.
To mount single display to the wall mounting bracket:
1. Ensure that the LAN cable is connected to the corridor display. See
the LAN Cable" on page
2. Remove the two hex screws at the top of the display using a hex key.
3. Use the included accessories to mount the display on the bracket, as shown in the
figure below.
P/N PM000223A • Rev. 1 • ISS 9 August 2017
IP Devices
43.

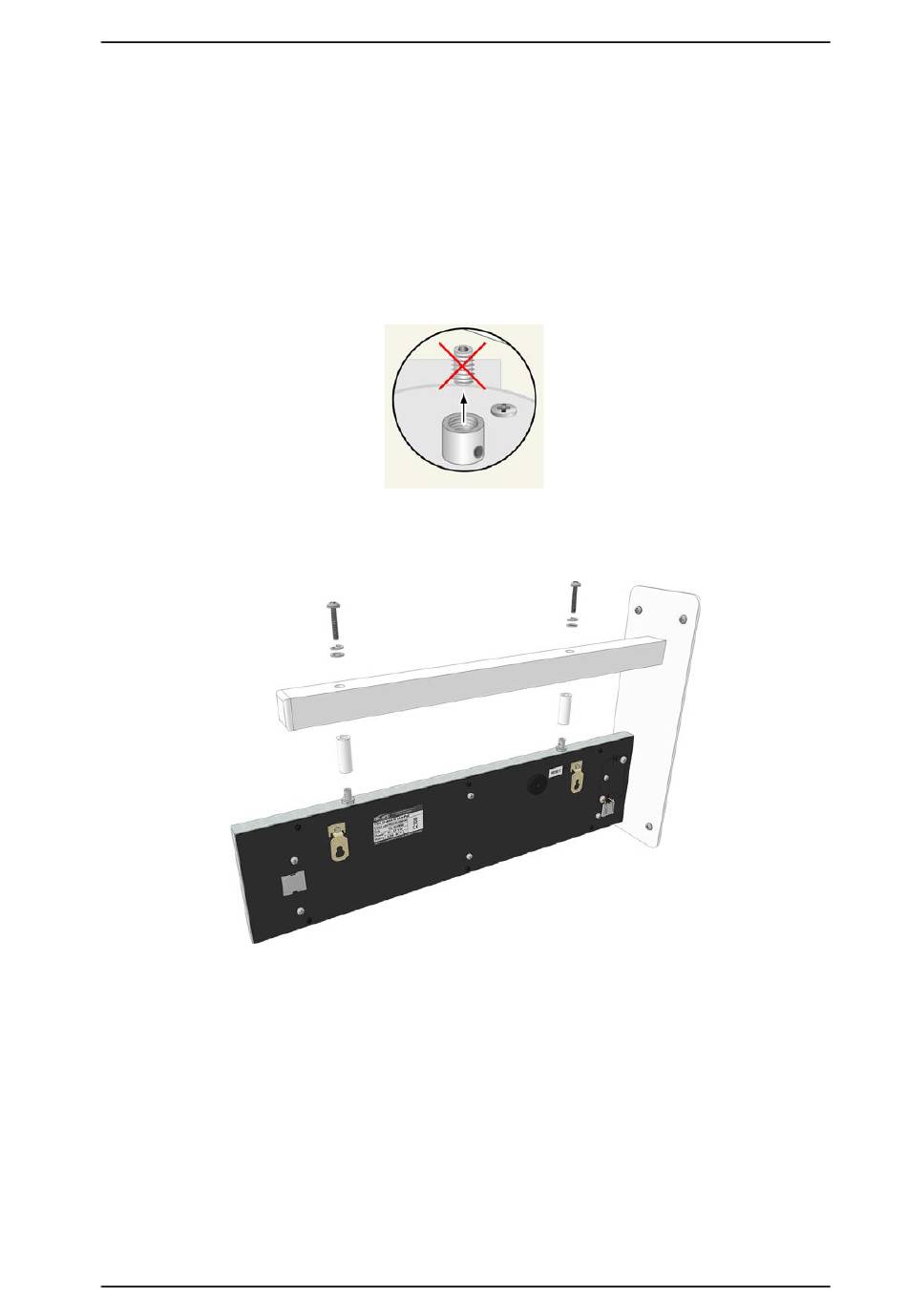

Figure 40 Mount the display on the bracket
"5.4.5, Connecting
49
