Installation Manual
NU-Series Hardware
The color coding for the cable is shown in this table:
2.7
Migrating teleCARE M to Telligence
The Telligence system supports NU-Series passive modules and teleCARE M passive
modules; however, you must consider the power requirements. The NU-series modules
use 5.5VDC power, while the teleCARE M modules use 24VDC power. Use care when
replacing IAM modules with NUPBC modules during the migration to the Telligence
system.
Warning: All modules connected to the NUPBC shall be of the same series of
modules.Connecting NU-series modules to an NUPBC that is powered by 24VDC will
cause damage to the NU-series modules.
When migrating from a system with legacy teleCARE M passive modules to a system
containing the NU-series passive modules, follow the steps below.
P/N PM000223A • Rev. 1 • ISS 9 August 2017
System Cabling
Table 6 Active room bus cable coloring
Pin #
Description
1
Ground
2
Mic (Tx)
3
Ground
4
Data a
5
Data b
6
Speaker (Rx)
7
+5.5V
8
+5.5V

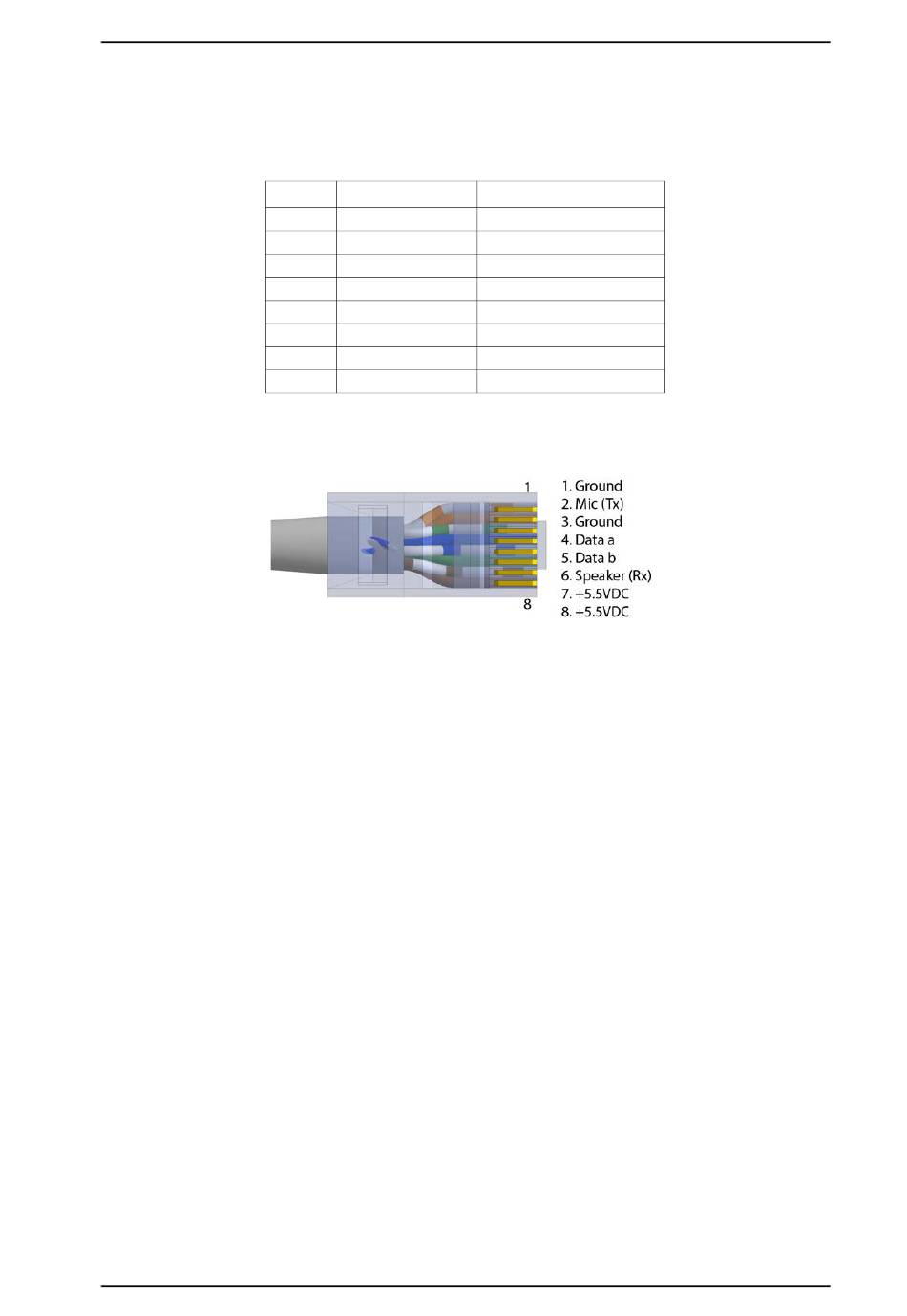

Figure 17 Active Room Bus connections
Color
White/Orange
Orange
White/Green
Blue
White/Blue
Green
White/Brown
Brown
19
