Installation Manual
NU-Series Hardware
4. Connect the Ethernet cables from the corridor displays to the Ethernet outlet.
5.4.6.3 Mounting the Corridor Display Directly on a Wall
The corridor display can be mounted directly to a flat wall surface using two screws (not
included). When mounting to a wall, be sure to use screws that can adequately support
the weight of the display.

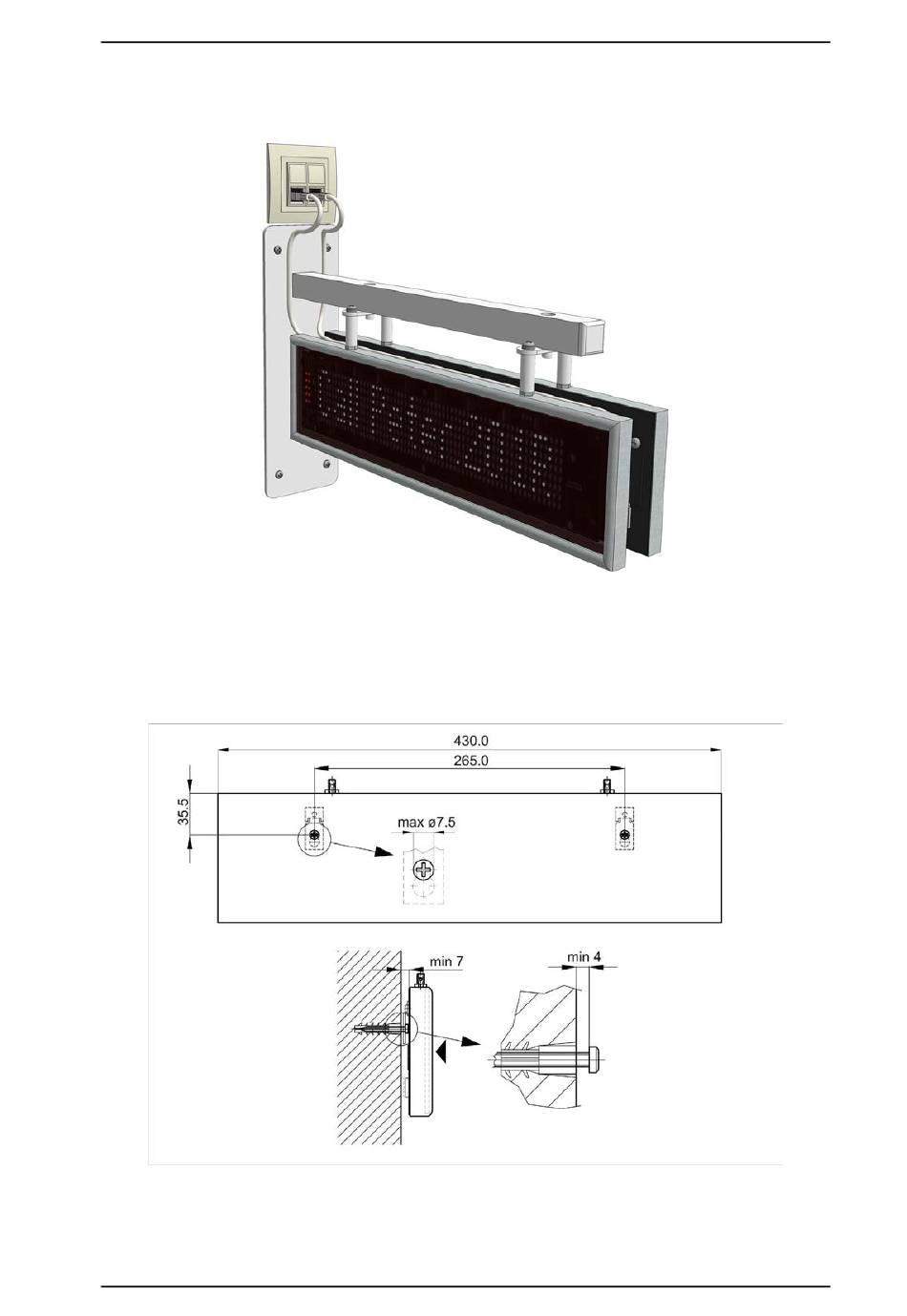

Figure 42 Dimensions for mounting the display on a wall
P/N PM000223A • Rev. 1 • ISS 9 August 2017
IP Devices
52
