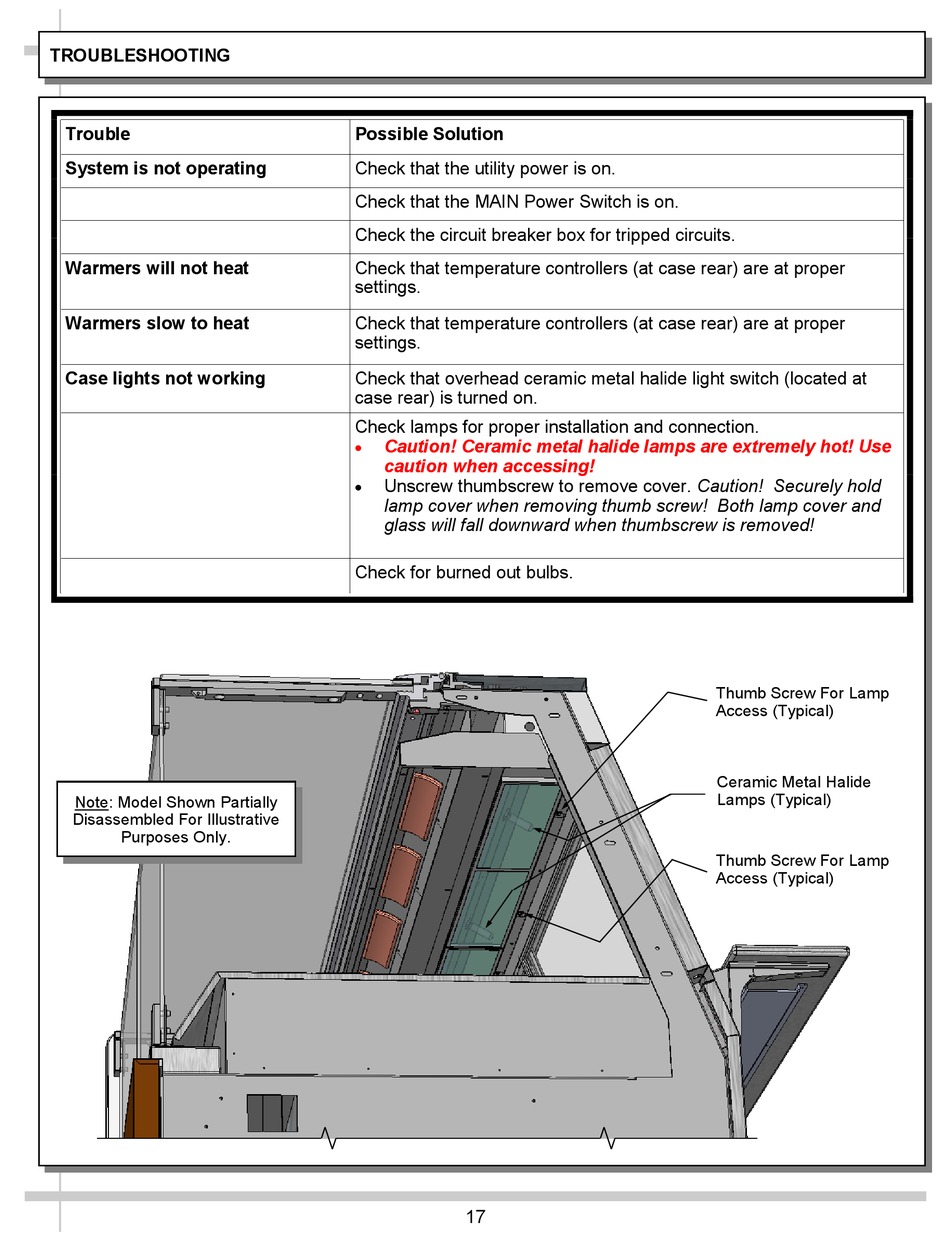

TROUBLESHOOTING

Trouble
System is not operating
Warmers will not heat
Warmers slow to heat
Case lights not working
Note: Model Shown Partially
Disassembled For Illustrative
Purposes Only.
Possible Solution
Check that the utility power is on.
Check that the MAIN Power Switch is on.
Check the circuit breaker box for tripped circuits.
Check that temperature controllers (at case rear) are at proper
settings.
Check that temperature controllers (at case rear) are at proper
settings.
Check that overhead ceramic metal halide light switch (located at
case rear) is turned on.
Check lamps for proper installation and connection.
Caution! Ceramic metal halide lamps are extremely hot! Use
caution when accessing!
Unscrew thumbscrew to remove cover. Caution! Securely hold
lamp cover when removing thumb screw! Both lamp cover and
glass will fall downward when thumbscrew is removed!
Check for burned out bulbs.
17
Thumb Screw For Lamp
Access (Typical)
Ceramic Metal Halide
Lamps (Typical)
Thumb Screw For Lamp
Access (Typical)
