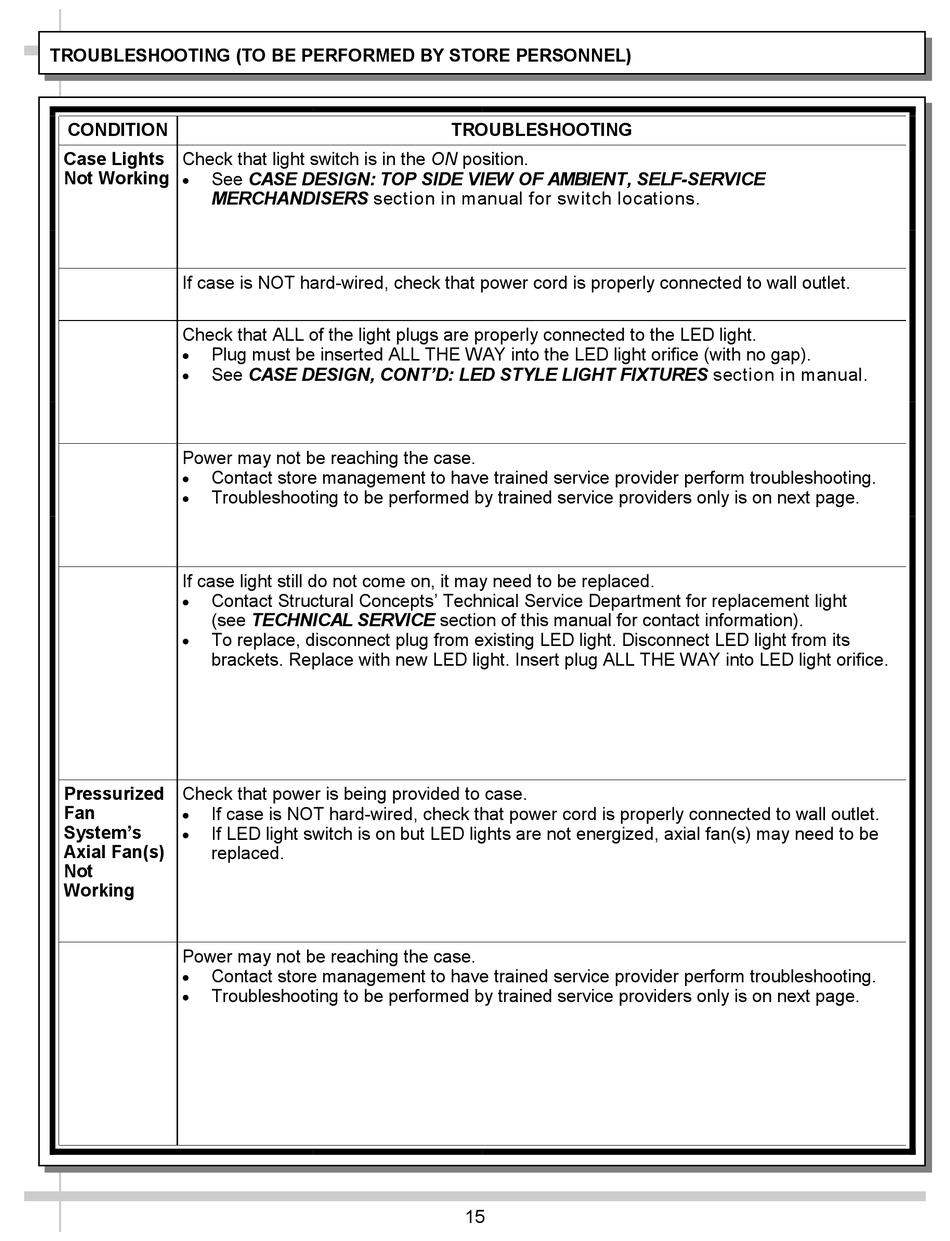

TROUBLESHOOTING (TO BE PERFORMED BY STORE PERSONNEL)

CONDITION
Case Lights Check that light switch is in the ON position.
Not Working
 See CASE DESIGN: TOP SIDE VIEW OF AMBIENT, SELF-SERVICE
MERCHANDISERS section in manual for switch locations.
If case is NOT hard-wired, check that power cord is properly connected to wall outlet.
Check that ALL of the light plugs are properly connected to the LED light.
 Plug must be inserted ALL THE WAY into the LED light orifice (with no gap).
 See CASE DESIGN, CONT'D: LED STYLE LIGHT FIXTURES section in manual.
Power may not be reaching the case.
 Contact store management to have trained service provider perform troubleshooting.
 Troubleshooting to be performed by trained service providers only is on next page.
If case light still do not come on, it may need to be replaced.
 Contact Structural Concepts' Technical Service Department for replacement light
(see TECHNICAL SERVICE section of this manual for contact information).
 To replace, disconnect plug from existing LED light. Disconnect LED light from its
brackets. Replace with new LED light. Insert plug ALL THE WAY into LED light orifice.
Pressurized Check that power is being provided to case.
Fan  If case is NOT hard-wired, check that power cord is properly connected to wall outlet.
System's
 If LED light switch is on but LED lights are not energized, axial fan(s) may need to be
Axial Fan(s)
replaced.
Not
Working
Power may not be reaching the case.

Contact store management to have trained service provider perform troubleshooting.
 Troubleshooting to be performed by trained service providers only is on next page.
TROUBLESHOOTING
15
