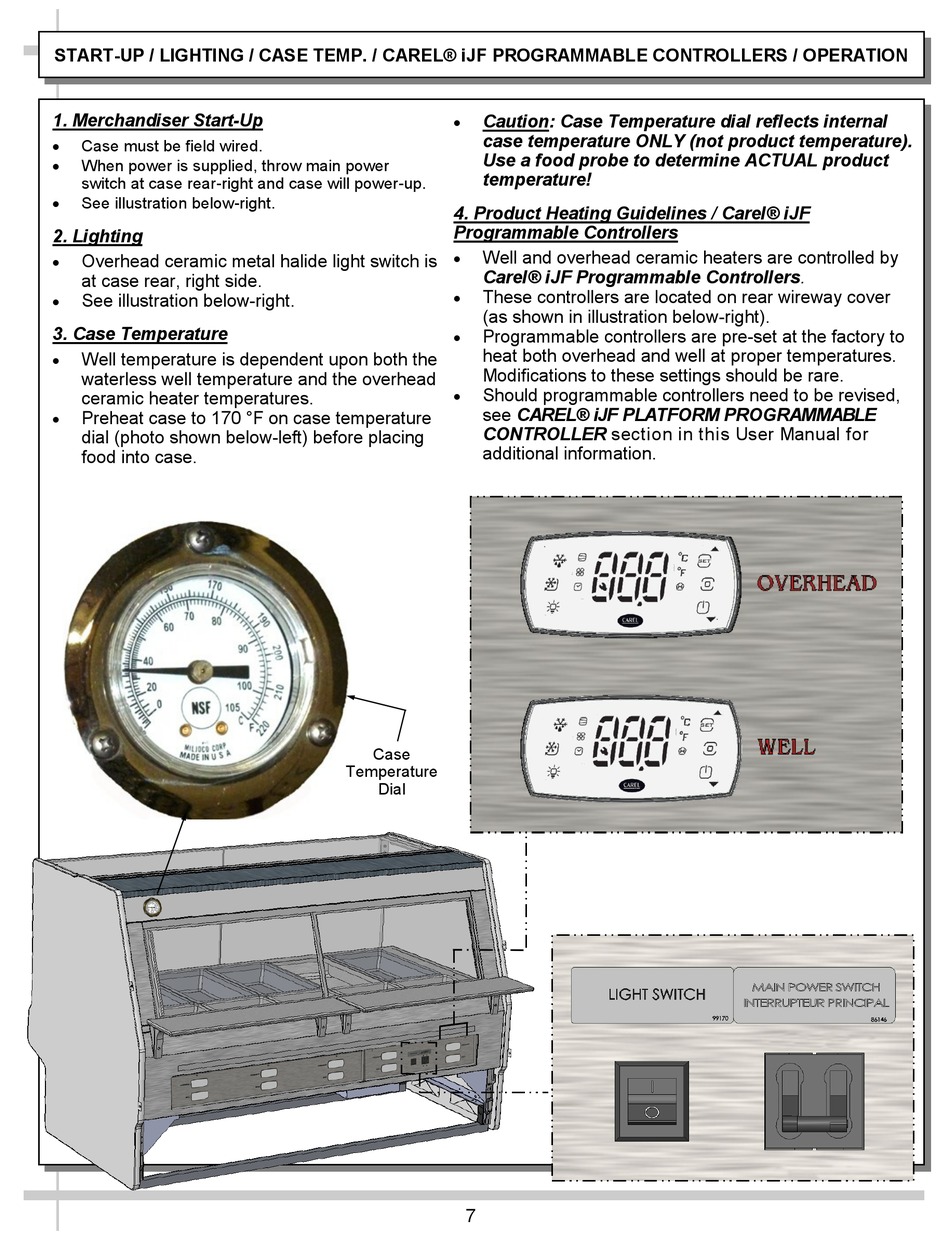

START-UP / LIGHTING / CASE TEMP. / CAREL® iJF PROGRAMMABLE CONTROLLERS / OPERATION
1. Merchandiser Start-Up
Case must be field wired.
When power is supplied, throw main power
switch at case rear-right and case will power-up.
See illustration below-right.
2. Lighting
Overhead ceramic metal halide light switch is
at case rear, right side.
See illustration below-right.
3. Case Temperature
Well temperature is dependent upon both the
waterless well temperature and the overhead
ceramic heater temperatures.
Preheat case to 170 °F on case temperature
dial (photo shown below-left) before placing
food into case.
Caution: Case Temperature dial reflects internal
case temperature ONLY (not product temperature).
Use a food probe to determine ACTUAL product
temperature!
4. Product Heating Guidelines / Carel® iJF
Programmable Controllers
Well and overhead ceramic heaters are controlled by
Carel® iJF Programmable Controllers.
These controllers are located on rear wireway cover
(as shown in illustration below-right).
Programmable controllers are pre-set at the factory to
heat both overhead and well at proper temperatures.
Modifications to these settings should be rare.
Should programmable controllers need to be revised,
see CAREL® iJF PLATFORM PROGRAMMABLE
CONTROLLER section in this User Manual for
additional information.
Case
Temperature
Dial
