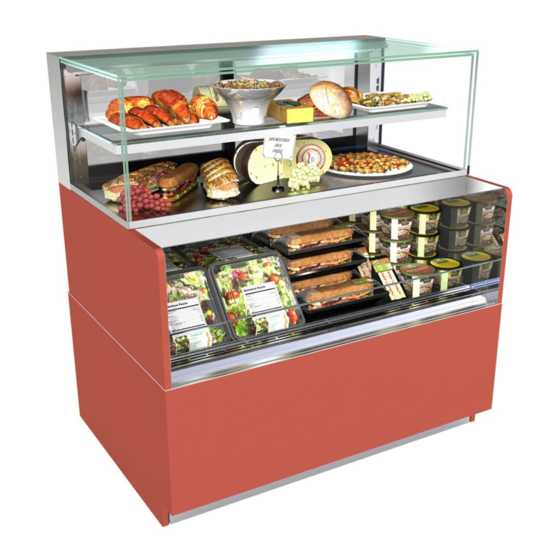

REVEAL® FREE STANDING OVER-UNDER REFRIGERATED COMBO MERCHANDISERS
> CONVERTIBLE UPPER SECTION MAY BE EITHER AMBIENT OR REFRIGERATED
> REFRIGERATED LOWER SECTION
> SELF-CONTAINED OR REMOTE UNITS
> UPPER SECTION: REAR SLIDING DOORS
> OPTIONAL RISERS (IN LIEU OF SHELVING)
> LOWER SECTION: REAR SLIDING DOORS WITH
PERFORATED ACRYLIC PLENUMS OR SOLID BACK PANELS
> CAUTION! DO NOT PUSH OR PULL ON UPPER GLASS ENCLOSURE!
> ONLY USE HANDLES (AT EACH END OF CASE) TO PUSH OR PULL CASE INTO POSITION!
USER MANUALS\20-78347_REVEAL_USER MANUAL_NR(L)(H)RRSSV_REF_COMBO_OVER-UNDER_CASE
READ AND SAVE THESE INSTRUCTIONS
®
Reveal® Model
NR4838RRSSV
Rear Sliding Doors
and Acrylic Perforated
Plenums / Cladding
Shown Attached
Structural Concepts Corp. ∙ 888 E. Porter Rd ∙ Muskegon, MI 49441 Phone: 231.798.8888 Fax: 231.798.4960 ∙ www.structuralconcepts.com
USER
MANUAL
Models Are Shipped WITHOUT
Panels and Cladding Attached.
See Pages 10 & 11 For Component
Attachment Instructions.
Reveal® Model NR3631RRSSV /
Rear Sliding Doors and Acrylic
Perforated Plenums / Shown As
Shipped From Factory (Without
Components) / Rear Slide-Out
Access To Condenser Package
Reveal® Model NR3631RRSSV
Self-Service Solid Back Rear Panel
Optional Product Steps / Shown As
Shipped From Factory (Without
Components) / Front Slide-Out
Access To Condenser Package
SCC P/N
20-78347
REV N DATE: 06/27/2023
