WARNING
NOTE
Figure 1-6
drives and CD-ROM
accompanies each SCSI device for specific information concerning its use.
Refer to the appendix "SCSI Connections" for information about
connecting SCSI devices to your computer.
Do not attach FWD SCSI devices to the LVD SCSI port, or
damage will occur.
When attaching external SCSI devices, be sure to terminate the last
device on each external SCSI bus. The terminators are included in a
small plastic bag that was shipped with your machine. Before powering
up your computer, make sure that the last external SCSI device in each
SCSI chain has a terminator.
If you have no external SCSI devices, install the terminators directory on
the connectors on the rear panel of the computer.

Power Cord Connectors

Plug the workstation's power cord into the power cord connector to
provide AC power to the system. Note that the HP V
J7xxx have different types of power cords, because of their differing
power requirements:

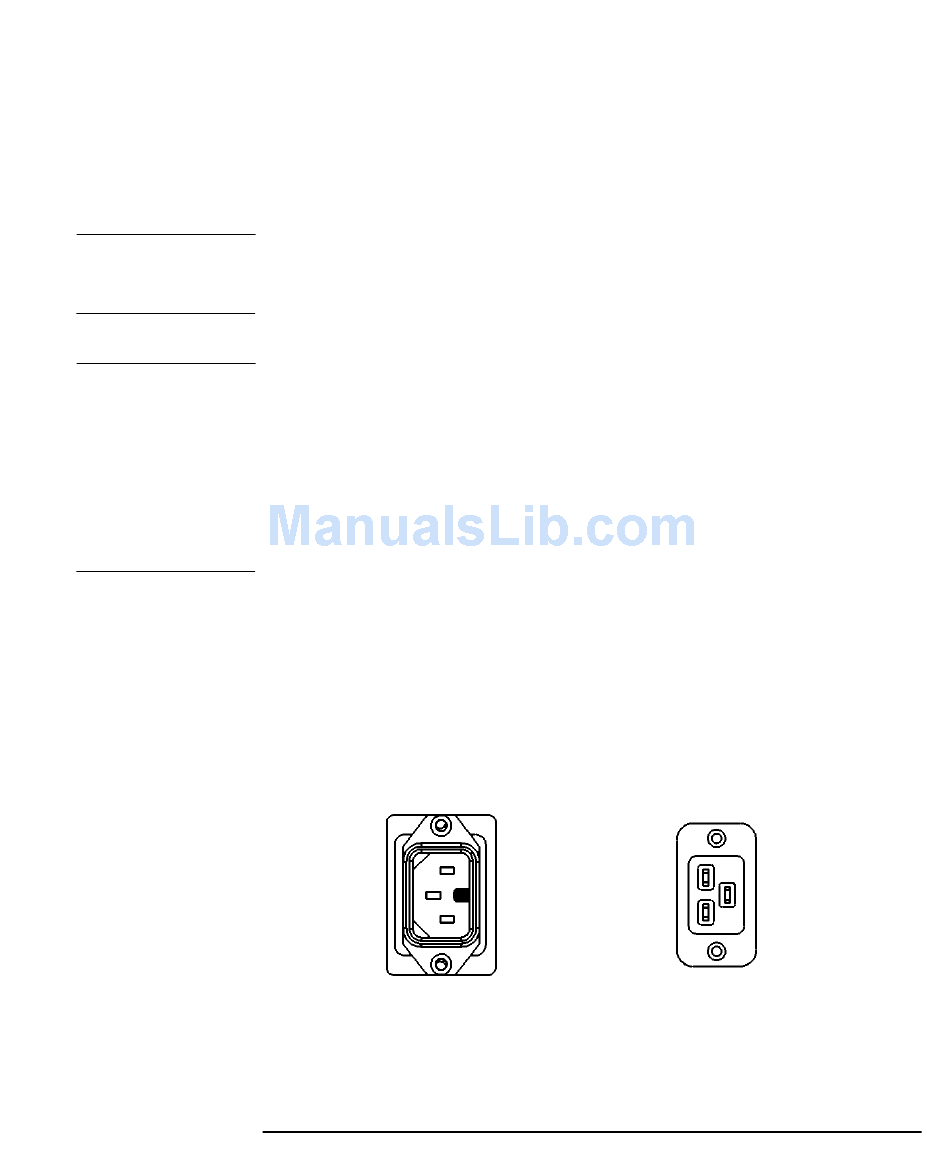

Power Connectors
The power connector on the left is used on the J5xxx (notice that it is a
keyed connector, requiring a 15-amp circuit), and the one on the right is
used on the J7xxx because of its greater power demand (20 amps).
Chapter 1
System Unit Rear Panel Connectors
drives. Consult the
System Overview
documentation that
J5xxx and
ISUALIZE
27
