120 ADJUSTMENT

MIRRORS

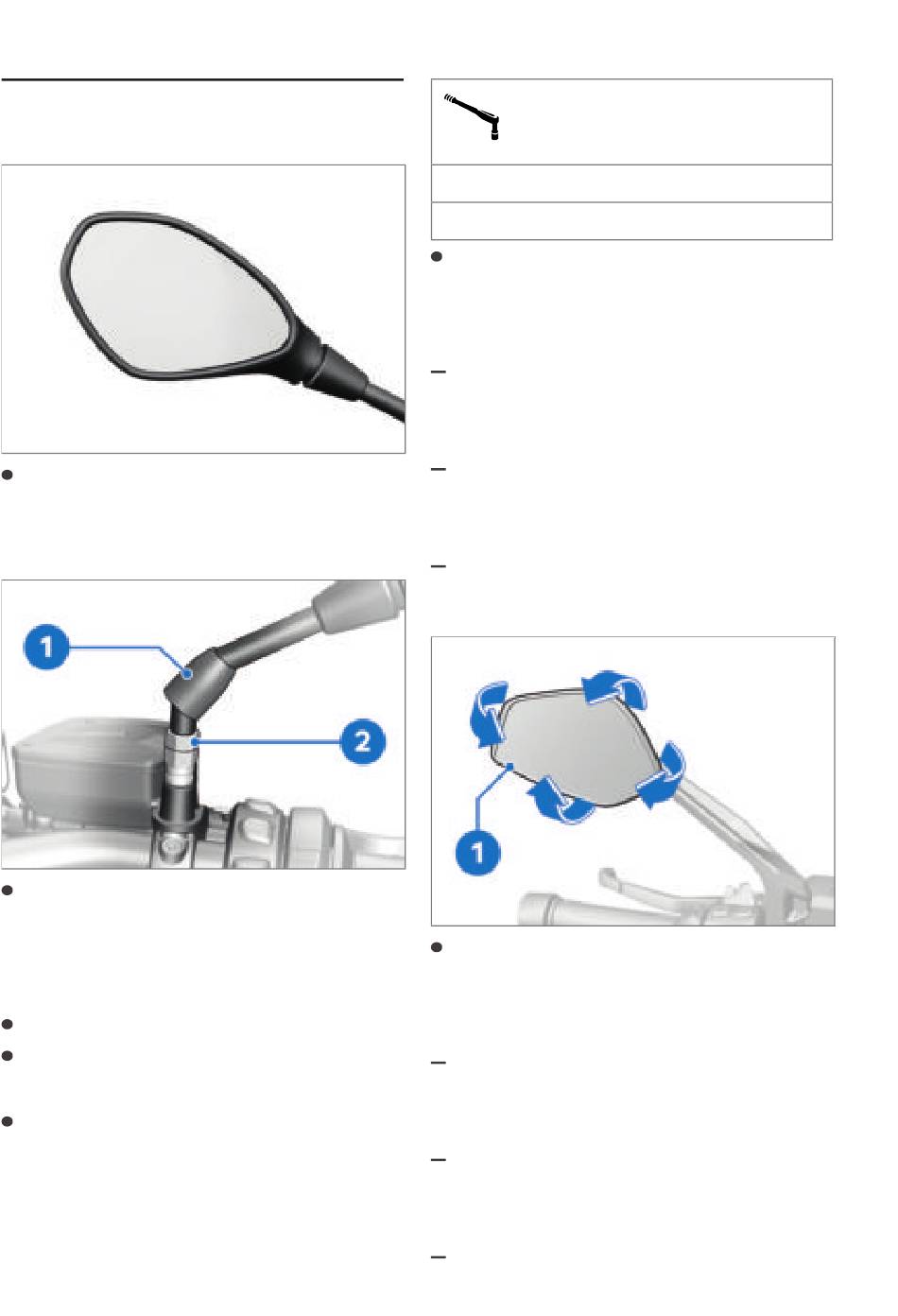

Adjusting mirrors
Turn the mirror to the appro-
priate position.
Adjusting mirror arm
Push protective cap 1 over
the threaded fastener of the
mirror arm up to expose the
threaded fastener.
Slacken nut 2.
Turn the mirror arm to the
appropriate position.
Tighten the nut to the spe-
cified torque, while holding
the mirror arm to ensure that
it does not move out of posi-
tion.
Mirror (locknut) to ad-
apter
M10 x 1.25
22 Nm (Left-hand thread)
Push protective cap 1 over
the threaded fastener.
Adjusting mirrors
with Option 719 Billet Pack
Classic II
OE
or
with Option 719 Billet Pack
Storm II OE
or
with Option 719 Billet Pack
Shadow II OE
Turn the mirror 1 to the cor-
rect position.
Adjusting mirror arm
with Option 719 Billet Pack
Classic II OE
or
with Option 719 Billet Pack
Storm II OE
or
with Option 719 Billet Pack
Shadow II OE
