Remove the battery cover
(
203).

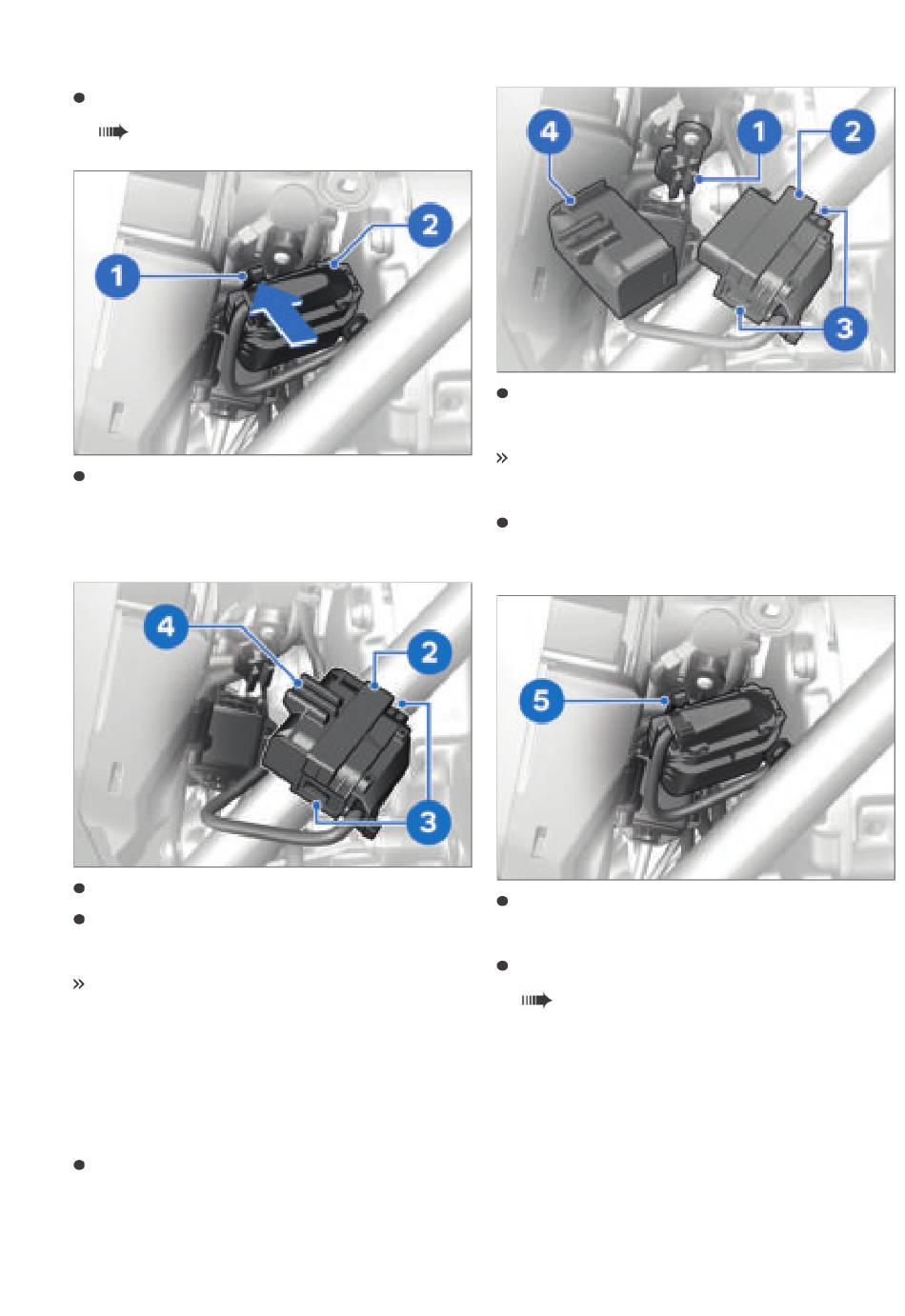

Press hook 1 and pull dia-
gnostic socket 2 up to re-
move.
Press locks 3 on both sides.
Disengage diagnostic
socket 2 from holder 4.
The interface to the diagnosis
and information system
can be connected to the
diagnostic connector 2.
Securing diagnostic socket
Disconnect the interface for
the diagnosis and information
system.
Insert diagnostic socket 2 into
holder 4.
Locks 3 engage on both
sides.
Seat bracket 4 on mount-
ing 1.
Make sure that hook 5 en-
gages.
Install the battery cover
(
205).
