Turn peg 2 to the desired po-
sition.
Install new screw 1.
Peg to footbrake lever
M6 x 20
Thread-locking compound:
micro-encapsulated
10 Nm
FOOTRESTS
with Option 719 Billet Pack
Classic II
OE
or
with Option 719 Billet Pack
Storm II
OE
or
with Option 719 Billet Pack
Shadow II
OE

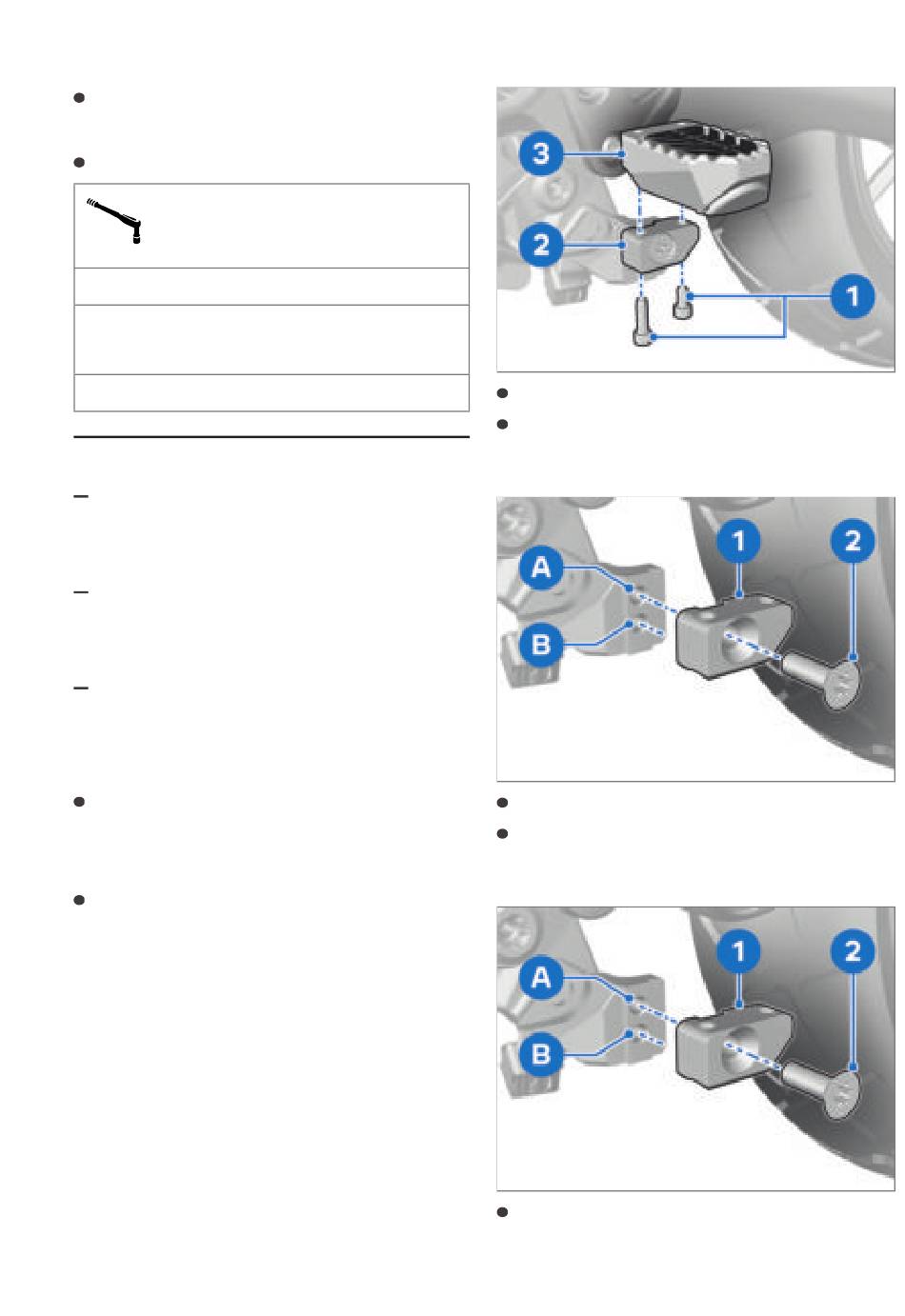

Adjusting footrests
The footrest is adjusted on
the right and left in the same
way.
The position of the footrest
must be set identically on the
right and on the left.
Remove screws 1.
Remove footrest 3 from
clamping block 2.
Remove screw 2.
Remove clamping block 1
from position A or B.
Install clamping block 1 in re-
quired position A or B and
tighten bolt 2.
