MAINTENANCE

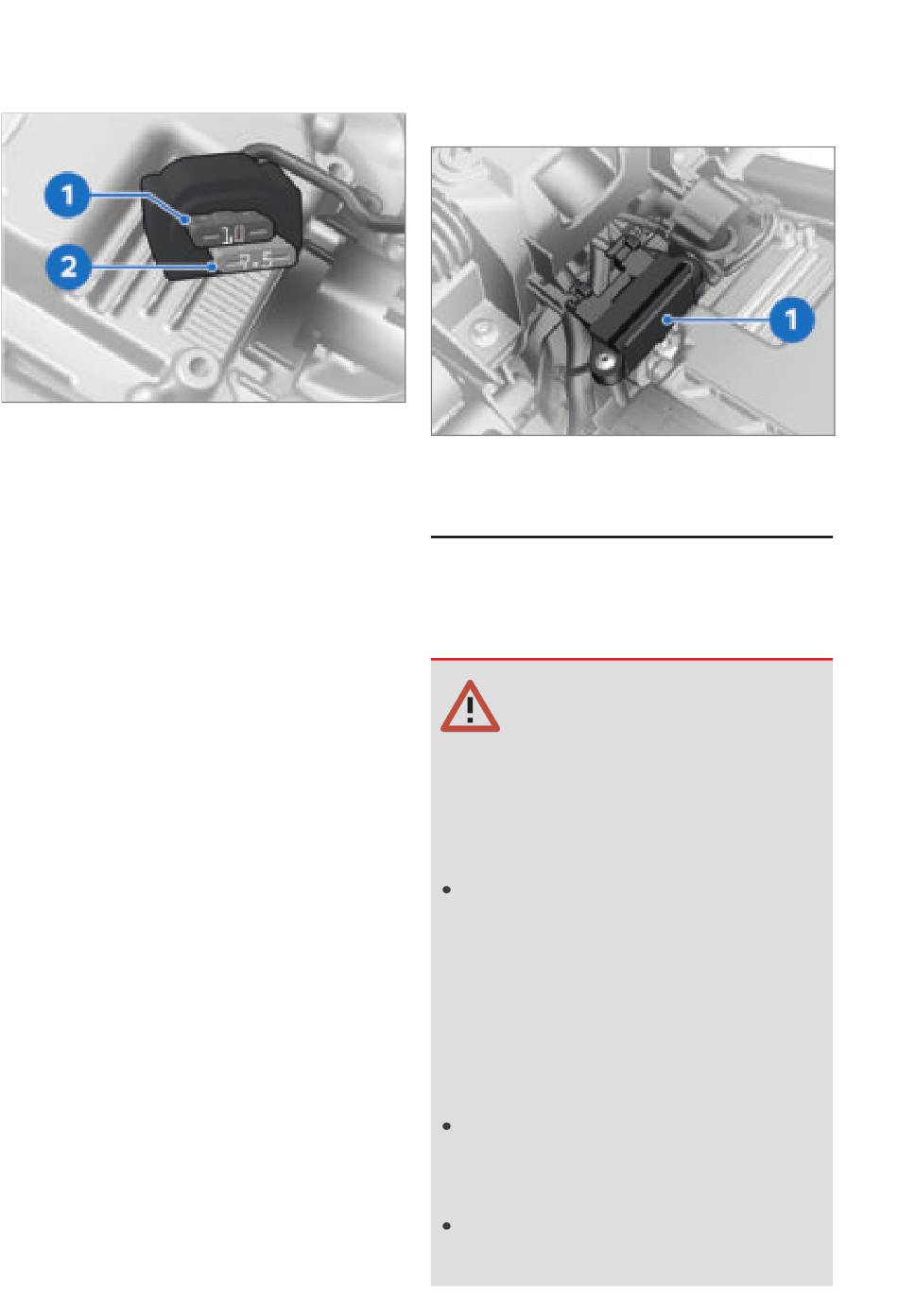

Fuse assignment
1
10 A
Instrument cluster
Anti-theft alarm (DWA)
Ignition switch
Main relay
Diagnostic socket
2
7.5 A
Multifunction switch, left
Tyre pressure control
(RDC)
Angular rate sensor
Fuse for the alternator
regulator
1
50 A
Alternator regulator
DIAGNOSTIC CONNECTOR
Disengaging diagnostic
socket
CAUTION
Incorrect disconnection of
the diagnostic socket for on-
board diagnosis
Malfunctions of the vehicle
Do not disconnect the
diagnostic socket or allow
it to be disconnected
except in the course of a
BMW Motorrad service by
a specialist workshop or by
other authorised persons.
Have the work carried out
by appropriately trained per-
sonnel.
Comply with the stipulations
of the vehicle manufacturer.
