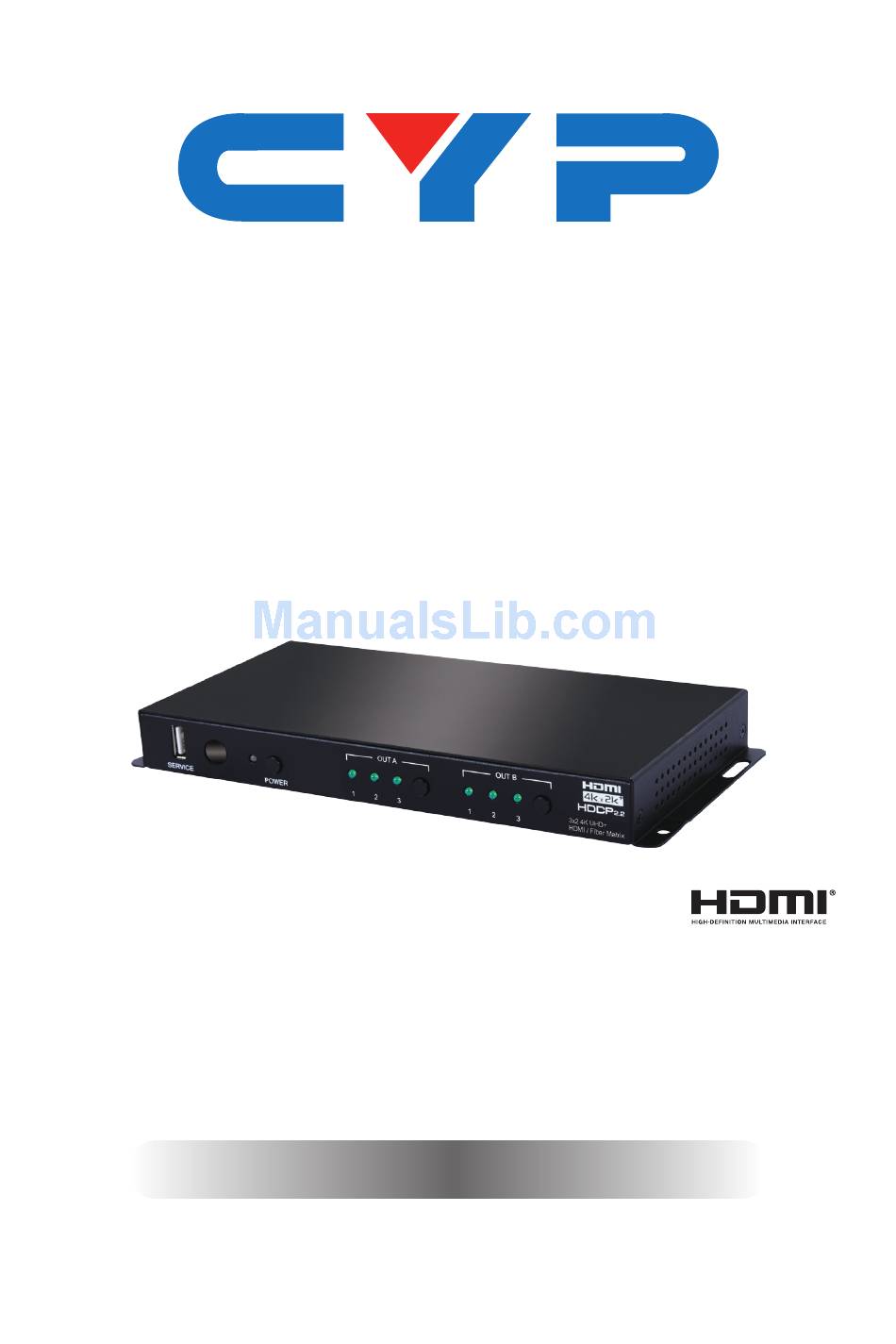

- Page 1 CPLUS-32FX 4K UHD 3×2 HDMI and Fiber Matrix Operation Manual Operation Manual...
- Page 3 DISCLAIMERS The information in this manual has been carefully checked and is believed to be accurate. Cypress Technology assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. Cypress Technology assumes no responsibility for any inaccuracies that may be contained in this document.
- Page 4 SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons.
-
Page 5: Table Of Contents
CONTENTS 1. Introduction ............1 2. Applications .............1 3. Package Contents ..........1 4. System Requirements ........2 5. Features ............2 6. Operation Controls and Functions ....3 6.1 Front Panel ..........3 6.2 Rear Panel ..........4 6.3 Remote Control ......... 4 6.4 IR Cable Pin Assignments ......5 6.5 RS-232 Protocol .......... -
Page 6: Introduction
1. INTRODUCTION This 3×2 HDMI and Fiber Matrix allows customer to route up to three HDMI input signals (two 18Gbps HDMI and one 10.2Gbps HDMI over optical fiber) to any of two HDMI outputs (one 18Gbps HDMI and one 10.2Gbps optical fiber). The optical fiber input and output both support transmission distances up to 300 meters and use paired LC connectors. -
Page 7: System Requirements
4. SYSTEM REQUIREMENTS • HDMI source equipment such as media players, video game consoles or set-top boxes. • HDMI receiving equipment such as HDTVs, monitors or audio amplifiers. • The use of “Premium High Speed HDMI” cables is highly recommended. •... -
Page 8: Operation Controls And Functions

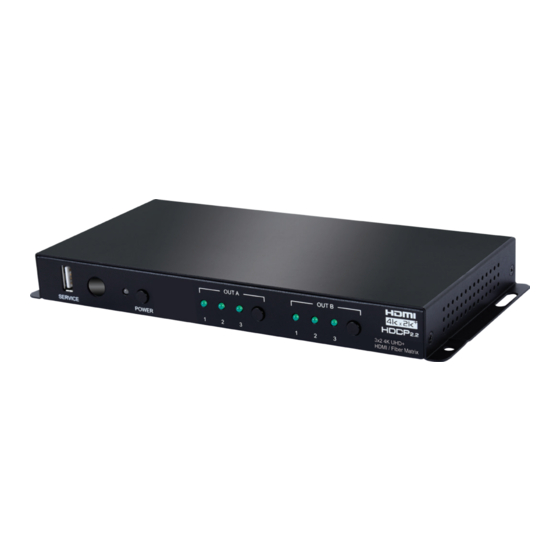

6. OPERATION CONTROLS AND FUNCTIONS 6.1 Front Panel OUT A OUT B 3x2 4K UHD+ SERVICE POWER HDMI / Fiber Matrix SERVICE: This slot is reserved for firmware update use only. IR WINDOW: Accepts IR signals from the included IR remote for control of this unit only. -
Page 9: Rear Panel
6.2 Rear Panel RS-232 IR IN DC 5V HDMI B HDMI 1 HDMI 2 CONTROL FIBER A FIBER 3 FIBER A & HDMI B OUT: Connect the HDMI output to HDMI TVs, monitors or amplifiers for digital video and audio output. DVI displays are supported with the use of an HDMI to DVI adapter. -
Page 10: Ir Cable Pin Assignments
6.4 IR Cable Pin Assignments IR Extender IR Signal Power Ground 6.5 RS-232 Protocol UNIT REMOTE SYSTEM Definition Definition ► ◄ Baud Rate: 115200bps Data Bits: 8 Parity Bits: None Stop Bits: 1 Flow Control: None... -
Page 11: Rs-232 And Telnet Commands
6.6 RS-232 and Telnet Commands COMMAND DESCRIPTION AND PARAMETERS HELP Displays all available commands. Displays all available commands. Turn unit’s power off. (Stand-by mode) Turn unit’s power on. INNAME N1 N2 Set input N1 to name N2. N1 = 1 ~ 3 [Input number] N2 = {name} [16 characters max]... - Page 12 COMMAND DESCRIPTION AND PARAMETERS EDIDMODE ? Show the current EDID mode setting. EDIDALL N1 Set the EDID to use in “All” mode. Available values for N1: [FHD/2CH] [FHD/MCH] [4K UHD/2CH] [4K UHD/MCH] [4K UHD+/2CH] [4K UHD+/MCH] [SINK A] [SINK B] EDIDALL ? Show the current EDID selection for “All”...
- Page 13 COMMAND DESCRIPTION AND PARAMETERS SETIP N1 N2 N3 Set the IP Address, Netmask, and Gateway for the unit when in Static IP mode with a single command. Disables DHCP. N1 = X.X.X.X [X = 0 ~ 255, IP Address] N2 = X.X.X.X [X = 0 ~ 255, Netmask] N3 = X.X.X.X [X = 0 ~ 255, Gateway] SIPADDR N1 Set the IP Address.
-
Page 14: Telnet Control
6.7 Telnet Control Before attempting to use Telnet control, please ensure that both the unit and the PC/Laptop are connected to the same active networks. To access Telnet Click Start, type “cmd” in the search field, In Windows 7 and press Enter. Click Start >... -
Page 15: Webgui Control
6.8 WebGUI Control • Device Discovery APP Please obtain the “Device Discovery” software from your authorized dealer and save it in a directory where you can easily find it. Connect the unit and your PC/Laptop to the same active network and execute the “Device Discovery”... - Page 16 • WebGUI Control Page After connecting to the WebGUI’s address in a web browser, log into the unit by entering the appropriate user name and password. The default user name and password are “admin”. All primary functions of this unit are controllable via the built in WebGUI, including power control, input selection, EDID management, HDCP management, port labeling, and Ethernet settings.
- Page 17 1. POWER The unit can be powered on or off (stand-by mode) from this tab. 2. ROUTING This tab allows for the selection of the input source for each output. Three inputs and mute (sync only, no video or audio) are selectable. The switch will occur immediately upon selection of a new source.
- Page 18 4. HDCP CONTROL This tab allows for the HDCP mode to be switched between “Follow In”, “Follow Out” and “Apple” mode. “Apple” mode allows for the display of non-HDCP required content from Apple devices on non- HDCP displays. This setting can be assigned individually to each input. 5.
- Page 19 This tab provides control over the unit’s network settings. The IP mode can be set to DHCP for automatic IP configuration, if your local network supports it, or it can be placed into STATIC mode. When in STATIC mode the IP address, netmask and gateway can be defined manually.
- Page 20 10. STATUS This tab displays the currently selected source for each output and the unit’s current firmware version. Options for performing a factory reset or rebooting the unit are also provided here. 11. FIRMWARE UPDATE This tab provides a way to update the firmware of the unit. (1) Browse: Click this button to select the firmware update *.bin file which is located on your local PC.
-
Page 21: Connection Diagram
7. CONNECTION DIAGRAM 7.1 HDMI Switching Blu-ray Player game console HDMI HDMI Input Input Network Switch Power Supply RS-232 IR IN DC 5V HDMI B HDMI 1 HDMI 2 CONTROL FIBER A FIBER 3 IR Extender HDMI 60° Output POWER CR-155 RS-232 RS-232 Equipped... -
Page 22: Fiber Extension
7.2 Fiber Extension RS-232 IR IN DC 5V HDMI B HDMI 1 HDMI 2 CONTROL FIBER A FIBER 3 60° Fiber Optical POWER CR-155 RS-232 IR IN DC 5V HDMI B HDMI 1 HDMI 2 CONTROL FIBER A FIBER 3 Additional 60°... -
Page 23: Specifications
8. SPECIFICATIONS 8.1 Technical Specifications HDMI Bandwidth 600MHz/18Gbps Fiber Bandwidth 340MHz/10.2bps Input Ports 2×HDMI 1×Fiber Optical (Paired LC connector) Output Ports 1×HDMI 1×Fiber Optical (Paired LC connector) Control Interfaces 1×IR Extender (3.5mm) 1×RS-232 (3.5mm) 1×IP Control (RJ-45) HDMI Cable Length 10m (1080p@60Hz, 12-bit) 5m (4K@60Hz, 4:4:4, 8-bit) Fiber Optical Cable... -
Page 24: Video Specifications
Storage Temperature −20˚C - 60˚C/−4˚F - 140˚F Relative Humidity 20 - 90% RH (Non-condensing) Power Consumption 7.106W (1.10W in stand-by mode) 8.2 Video Specifications Input Output Supported Resolutions (Hz) HDMI HDMI Fiber 640×480@60 800×600@60 1024×768@60 ... -
Page 25: Acronyms
9. ACRONYMS ACRONYM COMPLETE TERM Command Line Interface Digital Visual Interface EDID Extended Display Identification Data Graphical User Interface High-Definition HDCP High-bandwidth Digital Content Protection HDMI High-Definition Multimedia Interface High Dynamic Range Internet Protocol Infrared Local Area Network LPCM Linear Pulse-Code Modulation Personal Computer Ultra-High-Definition Universal Serial Bus... - Page 28 CYPRESS TECHNOLOGY CO., LTD. www.cypress.com.tw...
