The unit comes with the following 6 default EDIDs:
- FHD/2CH: 1080p/60Hz(148M), 2.0 LPCM, 8-bit color.
- FHD/MCH: 1080p/60Hz(148M), 7.1 LPCM and bitstream, 8-bit color.
- 4K UHD/2CH: 3840×2160p/30Hz (297M), 2.0 LPCM, deep color
(8/10/12-bit).
- 4K UHD/MCH: 3840×2160p/30Hz (297M), 7.1 LPCM and bitstream,
Deep Color (8/10/12-bit).
- 4K UHD+/2CH : 3840×2160p/60Hz (594M), 2.0 LPCM, deep color
(8/10/12-bit).
- 4K UHD+/MCH: 3840×2160p/60Hz (594M), 7.1 LPCM and bitstream,
deep color (8/10/12-bit).
Note: In some rare cases it is possible for custom or external EDIDs to
cause compatibility issues with certain sources. If this happens, it is
recommended to switch to one of the 6 default EDIDs for maximum
compatibility.

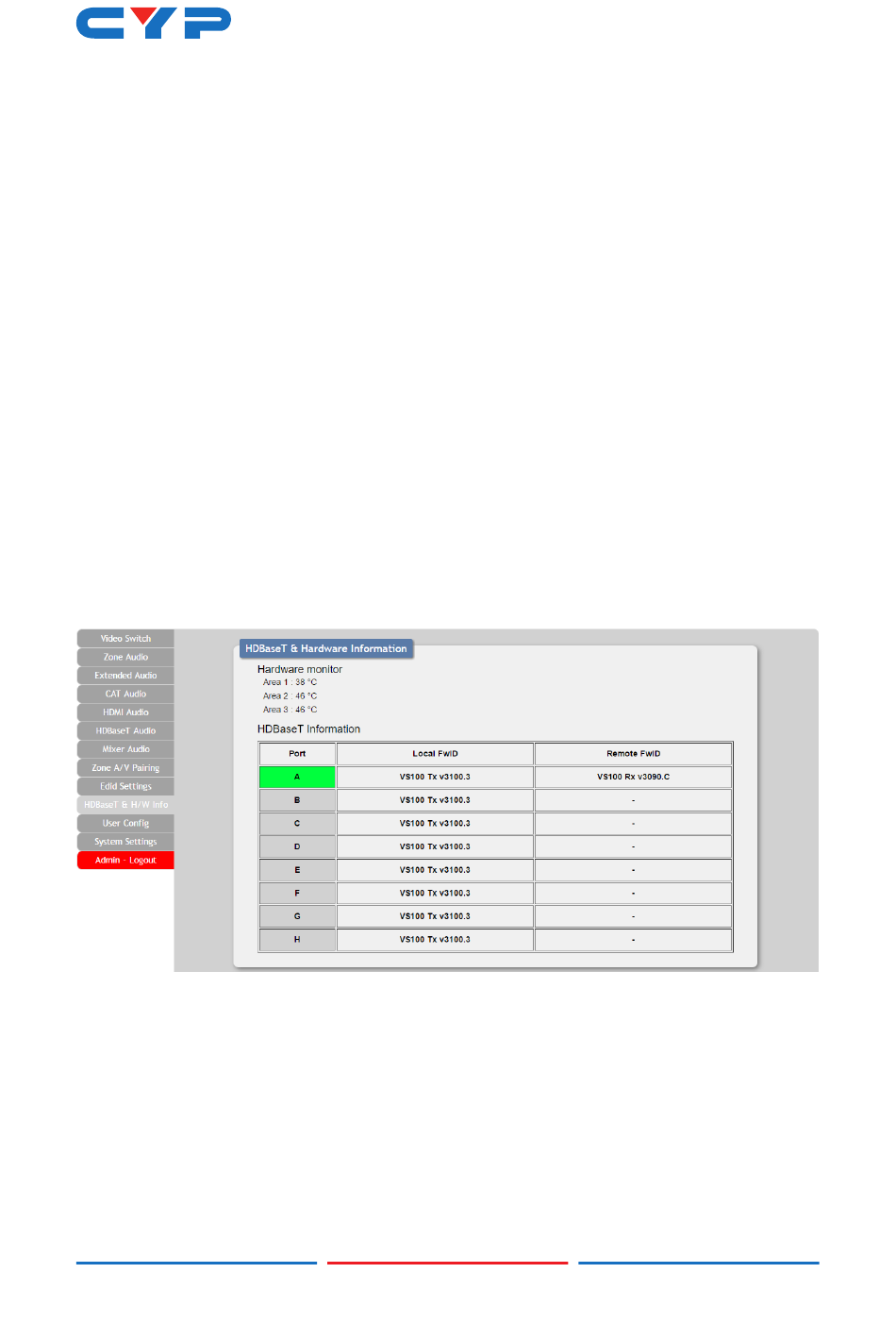

6.10.10 HDBaseT & H/W Info
This page provides information concerning the temperature inside
the matrix (areas 1, 2 & 3) and the HDBaseT firmware versions used in
the matrix and in connected receivers. Temperature area 1 is the left
side of the output ports (from the front), area 2 is the right side of the
output ports (from the front) and area 3 is at the middle of the HDMI
inputs.
