6. OPERATION CONTROLS AND FUNCTIONS

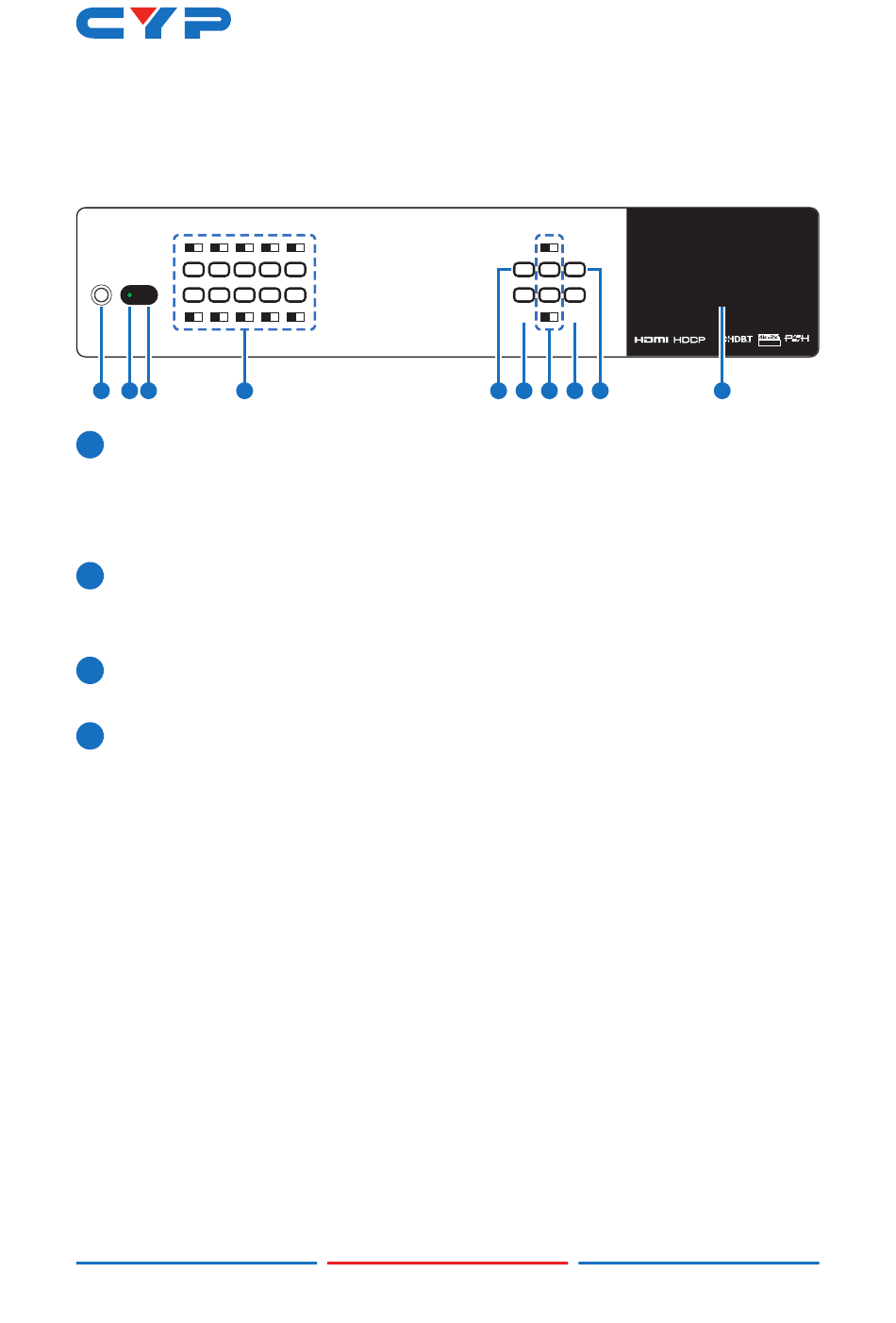

6.1 Front Panel

A 1 B 2 C
POWER
F 6 G 7 H
1 2 3 4
POWER: Press this button to power the unit on or place it into stand-
1
by mode.
Note: Network functionality and PoH (if the second power supply is
connected) remain active when the unit is in stand-by mode.
POWER LED: This LED will illuminate GREEN to indicate the unit is on
2
and receiving power. When the unit is in stand-by mode the LED
will illuminate RED.
IR WINDOW: Accepts IR signals from the included IR remote for
3
control of this unit only.
4 OUTPUT A~J & INPUT/NUMBER 1~10: Press the "OUT" button to enter
output selection mode. Next, press the output keys (A~J) of the
outputs you wish to route a source to (they will flash to indicate
selection). Next, press the "IN" key followed by the input (1~10)
you wish to route to the selected outputs. Finally, press "ENTER" to
confirm your selection and execute the routing change.
For example, if you wish to display input 1 on outputs A~D then the
following sequence of button presses should be performed: OUT →
A, B, C, D → IN → 1 → ENTER
When directly entering Ethernet address information into the unit
all 10 buttons are used to represent the numbers from 0 to 9 (button
10 = 0) to make number entry more streamlined.
