CYP CPLUS-1082CVEA Operation Manual page 45

• HDMI Output Setting
The two HDMI outputs (port I & port J) allow support for the maximum
HDMI timing up to 6G (4096×2160@60Hz) and can be used for normal
source routing (listed as "Independent" within the WebGUI) and
mirroring (listed as "Mirror" within the WebGUI) for local monitoring
purposes or zone monitoring (e.g. The HDBaseT output connects to a
TV in a remote zone the local HDMI connection goes into an AVR ).

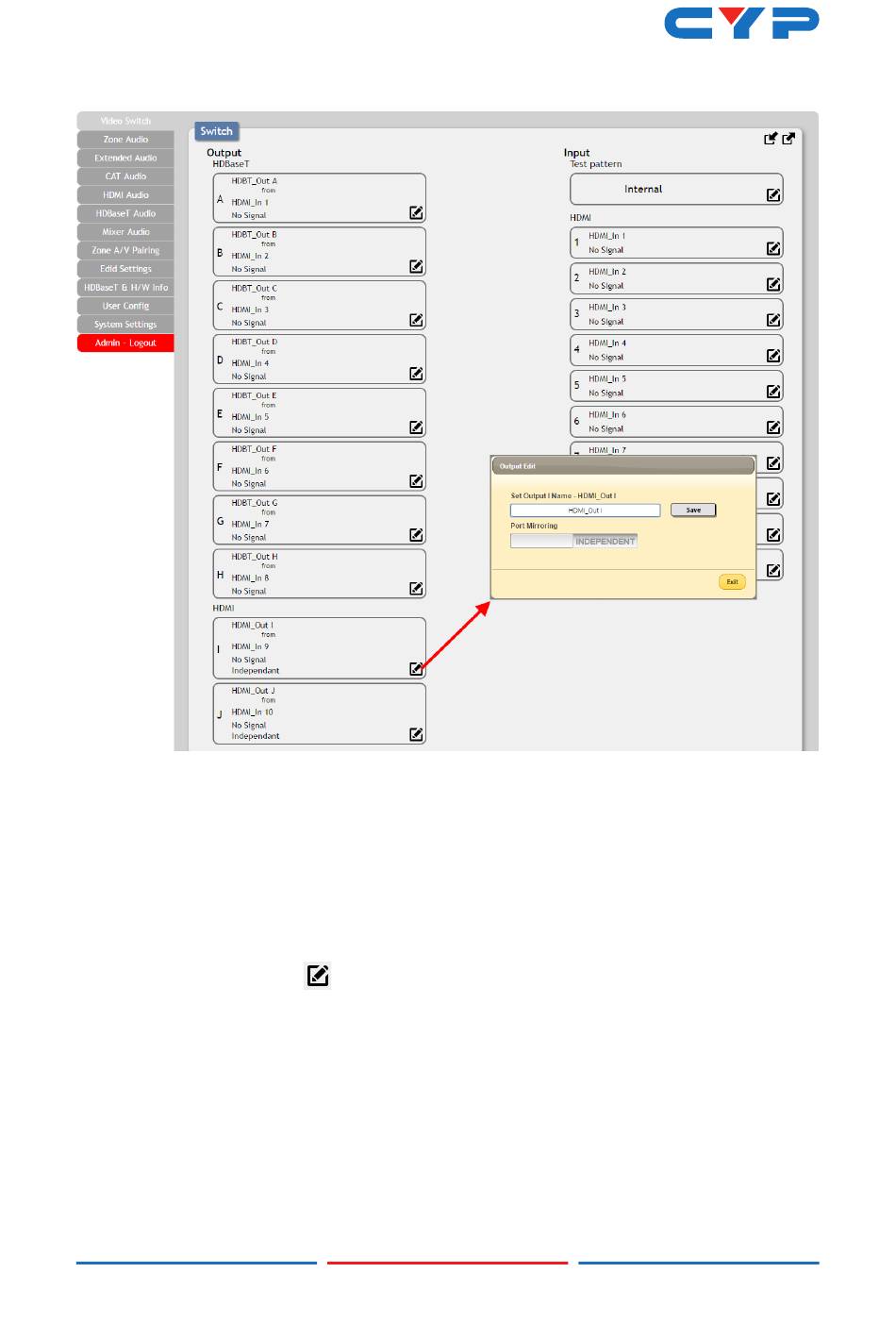

Click the "edit" icon ( ) to toggle the HDMI output mode between
"Independent" and "Mirror". When an HDMI port is in "Mirror" mode
you can only select HDBaseT outputs as inputs.
39
