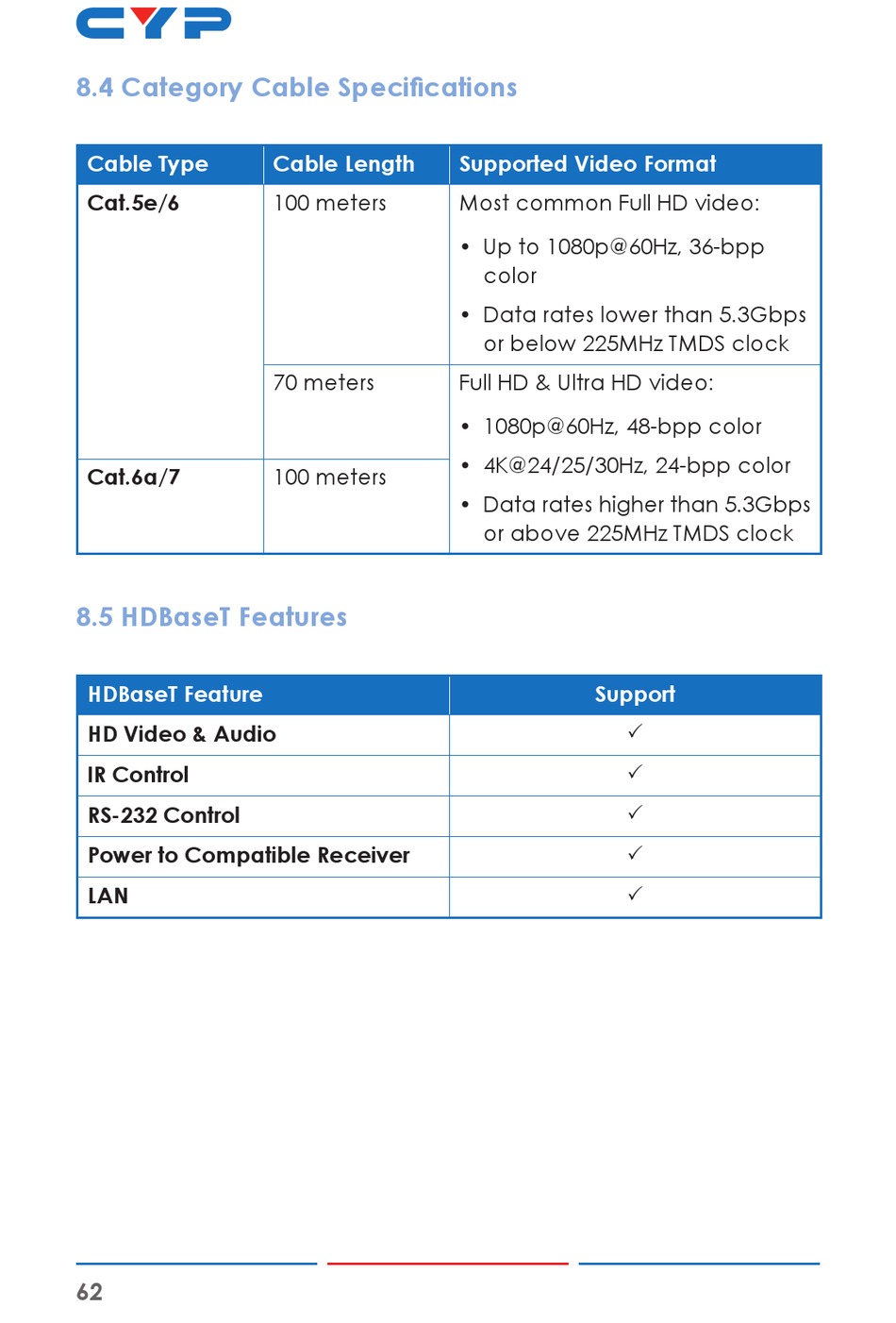

8.4 Category Cable Specifications

Cable Type
Cat.5e/6
Cat.6a/7

8.5 HDBaseT Features

HDBaseT Feature
HD Video & Audio
IR Control
RS-232 Control
Power to Compatible Receiver
LAN
62
Cable Length
100 meters
70 meters
100 meters
Supported Video Format
Most common Full HD video:
• Up to 1080p@60Hz, 36-bpp
color
• Data rates lower than 5.3Gbps
or below 225MHz TMDS clock
Full HD & Ultra HD video:
• 1080p@60Hz, 48-bpp color
• 4K@24/25/30Hz, 24-bpp color
• Data rates higher than 5.3Gbps
or above 225MHz TMDS clock
Support





