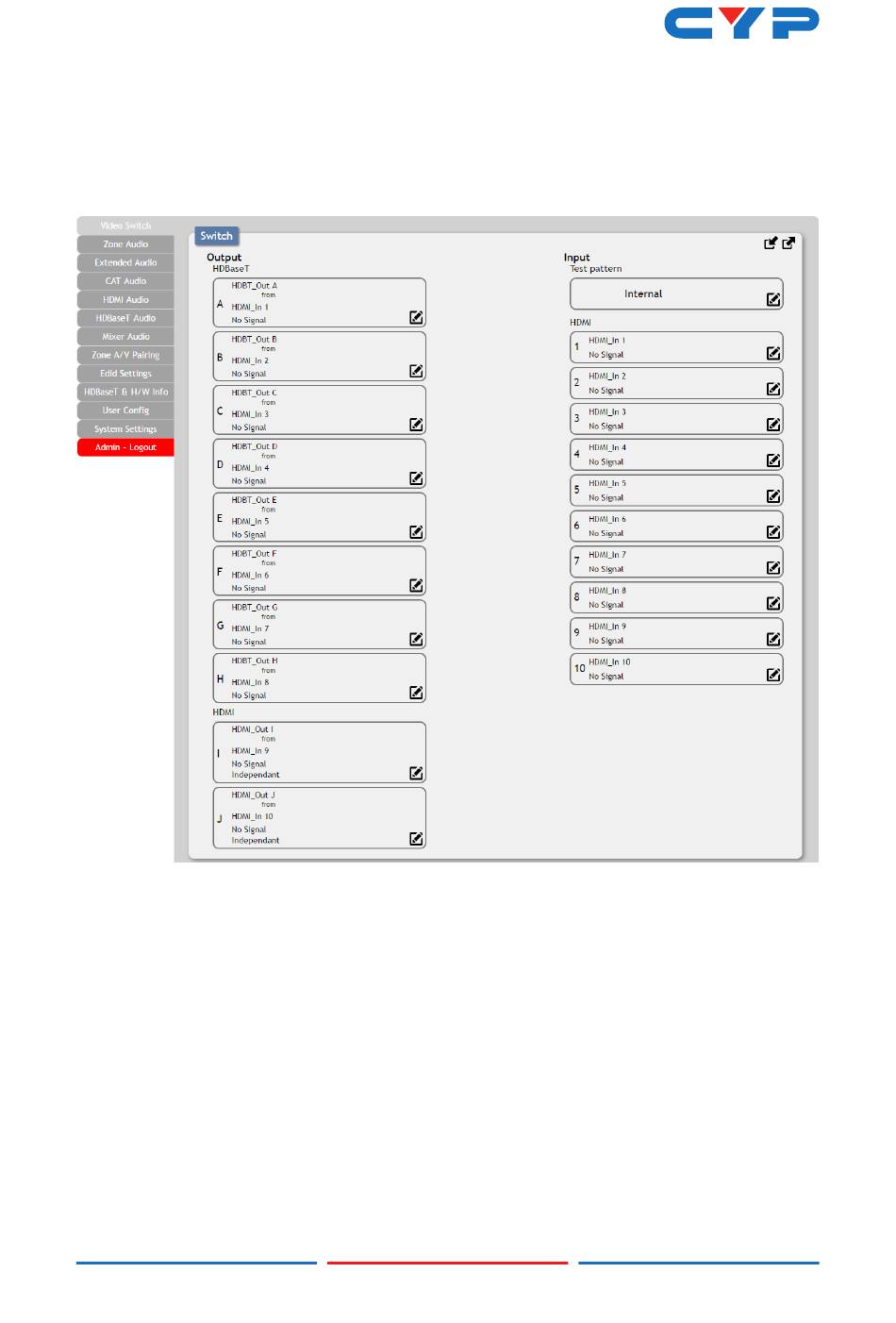

6.10.1 Video Switch

This page provides video routing settings including HDCP and test
pattern configuration.
• Output and Input Routing
To begin assigning a new video route, please click the button of
the HDBaseT output you wish to send video to (e.g. "HDBT_Out A")
and then click on the button of the preferred HDMI input port (e.g.
"HDMI_In 1"). If desired, you may select more than one output prior
to selecting the input. As you select each button they will change
their color to orange. The new route will become active immediately
and the routing information displayed on the buttons will change
accordingly.
If you need to route an input to multiple outputs, please select all of
the appropriate output buttons before selecting the input port.
