• Video and Audio Pairing Edit

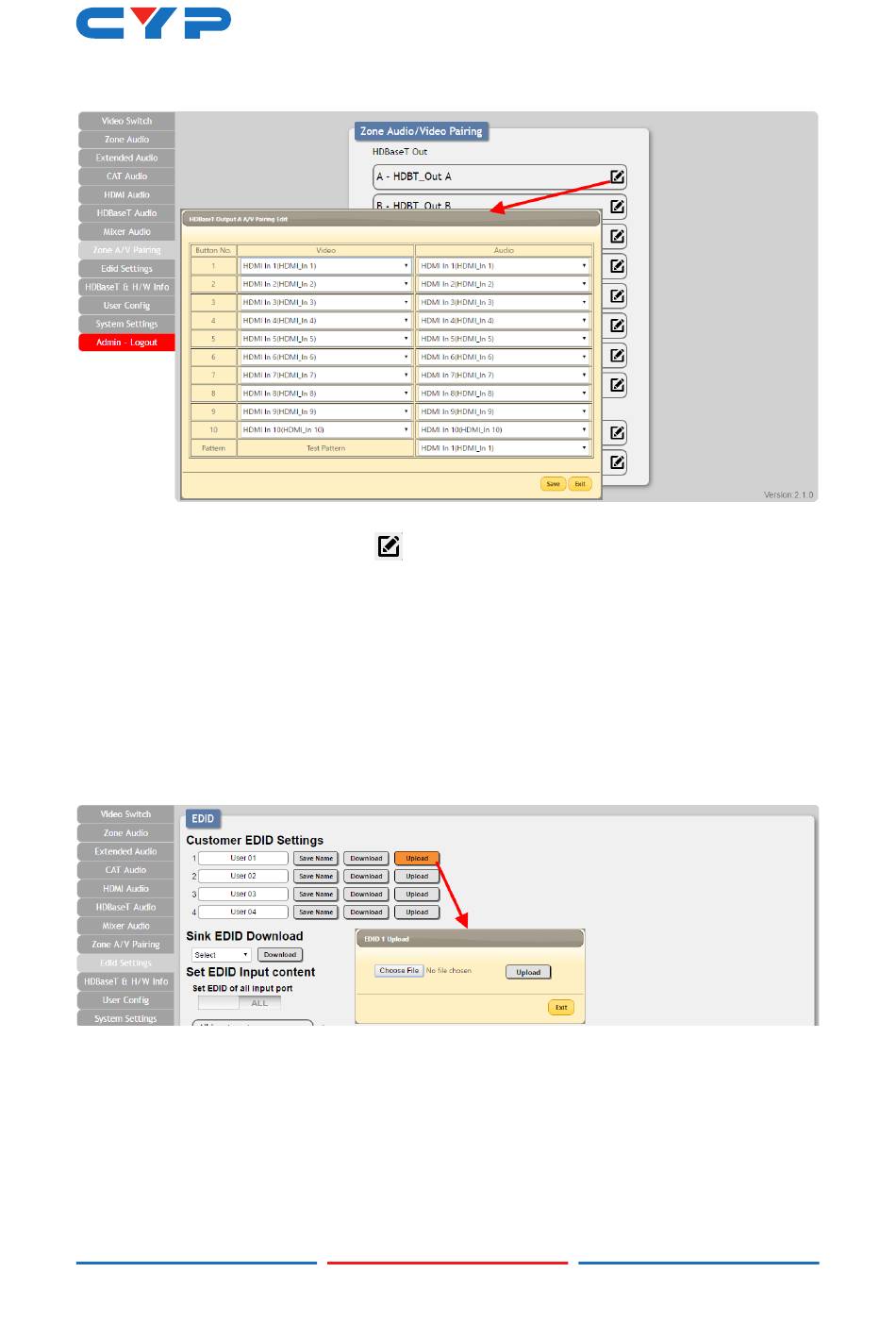

Please click the "edit" icon ( ) to edit the video and audio routing
settings. Once you have completed your selections press "Save".

6.10.9 EDID Settings

This matrix provides the option of six standard EDIDs, ten sink sourced
EDIDs and four customer uploaded EDIDs that can be assigned to
each input port individually. The names of the four customer uploaded
EDIDs can changed if desired.
• Customer EDID Settings
To upload a custom EDID, please click the "Upload" button next to
the Customer EDID Settings item you would like to change. An EDID
Upload window will appear, allowing you to locate and upload your
preferred EDID file from the file directory on your local PC. Once the
correct file has been selected, please click the "Upload" button in the
window, and the file will be transferred to the matrix.
52
