6. OPERATION CONTROLS AND FUNCTIONS

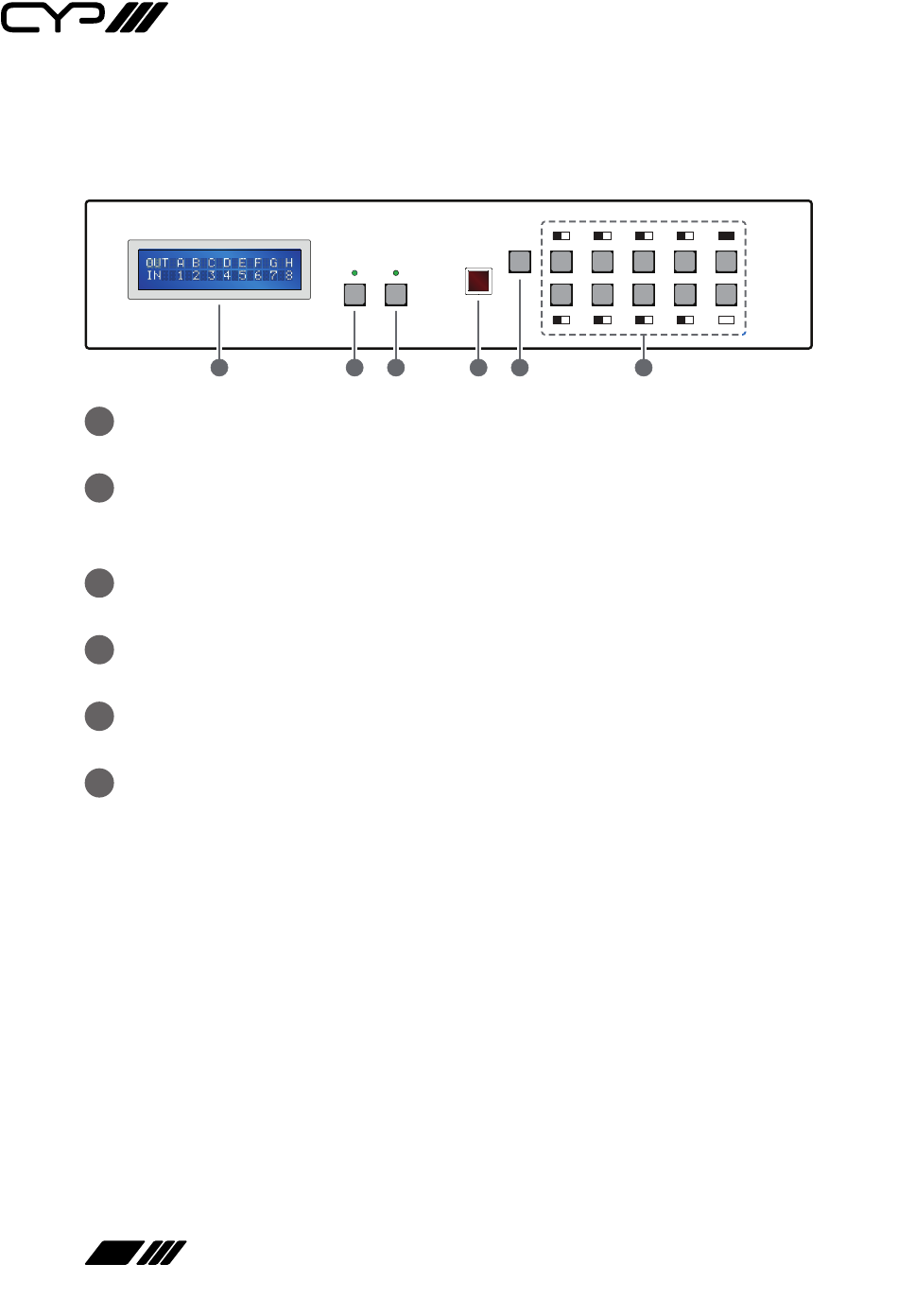

6.1 Front Panel

1
1
LCM: Displays the setting information of each input and output
setting.
2
POWER: Press this button to power the device on/off. The LED will
illuminate green when the power is on, red when it is in 'Standby'
mode.
3
LOCK: Press this button to lock all the buttons on the panel; press
again to unlock. The LED will illuminate when locked.
4
IR: IR Receiver window (accepts the remote control signal of this
device only).
5
MENU: Press this button to access the LCM menu system, from here
EDID settings can be managed and IP system settings are displayed.
6
A~H/1~8 and OUT/IN: Press the OUT or IN button to select the
output or input mode and then press the required number button to
make the selection accordingly.
For example, if outputs A~D need to be set to input 1 and outputs
E~H need to be set to input 2, then the following sequence of button
presses need to be performed:
Press: OUT  A  B  C  D  IN  1  MENU,
and then press: OUT  E  F  G  H  IN  2  MENU.
Note: If the MENU button is not pressed the selection will not be changed.
8
MENU
POWER LOCK
2 3 4
A 1 B 2 C 3 D
E 5 F 6 G 7 H
5 6
4 OUT
8 IN
