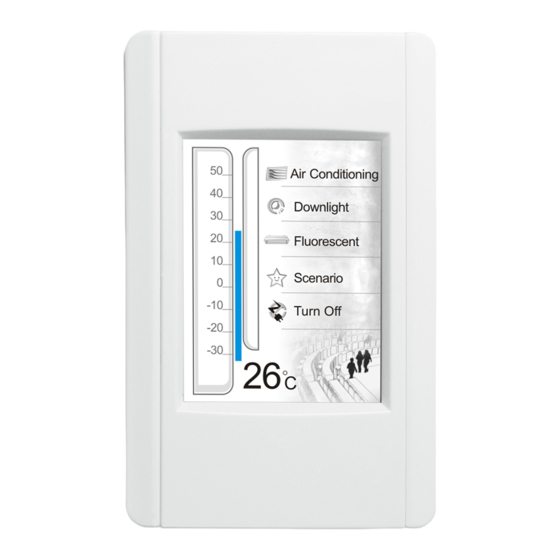

TPD/VPD Series HMI Device User Manual
TouchPAD
W
ARRANTY
All products manufactured by ICP DAS are warranted
against defective materials for a period of one year from
the date of delivery to the original purchaser.
W
ARNING
ICP DAS assumes no liability for damages consequent to
the use of this product. ICP DAS reserves the right to
change this manual at any time without notice. The
information furnished by ICP DAS is believed to be
accurate and reliable. However, no responsibility is
assumed by ICP DAS for its use, nor for any infringements
of patents or other rights of third parties resulting from
its use.
C
OPYRIGHT
Copyright © 2017 by ICP DAS. All rights are reserved.
T
RADEMARKS
Names are used for identification purposes only and may
be registered trademarks of their respective companies.
C
U
ONTACT
S
If you have any questions, please feel free to contact us
via email at:
service@icpdas.com, service.icpdas@gmail.com
Version 1.3.2, Aug. 2017
