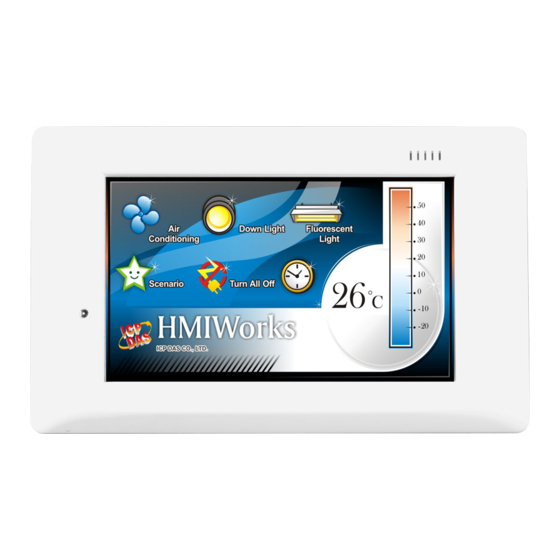

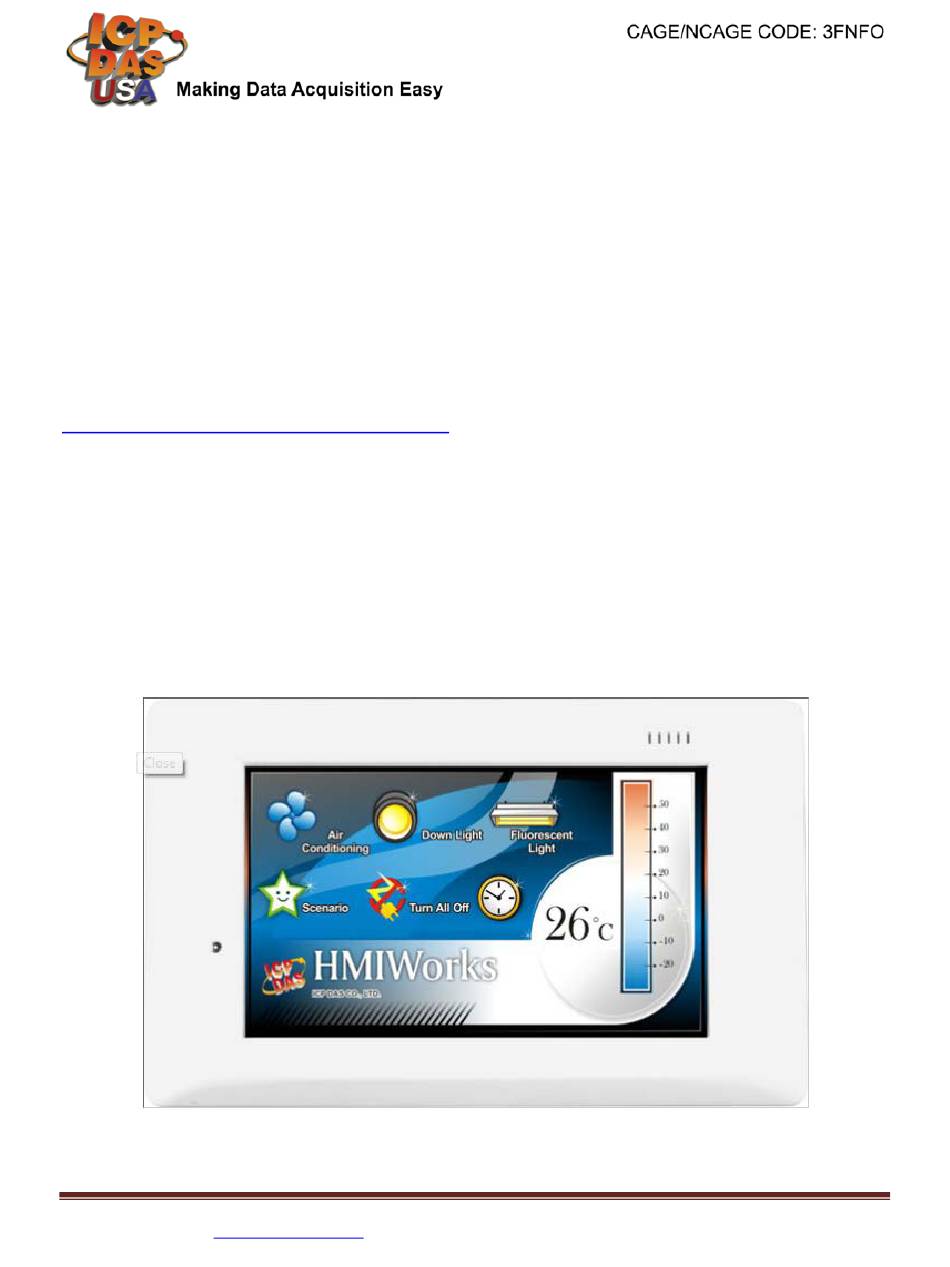

TPD-433F
4.3'' Touch Screen HMI Controller,
communicable over Modbus RTU/TCP and Ethernet
Quick Start Guide
Product Website:
http://www.icpdas-usa.com/tpd_433f.html
1. Introduction
TPD-433F, TouchPAD, is a series of tiny touch HMI designed for building and home
automation. TPD-433F is equipped with a high resolution TFT color touch screen and
can be used to replace regular electrical wall-mount outlets. It is seamlessly integrated
with rich I/O modules and presents a beautiful, flexible, and user-defined picture frame.
In short, it is the best choice to upgrade a mechanical switch to intelligent control pads.
2. Wirings
