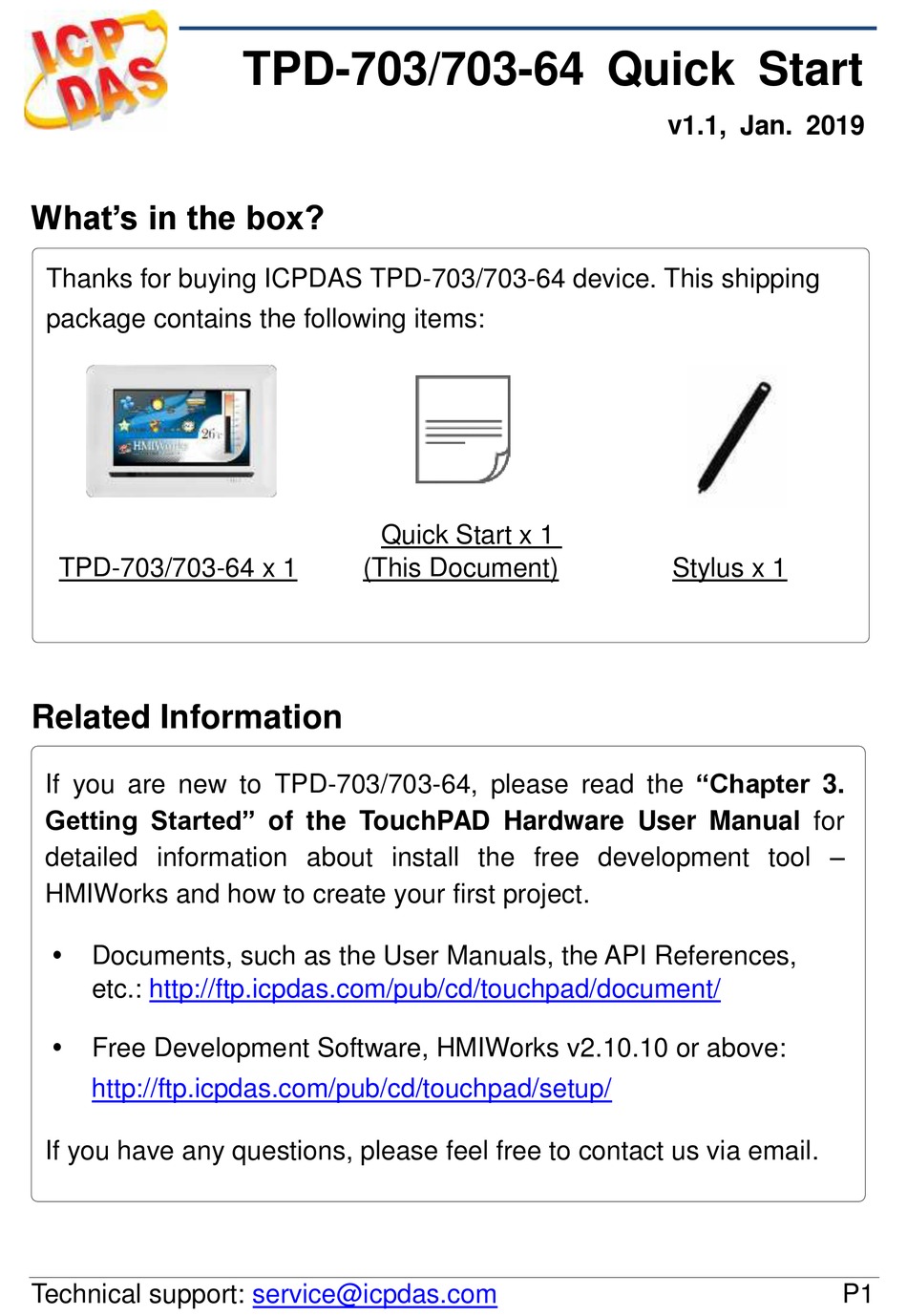

What's in the box?
Thanks for buying ICPDAS TPD-703/703-64 device. This shipping
package contains the following items:

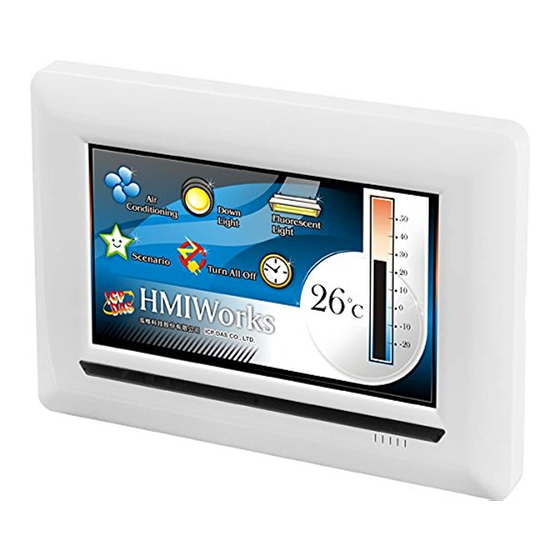

TPD-703/703-64 x 1
Related Information
If you are new to TPD-703/703-64, please read the "Chapter 3.
Getting Started" of the TouchPAD Hardware User Manual for
detailed information about install the free development tool –
HMIWorks and how to create your first project.
Documents, such as the User Manuals, the API References,
etc.:
http://ftp.icpdas.com/pub/cd/touchpad/document/
Free Development Software, HMIWorks v2.10.10 or above:
http://ftp.icpdas.com/pub/cd/touchpad/setup/
If you have any questions, please feel free to contact us via email.
Technical support:
TPD-703/703-64 Quick Start
Quick Start x 1
(This Document)
service@icpdas.com
v1.1, Jan. 2019
Stylus x 1
P1
Advertisement
Table of Contents
Related Manuals for ICP DAS USA TPD-703
Summary of Contents for ICP DAS USA TPD-703
- Page 1 (This Document) Stylus x 1 Related Information If you are new to TPD-703/703-64, please read the “Chapter 3. Getting Started” of the TouchPAD Hardware User Manual for detailed information about install the free development tool – HMIWorks and how to create your first project.
- Page 2 Touch Panel Rotary Switch Serial Port Buzzer Indicator Pin Assignments On the back of the TPD-703(-64) No Pin Description F.G. Frame Ground. F.G. is connected to the inside EMI or ESD suppression circuits. Make sure that F.G. is connected to the Earth P.GND Connected to the power supply’s ground pin...
- Page 3 255.255.0.0 Gateway 192.168.0.1 First Use of the TPD-703(-64) 1. Connect wires as the below figure or prepare an Ethernet cable which will be used to supply power through PoE if there’s a RJ-45 Ethernet port on it. And set the rotary switch to 0 (At this point, the power is not yet supplied).
- Page 4 3. Try to touch on the icons on the bottom-right corner of the screen of the TPD-703(-64) and you can find that TPD-703(-64) switches to the setting pages. Hardware Installation...
- Page 5 TPD-703/703-64 快速入門指南 v1.1, 2019 年 1 月 檢查配件 感謝您購買泓格的 TPD-703/703-64 產品 。 產品包裝內應包含下列配件: 產品須知 x 1 (本文件) 觸控筆 x 1 TPD-703/703-64 x 1 參考資訊 如果您是第一次使用 TPD-703/703-64，請參閱 TouchPAD 硬體使用 手冊的 “第 3 章 啟動 TouchPAD” 來了解如何安裝免費的開發軟體 HMIWorks 並建立第一個專案以及更多詳細的相關資訊。 相關文件，如使用手冊、應用程式介面指南(API Reference) 等: ...
- Page 6 外觀 前配置圖 後配置圖 7 吋觸控液晶螢幕 重啟按鈕 Ethernet 旋轉開關 序列埠 蜂鳴器 LED 指示燈 腳位定義 在 TPD-703/703-64 的背面可見到如右圖 說明 No Pin 機架接地，F.G. (連接到內部的 EMI 或 ESD 保護電路)， F.G. 請接到大地 連到電源的接地端 P. GND 直流電壓輸入 (範圍：+12 V ~ +48 V) RS-232 的傳送資料腳位 RS-232 的接收資料腳位...
- Page 7 執行程式，也能進行更新)。通過乙太網 Run & Update 路 (Ethernet) 可以進行遠端更新程 式。(出廠預設) 強制更新，當程式異常而無法進入上述 Force Update 更新時可用此模式更新。 執行程式。 Run Only 網路設定出廠預設如下表: IP Address 192.168.255.1 Subnet Mask 255.255.0.0 Gateway 192.168.0.1 第一次使用 TPD-703(-64) 1. 如下圖所示，將電源和接地線連接完成。或是若有 RJ-45 的乙太網路 接孔，可以準備一條網路線，透過乙太網路供電 (PoE)。然後將旋轉開關 (Rotary Switch) 轉到 0 (此時尚未供電)。 Technical support: service@icpdas.com...
- Page 8 乙太網 路供電 VDC (+12-+48 V 使用一字起子 來配置旋轉開關 外部供電器 2. 開始供電給 TPD-703(-64)，等待約數秒的開 機時間，接著可以看到 TPD-703(-64) 執行出 貨預附的程式如左圖所示。 3. 試著按一下 TPD-703(-64) 螢幕上面的圖示，TPD-703(-64) 會切到其 他的頁面。 硬體安裝 安裝於專用明盒 EWB-T70(選購) 安裝於專用暗盒 OB170 (選購) Technical support: service@icpdas.com...
