VPD-173N / VPD-173N-64
Thanks for buying a VPD-173N device.
1.
VPD-173N /
VPD-173N-64
2.
VPD-173 Quick Start, version 1.0
Copyright © 2016 ICP DAS Co., Ltd.
Quick Start Version 1.0
What's in your package?
Quick Start

Pin Assignments

Last Revised: May 2015
All Rights Reserved.
2.4mm
Page: 1
 E-mail: service@icpdas.com
screw driver

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VPD-173N and is the answer not in the manual?

Questions and answers

Related Manuals for ICP DAS USA VPD-173N

Summary of Contents for ICP DAS USA VPD-173N

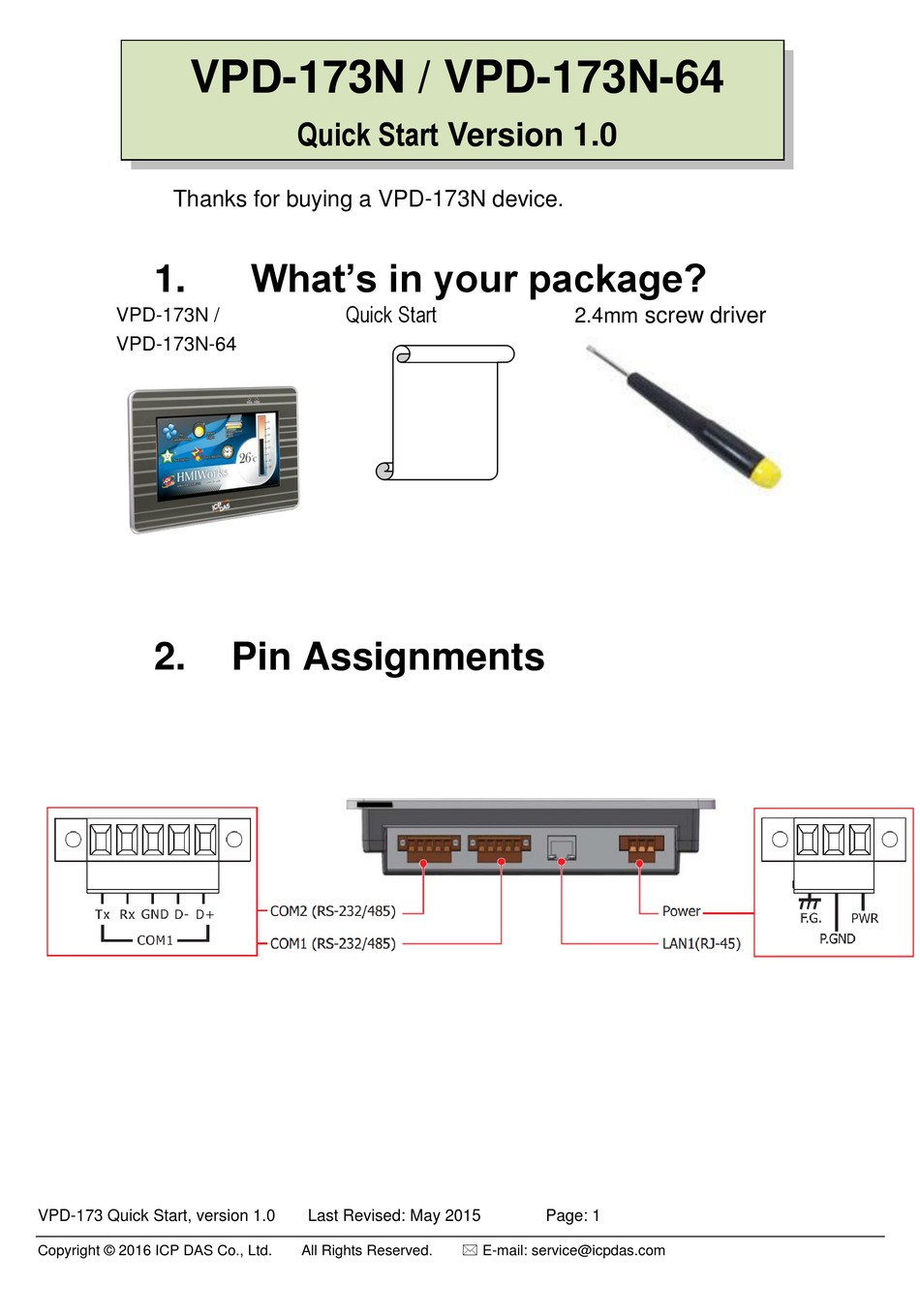

  • Page 1 VPD-173N / VPD-173N-64 Quick Start Version 1.0 Thanks for buying a VPD-173N device. What’s in your package? Quick Start screw driver VPD-173N / 2.4mm VPD-173N-64 Pin Assignments VPD-173 Quick Start, version 1.0 Last Revised: May 2015 Page: 1  E-mail: service@icpdas.com Copyright ©...
  • Page 2 Power : Mode Description Frame Ground. F.G. is connected to the inside F.G. EMI or ESD suppression circuits. Make sure that F.G. is connected to the Earth DC input Voltage (range: +12V ~ +48V) Connected to the power supply’s ground pin Serial ports : Mode Description...
  • Page 3 Appearance First Use of VPD-173N series 1. Connect wires as the figure and set the rotary switch to zero. 2. Turn on the power supply to the VPD, and then you can see the default program run on VPD-173 Quick Start, version 1.0...
  • Page 4 5. Creating First Project To create your first project of the VPD series, install the free development tool, HMIWorks and then refer to <<TouchPAD_getting_started.pdf>>, which can be found on the FTP: ftp://ftp.icpdas.com/pub/cd/touchpad/document/english/getting_st arted Additional Links TPD/VPD series product page: http://www.icpdas.com/root/product/solutions/hmi_touch_monitor/touchpad/tou chpad_selection.html Documents, such as the user manuals, the API references, etc.: ftp://ftp.icpdas.com/pub/cd/touchpad/document/english/...
  • Page 5 VPD-173N / VPD-173N-64 產品須知 版本 1.0 感謝您購買 VPD-173N 系列產品。 檢查包裝内含物品 產品須知 螺絲刀 2.4mm VPD-173N / VPD-173N-64 接腳定義 VPD-173 Quick Start, version 1.0 Last Revised: May 2015 Page: 5  E-mail: service@icpdas.com Copyright © 2016 ICP DAS Co., Ltd. All Rights Reserved.
  • Page 6 電源 : Mode Description 機架接地 ， 連接到內部的 或 保護電 F.G. ( F.G. 路)，請接到大地 直流電壓輸入 (範圍： +12V ~ +48V 連到電源的接地端 通訊介面 : Mode Description 網路的正訊號線 RS-485 網路的負訊號線 RS-485 共同的接地點 RS-232 RS-232 的接收資料腳位 RS-232 的傳送資料腳位 旋轉開關定義: Mode Description 執行或是更新程式，是程式開發階段使用的。 &Update 當 上面的程式嚴重毀損時，強制更新程 Force 式。...
  • Page 7 外觀 4. 第一次使用 VPD-173N 如圖所示，將電源和接地線連 接完成。然後將旋轉開關 rotary switch )轉到零。 打開供電給 系列的電 源，接著可以看到 系列 執行出貨預附的程式如圖所 示。 VPD-173 Quick Start, version 1.0 Last Revised: May 2015 Page: 7  E-mail: service@icpdas.com Copyright © 2016 ICP DAS Co., Ltd. All Rights Reserved.
  • Page 8 5. 建立第一個軟體專案 在建立 系列的第一個專案之前，請先安裝免費的開發軟體 。 HMIWorks 然後參考<< TouchPAD_getting_started.pdf >>這份文件，一步一步地完成。 該份文件可以在下列 上找到： ftp://ftp.icpdas.com/pub/cd/touchpad/document/chinese/getting_started 下面的連結有更多的資訊  TPD/VPD 系列產品的網址： http://www.icpdas.com/root/product/solutions/hmi_touch_monitor/touchpad /touchpad_selection.html  文件，如使用手冊、 函數手冊等。 ftp://ftp.icpdas.com/pub/cd/touchpad/document/chinese/  免費的開發軟體， 或以上版本)： HMIWorks 2.09.15 (版本 ftp://ftp.icpdas.com/pub/cd/touchpad/setup/  如果您有什麼問題，歡迎來信連繫。  電子郵件：service@icpdas.com VPD-173 Quick Start, version 1.0 Last Revised: May 2015 Page: 8 ...
