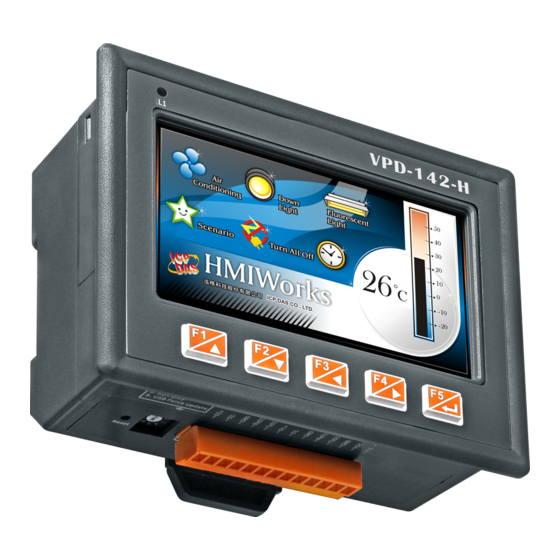

What's in the box?
Thanks for buying ICPDAS VPD-142(N)-H/143(N)-H device. This
shipping package contains the following items:
VPD-142(N)-H/143(N)-H x 1
2.4 mm Screw Driver x 1
Related Information
If you are new to VPD-142(N)-H/143(N)-H, please read the
"Chapter 3. Getting Started" of the TouchPAD Hardware User
Manual for detailed information about install the free development
tool – HMIWorks and how to create your first project.
Documents, such as the User Manuals, the API References,
etc.:
http://ftp.icpdas.com/pub/cd/touchpad/document/
Free Development Software, HMIWorks v2.10.10 or above:
http://ftp.icpdas.com/pub/cd/touchpad/setup/
If you have any questions, please feel free to contact us via email.
Technical support:
VPD-142(N)-H/143(N)-H
service@icpdas.com
Quick Start
Quick Start x 1 (This Document)
Panel Mounting kit x 1
v1.1, Jan. 2019
P1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for ICP DAS USA VPD-142-H
Summary of Contents for ICP DAS USA VPD-142-H

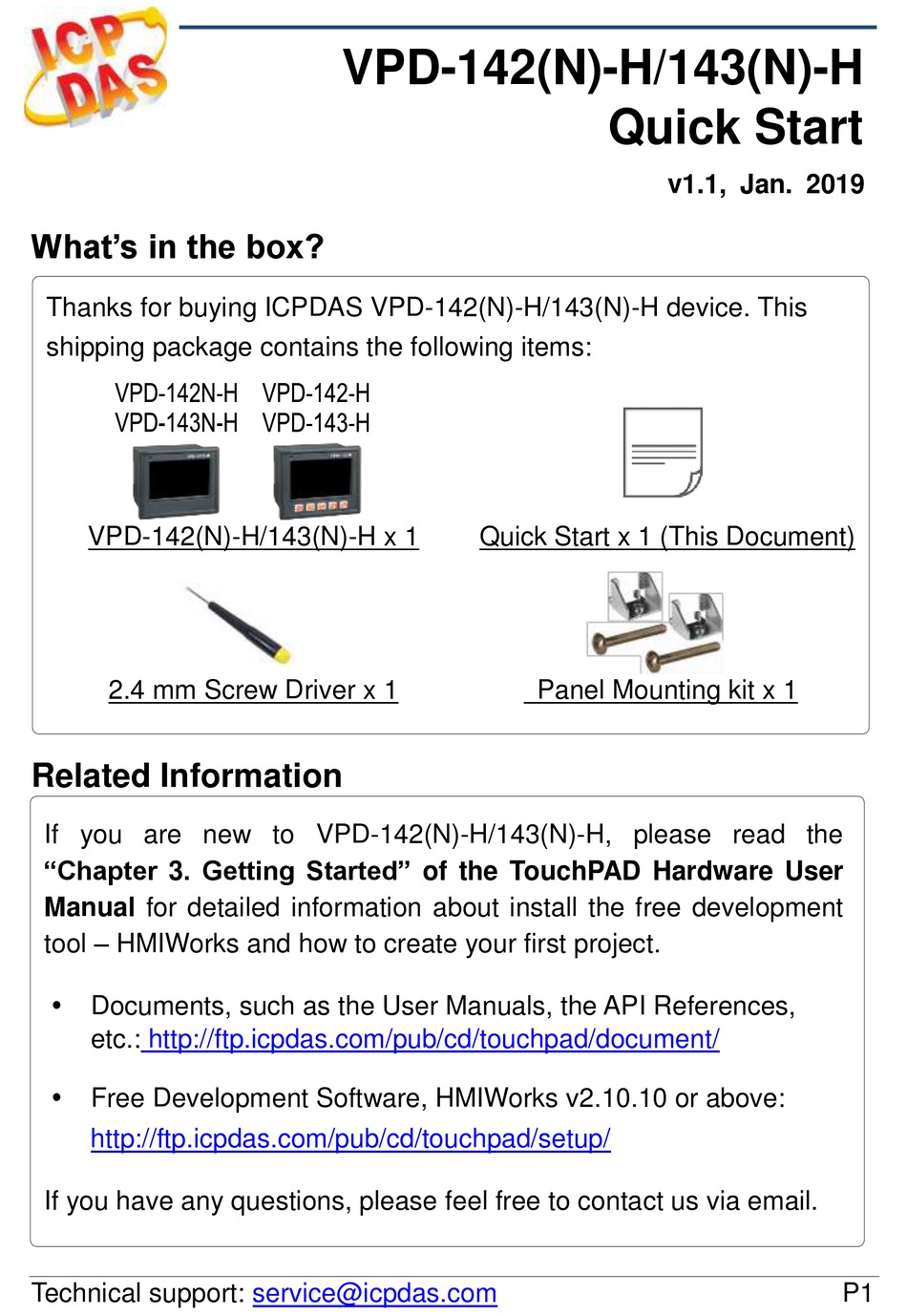

- Page 1 VPD-142(N)-H/143(N)-H Quick Start v1.1, Jan. 2019 What’s in the box? Thanks for buying ICPDAS VPD-142(N)-H/143(N)-H device. This shipping package contains the following items: VPD-142(N)-H/143(N)-H x 1 Quick Start x 1 (This Document) 2.4 mm Screw Driver x 1 Panel Mounting kit x 1 Related Information If you are new to VPD-142(N)-H/143(N)-H, please read the “Chapter 3.
- Page 2 Appearance Front View Bottom View Top View LED Indicator Serial Port Rotary Switch Ethernet XV-Board Rubber Keypad Reset Button (optional) Pin Assignments Description The positive data line of the RS-485 network The negative data line of the RS-485 network Ground pin RxD2 The pin of received data of the RS-232 The pin of transmitted data of the RS-232 TxD2...
- Page 3 Rotary Switch & Default Settings The definition of the rotary switch (VPD-142(N)-H): No Mode Description Run Only Run the program. (Default) USB Force Update a new application to the TouchPAD Update device through USB. The definition of the rotary switch (VPD-143(N)-H): No Mode Description This is a special run mode which is used in...
- Page 4 Use a flat-head screwdriver PoE Switch to set rotary switch VDC (+12-+48 V) External Power 2. Supply power to the VPD-142(N)-H/143(N)-H, wait for several seconds and then you can see the default program run on it. 3. Try to touch on the icons on the bottom-right corner of the screen of the VPD-142(N)-H/143(N)-H and you can find that VPD-142(N)-H/143(N)-H switches to the setting pages.
- Page 5 VPD-142(N)-H/143(N)-H 快速入門指南 v1.1, 2019 年 1 月 檢查配件 感謝您購買泓格的 VPD-142(N)-H/143(N)-H 產品。產品包裝內應包含 下列配件: 產品須知 x 1 (本文件) VPD-142(N)-H/143(N)-H x 1 24 mm 螺絲刀 x 1 面板安裝組件 x 1 參考資訊 如果您是第一次使用 VPD-142(N)-H/143(N)-H ， 請參閱 TouchPAD 硬 體使用手冊的 “第 3 章 啟動 TouchPAD” 來了解如何安裝免費的開 發軟體...
- Page 6 外觀 前配置圖 下配置圖 上配置圖 LED 指示燈 序列埠 旋轉開關 Ethernet I/O 擴充卡 重啟按鈕 橡膠鍵盤 XV-Board (選購) 僅有) 腳位定義 說明 RS-485 網路的正訊號線 RS-485 網路的負訊號線 接地端 RxD2 RS-232 的接收資料腳位 RS-232 的傳送資料腳位 TxD2 RS-485 網路的正訊號線 RS-485 網路的負訊號線 接地端 RxD1 RS-232 的接收資料腳位 RS-232 的傳送資料腳位 TxD1 連到電源的接地端...
- Page 7 旋轉開關及出廠預設值 旋轉開關的配置模式定義 (VPD-142(N)-H): No 模式 說明 執行程式。(出廠預設) Run Only USB Force 透過 USB 更新程式。 Update 旋轉開關的配置模式定義 (VPD-143(N)-H): No 模式 說明 執行/更新程式，用於程式開發階段 (能 Run & Update 執行程式，也能進行更新)。(出廠預設) (Ethernet) 強制更新，當 TouchPAD 上的程式嚴重 Ethernet 毀損時可用此模式透過 Ethernet 更新。 Force Update 執行程式。 Run Only USB Force 透過...
- Page 8 使用一字起子來配 乙太網路供電 置旋轉開關 VDC (+12-+48 V) 外部供電器 2. 開始供電給 VPD-142(N)-H/143(N)-H ， 等待約數秒 的開機時間，接著可以看到 VPD-142(N)-H/143(N)-H 執行出貨預附的程式如左圖所示。 3. 試著按一下 VPD-142(N)-H/143(N)-H 螢幕上面的 圖示，VPD-142(N)-H/143(N)-H 會切到其他的頁面。 硬體安裝 VPD-142(N)-H/143(N)-H 的面板安裝 (Panel Mounting) 於上下方的通風口，插 入面板固定鋁夾 使用 M4 x 30L 螺絲釘，鎖 緊固定面板及鋁夾 VPD-142(N)-H/143(N)-H 導軌安裝 (DIN-rail Mounting) Technical support: service@icpdas.com...
