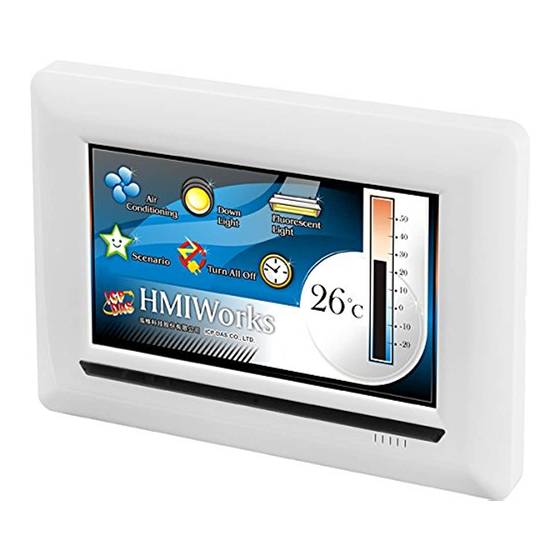

TPD-703/TPD-703-64

7" Touch Screen Controller

What's in the box?

Thanks for buying ICPDAS TPD-703/703-64 device. This shipping

package contains the following items:

TPD-703/703-64 x 1

Related Information

Documents, such as the User Manuals, the API References,

etc.:

https://www.icpdas-usa.com/tpd_703.html

https://www.icpdas-usa.com/tpd_703_64.html

Free Development Software, HMIWorks:

https://www.icpdas-usa.com/hmiworks.php

If you have any questions, please feel free to contact us via email.

TPD-703/TPD-703-64 7" Touch Screen Controller

ICP DAS USA, Inc. |

www.icpdas-usa.com

Quick Start

Quick Start x 1

(This Document)

- QuickStart (Apr/2020)

| 1-310-517-9888 | 24309 Narbonne Ave. Suite 200. Lomita, CA 90717

Stylus x 1
