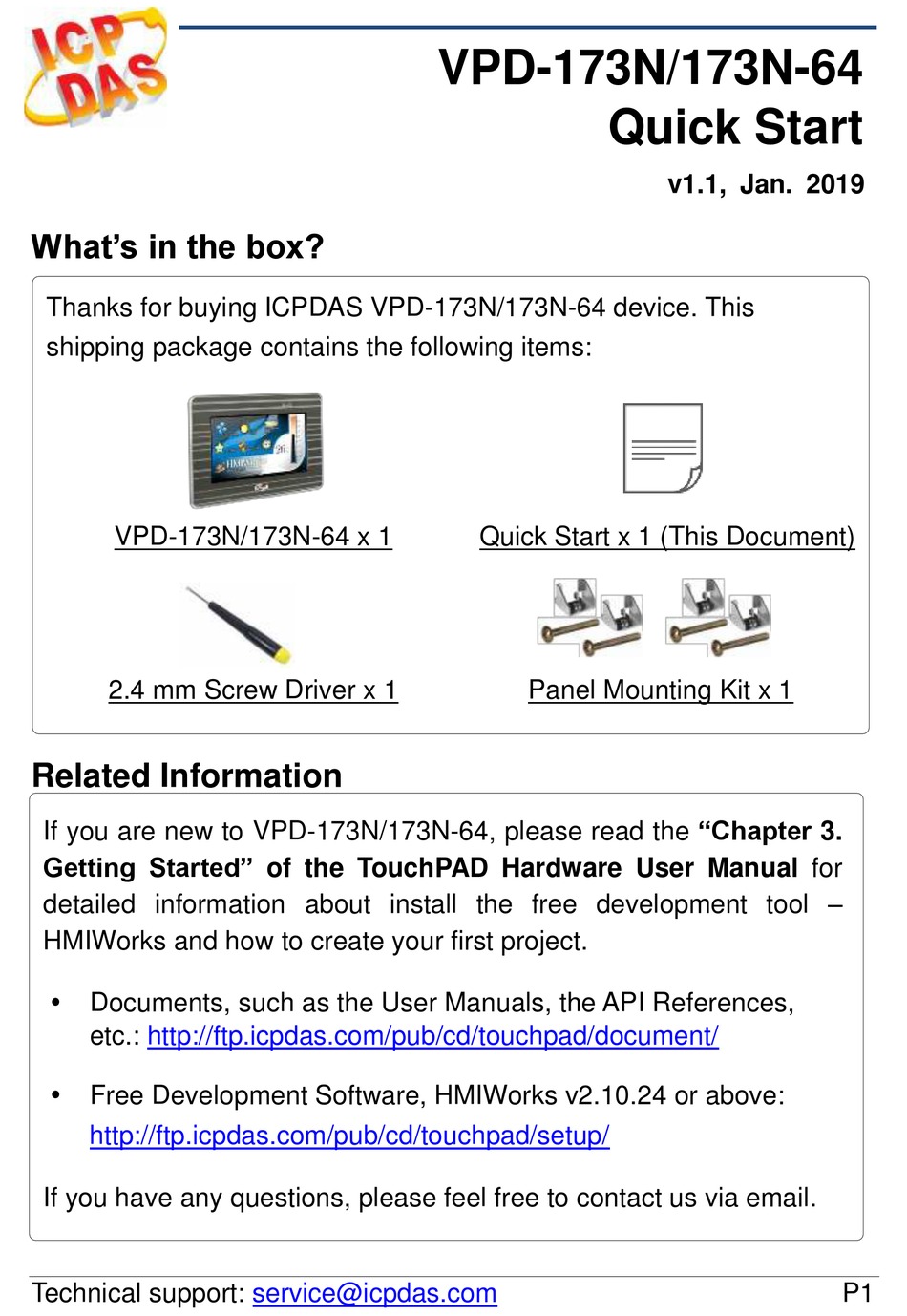

What's in the box?
Thanks for buying ICPDAS VPD-173N/173N-64 device. This
shipping package contains the following items:
VPD-173N/173N-64 x 1
2.4 mm Screw Driver x 1
Related Information
If you are new to VPD-173N/173N-64, please read the "Chapter 3.
Getting Started" of the TouchPAD Hardware User Manual for
detailed information about install the free development tool –
HMIWorks and how to create your first project.
Documents, such as the User Manuals, the API References,
etc.:
http://ftp.icpdas.com/pub/cd/touchpad/document/
Free Development Software, HMIWorks v2.10.24 or above:
http://ftp.icpdas.com/pub/cd/touchpad/setup/
If you have any questions, please feel free to contact us via email.
Technical support:
service@icpdas.com
VPD-173N/173N-64
Quick Start
Quick Start x 1 (This Document)
Panel Mounting Kit x 1
v1.1, Jan. 2019
P1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VPD-173N and is the answer not in the manual?

Questions and answers

Related Manuals for ICP DAS USA VPD-173N

Summary of Contents for ICP DAS USA VPD-173N

  • Page 1 2.4 mm Screw Driver x 1 Panel Mounting Kit x 1 Related Information If you are new to VPD-173N/173N-64, please read the “Chapter 3. Getting Started” of the TouchPAD Hardware User Manual for detailed information about install the free development tool –...
  • Page 2 Appearance Front View Rear View Left View Rotary Switch 7” LCD Touch Reset Button Power Port Serial Port Ethernet Panel Indicator Pin Assignments COM2 COM1 Power F.G. PWR P.GND Description The pin of transmitted data of the RS-232 The pin of received data of the RS-232 COM2 Ground pin The negative data line of the RS-485 network...
  • Page 3 255.255.0.0 Gateway 192.168.0.1 First Use of the VPD-173N Series 1. Connect wires as the below figure or prepare an Ethernet cable which will be used to supply power through PoE if there’s a RJ-45 Ethernet port on it. And set the rotary switch to 0 (At this point, the power is not yet supplied).
  • Page 4 2. Supply power to the VPD-173N/173N-64 wait for several seconds and then you can see the default program run on it. 3. Try to touch on the icons on the bottom-right corner of the screen of the VPD-173N/173N-64 and you can find that VPD-173N/173N-64 switches to the setting pages.
  • Page 5 配件: 產品須知 x 1 (本文件) VPD-173N/173N-64 x 1 24 mm 螺絲刀 x 1 面板安裝組件 x 1 參考資訊 如果您是第一次使用 VPD-173N/173N-64，請參閱 TouchPAD 硬體 使用手冊的 “第 3 章 啟動 TouchPAD” 來了解如何安裝免費的開發 軟體 HMIWorks 並建立第一個專案以及更多詳細的相關資訊。 相關文件，如使用手冊、應用程式介面指南(API Reference) 等:  http://ftp.icpdas.com/pub/cd/touchpad/document/ 免費開發軟體，HMIWorks 版本 2.10.24 或以上版本: ...
  • Page 6 外觀 前配置圖 後配置圖 左配置圖 旋轉 開關 7” 吋觸控 重啟按鈕 Ethernet 序列埠 電源埠 液晶螢幕 指示燈 腳位定義 COM2 COM1 Power F.G. PWR P.GND 說明 RS-232 的傳送資料腳位 RS-232 的接收資料腳位 接地端 COM2 RS-485 網路的負訊號線 RS-485 網路的正訊號線 RS-232 的傳送資料腳位 RS-232 的接收資料腳位 接地端 COM1 RS-485 網路的負訊號線 RS-485 網路的正訊號線...
  • Page 7 旋轉開關及出廠預設值 旋轉開關的配置模式定義: No 模式 說明 執行/更新程式，用於程式開發階段 (能 執行程式，也能進行更新)。通過乙太網 Run & Update 路 (Ethernet) 可以進行遠端更新程式。 (出廠預設) 強制更新 ， 當程式異常而無法進入上述更 Force Update 新時可用此模式更新。 執行程式。 Run Only 網路設定出廠預設如下表: IP Address 192.168.255.1 Subnet Mask 255.255.0.0 Gateway 192.168.0.1 第一次使用 V PD-173N 系列 1. 如下圖所示，將電源和接地線連接完成。或是有 RJ-45 的乙太網路接 孔，可以準備一條網路線，透過乙太網路供電...
  • Page 8 2. 開始供電給 VPD-173N/173N-64，等待約 數秒的開機時間，接著可以看到 VPD-173N/173N-64 執行出貨預附的程式如 左圖所示。 3. 試著按一下 VPD-173N/173N-64 螢幕上面的圖示 ， VPD-173N/173N-64 會切到其他的頁面。 硬體安裝 VPD-173N/173N-64 的面板安裝 (Panel Mounting) 於上下方的通風口，插入面板固定鋁夾 使用 M4 x 30L 螺 絲釘，鎖緊固定面 板及鋁夾 Technical support: service@icpdas.com...
