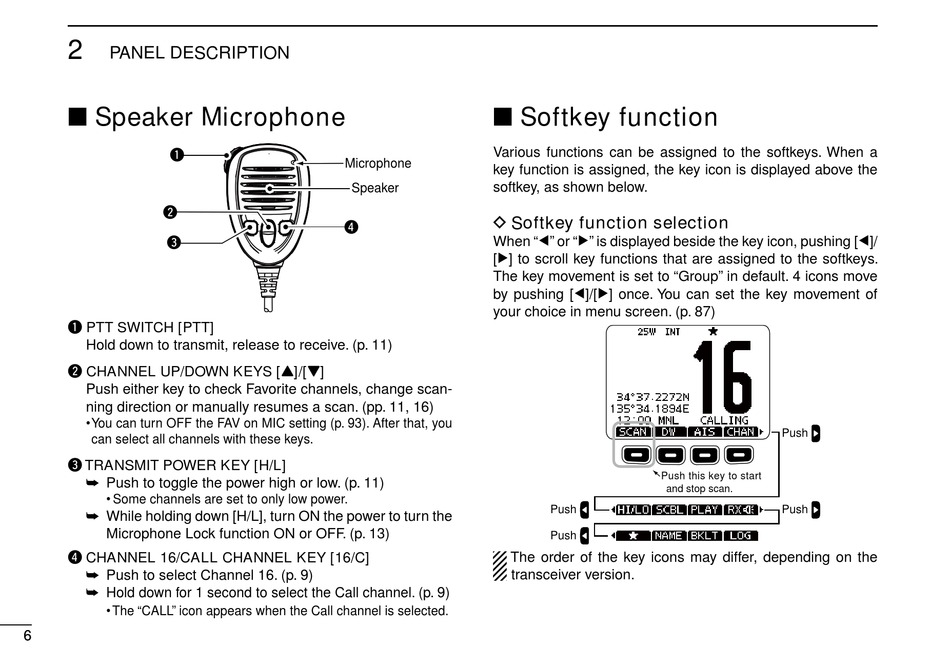

PANEL DESCRIPTION

■ Speaker Microphone

q
w
e
q PTT SWITCH [PTT]
Hold down to transmit, release to receive. (p. 11)
w CHANNEL UP/DOWN KEYS [Y]/[Z]
Push either key to check Favorite channels, change scan-
ning direction or manually resumes a scan. (pp. 11, 16)
• You can turn OFF the FAV on MIC setting (p. 93). After that, you
can select all channels with these keys.
e TRANSMIT POWER KEY [H/L]
➥ Push to toggle the power high or low. (p. 11)
• Some channels are set to only low power.
➥ While holding down [H/L], turn ON the power to turn the
Microphone Lock function ON or OFF. (p. 13)
r CHANNEL 16/CALL CHANNEL KEY [16/C]
➥ Push to select Channel 16. (p. 9)
➥ Hold down for 1 second to select the Call channel. (p. 9)
• The "CALL" icon appears when the Call channel is selected.
6 6

■ Softkey function

Various functions can be assigned to the softkeys. When a
Microphone
key function is assigned, the key icon is displayed above the
softkey, as shown below.
Speaker
D Softkey function selection
r
When "Ω" or "≈" is displayed beside the key icon, pushing [Ω]/
[≈] to scroll key functions that are assigned to the softkeys.
The key movement is set to "Group" in default. 4 icons move
by pushing [Ω]/[≈] once. You can set the key movement of
your choice in menu screen. (p. 87)
The order of the key icons may differ, depending on the
transceiver version.
Push this key to start
and stop scan.
Push
Push
Push
Push
