12
CONNECTIONS AND MAINTENANCE

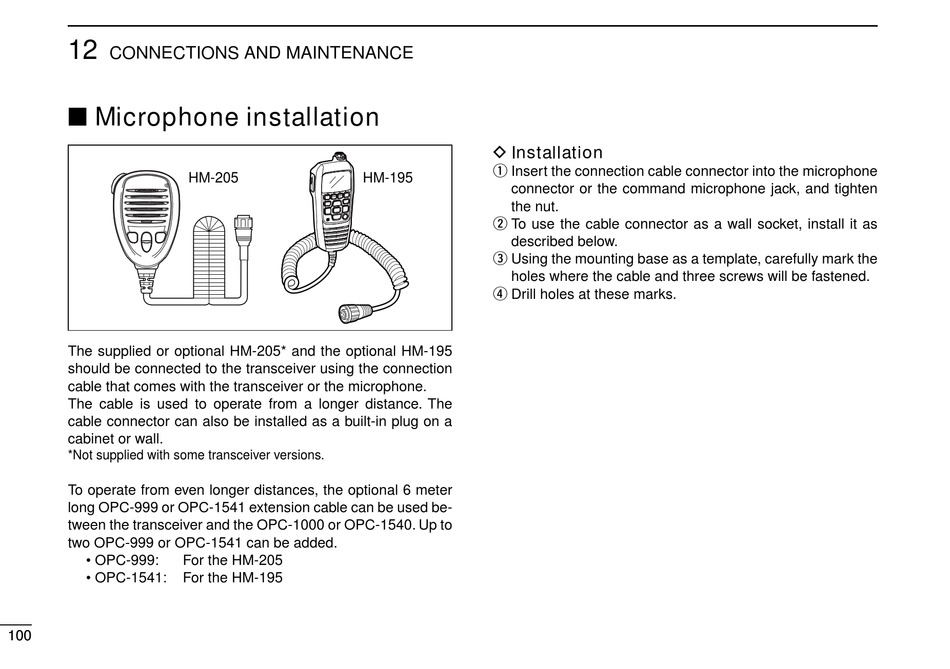

■ Microphone installation

The supplied or optional HM-205* and the optional HM-195
should be connected to the transceiver using the connection
cable that comes with the transceiver or the microphone.
The cable is used to operate from a longer distance. The
cable connector can also be installed as a built-in plug on a
cabinet or wall.
*Not supplied with some transceiver versions.
To operate from even longer distances, the optional 6 meter
long OPC-999 or OPC-1541 extension cable can be used be-
tween the transceiver and the OPC-1000 or OPC-1540. Up to
two OPC-999 or OPC-1541 can be added.
• OPC-999: For the HM-205
• OPC-1541: For the HM-195
100 100
HM-205 HM-195
D Installation
q Insert the connection cable connector into the microphone
connector or the command microphone jack, and tighten
the nut.
w To use the cable connector as a wall socket, install it as
described below.
e Using the mounting base as a template, carefully mark the
holes where the cable and three screws will be fastened.
r Drill holes at these marks.
