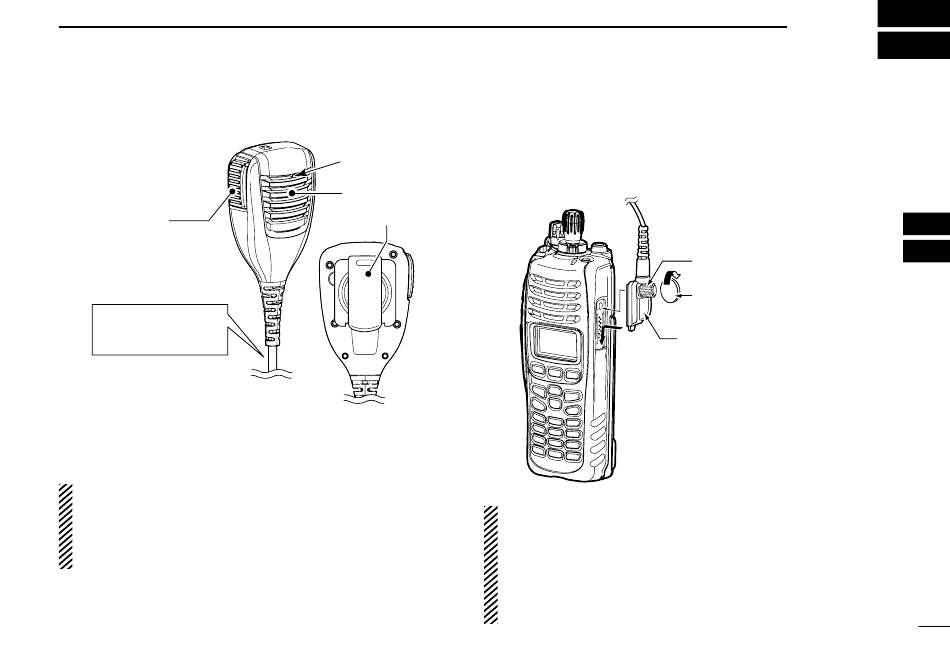

■ Optional HM-184 description

PTT SWITCH
Push and hold to
transmit;
release to receive.
Turn the transceiver
power OFF while con-
necting the HM-184.
NEVER immerse the connector in water. If the connector
becomes wet, be sure to dry it BEFORE attaching it to the
transceiver.
NOTE: The microphone is located as shown in the diagram
above. To maximize the readability of your transmitted sig-
nal (voice), hold the microphone approx. 5 to 10 cm (2 to 4
inches) from your mouth, and speak in a normal voice
level.

SPEAKER MICROPHONE

■ To attach

Attach the connector of the speaker-microphone into the
Microphone
multi connector on the transceiver and tighten the screw with
a coin or flat head screwdriver.
Speaker
Belt clip
IMPORTANT: KEEP the connector cover attached to the
transceiver when the speaker-microphone is not in use.
(p. 3)
Water will not get into the transceiver even if the cover is
not attached; however, the terminals (pins) will become
rusty, or the transceiver will function abnormally if the con-
nector gets wet.
6
Screw
Coin
CAUTION:
Attach the
multi connector properly,
but do not overtighten.
A loose connection will al-
low water intrusion into the
connector; an overtight-
ened connection will dam-
age the connector pins in
the transceiver.
