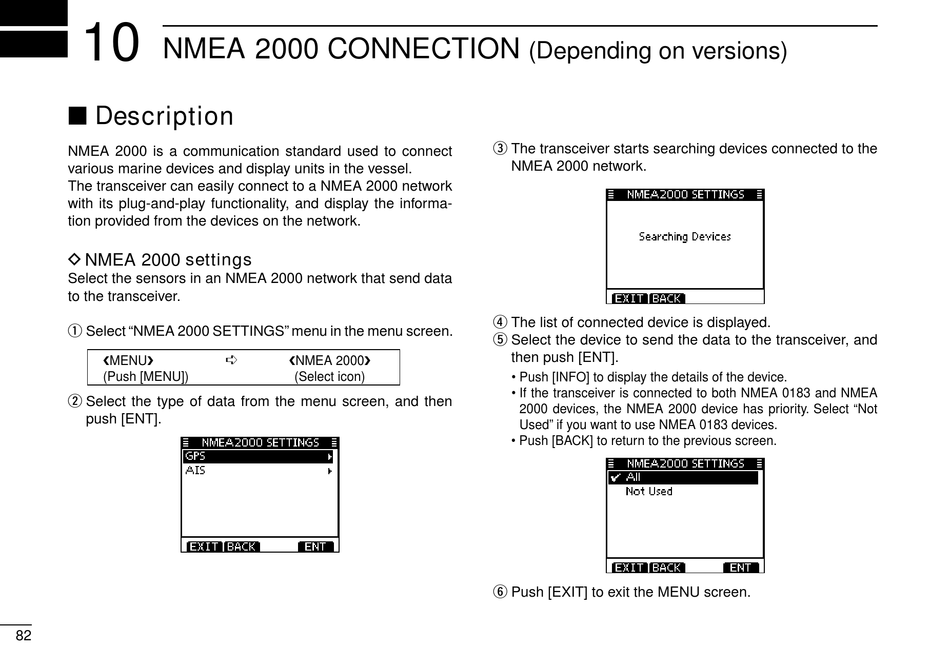

NMEA 2000 CONNECTION

■ Description

NMEA 2000 is a communication standard used to connect
various marine devices and display units in the vessel.
The transceiver can easily connect to a NMEA 2000 network
with its plug-and-play functionality, and display the informa-
tion provided from the devices on the network.
D NMEA 2000 settings
Select the sensors in an NMEA 2000 network that send data
to the transceiver.
q Select "NMEA 2000 SETTINGS" menu in the menu screen.
MENU
(Push [MENU])
w Select the type of data from the menu screen, and then
push [ENT].
82
➪ NMEA 2000
(Select icon)
(Depending on versions)
e The transceiver starts searching devices connected to the
NMEA 2000 network.
r The list of connected device is displayed.
t Select the device to send the data to the transceiver, and
then push [ENT].
• Push [INFO] to display the details of the device.
• If the transceiver is connected to both NMEA 0183 and NMEA
2000 devices, the NMEA 2000 device has priority. Select "Not
Used" if you want to use NMEA 0183 devices.
• Push [BACK] to return to the previous screen.
y Push [EXIT] to exit the MENU screen.
