Options - Icom IC-M506GE Instruction Manual

13

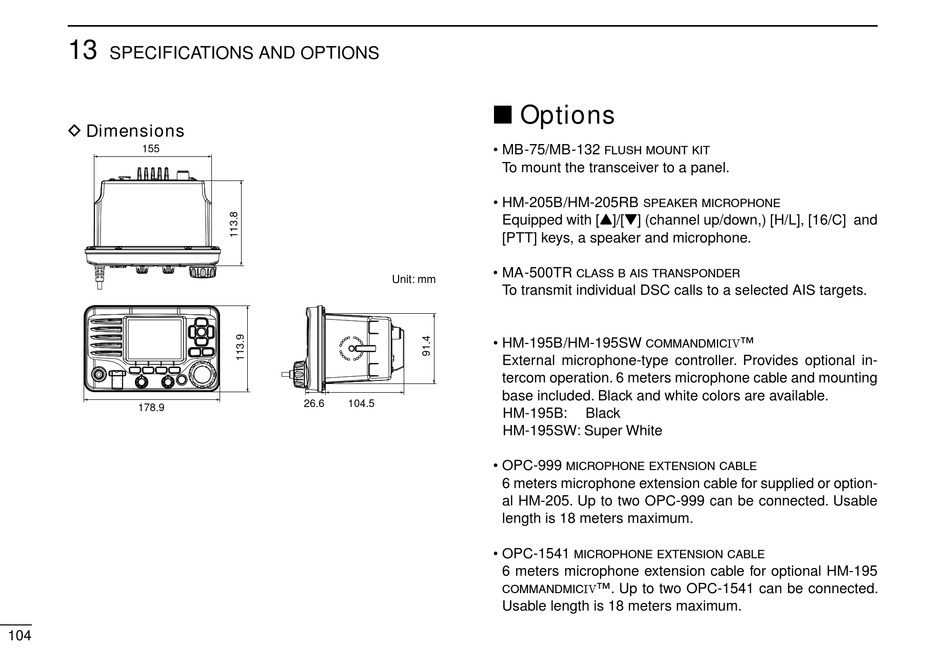

SPECIFICATIONS AND OPTIONS
D Dimensions
155
178.9
104
Unit: mm
26.6 104.5

■ Options

• MB-75/MB-132
flush mount Kit
To mount the transceiver to a panel.
• HM-205B/HM-205RB
speaKer microphone
Equipped with [Y]/[Z] (channel up/down,) [H/L], [16/C] and
[PTT] keys, a speaker and microphone.
• MA-500TR
class b ais transponder
To transmit individual DSC calls to a selected AIS targets.
• HM-195B/HM-195SW commandmic IV
External microphone-type controller. Provides optional in-
tercom operation. 6 meters microphone cable and mounting
base included. Black and white colors are available.
HM-195B: Black
HM-195SW: Super White
• OPC-999
microphone extension cable
6 meters microphone extension cable for supplied or option-
al HM-205. Up to two OPC-999 can be connected. Usable
length is 18 meters maximum.
• OPC-1541
microphone extension cable
6 meters microphone extension cable for optional HM-195
commandmic IV ™. Up to two OPC-1541 can be connected.
Usable length is 18 meters maximum.
™
