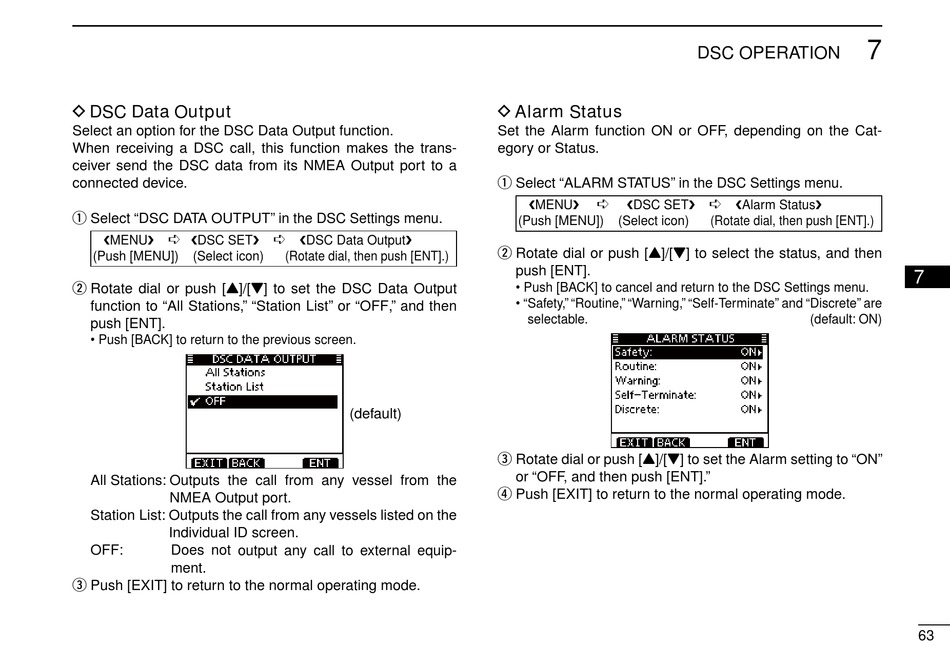

D DSC Data Output
Select an option for the DSC Data Output function.
When receiving a DSC call, this function makes the trans-
ceiver send the DSC data from its NMEA Output port to a
connected device.
q Select "DSC DATA OUTPUT" in the DSC Settings menu.
DSC SET
➪
MENU
(Push [MENU]) (Select icon)
w Rotate dial or push [Y]/[Z] to set the DSC Data Output
function to "All Stations," "Station List" or "OFF," and then
push [ENT].
• Push [BACK] to return to the previous screen.
All Stations: Outputs the call from any vessel from the
NMEA Output port.
Station List: Outputs the call from any vessels listed on the
Individual ID screen.
OFF: Does not output any call to external equip-
ment.
e Push [EXIT] to return to the normal operating mode.
DSC Data Output
➪
(Rotate dial, then push [ENT].)
(default)
D Alarm Status
Set the Alarm function ON or OFF, depending on the Cat-
egory or Status.
q Select "ALARM STATUS" in the DSC Settings menu.
➪ DSC SET
MENU
(Push [MENU]) (Select icon)
w Rotate dial or push [Y]/[Z] to select the status, and then
push [ENT].
• Push [BACK] to cancel and return to the DSC Settings menu.
• " Safety," "Routine," "Warning," "Self-Terminate" and "Discrete" are
selectable.
e Rotate dial or push [Y]/[Z] to set the Alarm setting to "ON"
or "OFF, and then push [ENT]."
r Push [EXIT] to return to the normal operating mode.
7
DSC OPERATION
➪ Alarm Status
(Rotate dial, then push [ENT].)
(default: ON)
