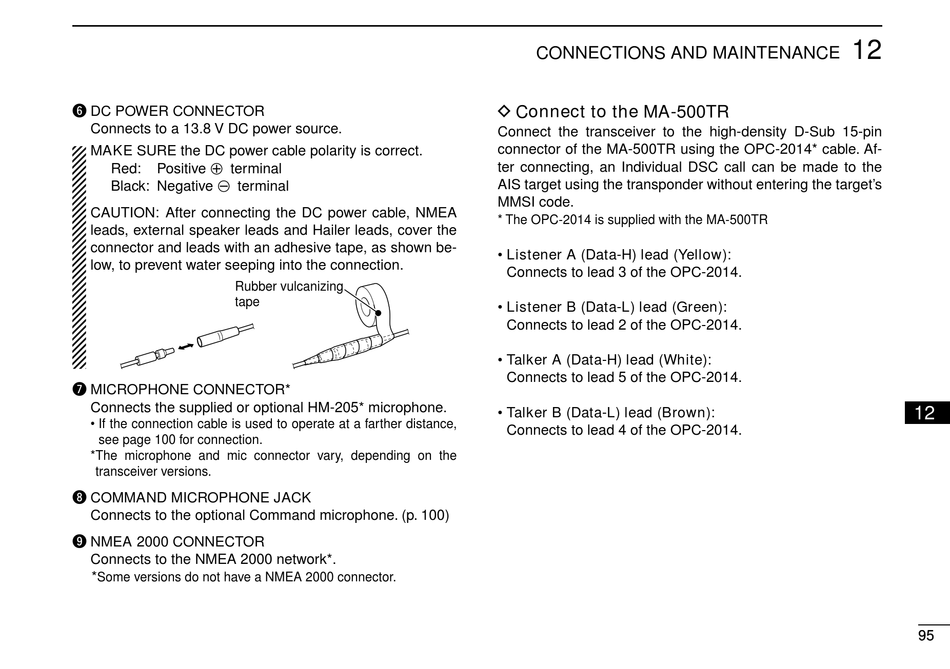

Icom IC-M506GE Instruction Manual page 101

y DC POWER CONNECTOR
Connects to a 13.8 V DC power source.
MAKE SURE the DC power cable polarity is correct.
Positive + terminal
Red:
Black: Negative _ terminal
CAUTION: After connecting the DC power cable, NMEA
leads, external speaker leads and Hailer leads, cover the
connector and leads with an adhesive tape, as shown be-
low, to prevent water seeping into the connection.
Rubber vulcanizing
tape
u MICROPHONE CONNECTOR*
Connects the supplied or optional HM-205* microphone.
• If the connection cable is used to operate at a farther distance,
see page 100 for connection.
* The microphone and mic connector vary, depending on the
transceiver versions.
i COMMAND MICROPHONE JACK
Connects to the optional Command microphone. (p. 100)
o NMEA 2000 CONNECTOR
Connects to the NMEA 2000 network*.
*
Some versions do not have a NMEA 2000 connector.
CONNECTIONS AND MAINTENANCE
D Connect to the MA-500TR
Connect the transceiver to the high-density D-Sub 15-pin
connector of the MA-500TR using the OPC-2014* cable. Af-
ter connecting, an Individual DSC call can be made to the
AIS target using the transponder without entering the target's
MMSI code.
* The OPC-2014 is supplied with the MA-500TR
• Listener A (Data-H) lead (Yellow):
Connects to lead 3 of the OPC-2014.
• Listener B (Data-L) lead (Green):
Connects to lead 2 of the OPC-2014.
• Talker A (Data-H) lead (White):
Connects to lead 5 of the OPC-2014.
• Talker B (Data-L) lead (Brown):
Connects to lead 4 of the OPC-2014.
