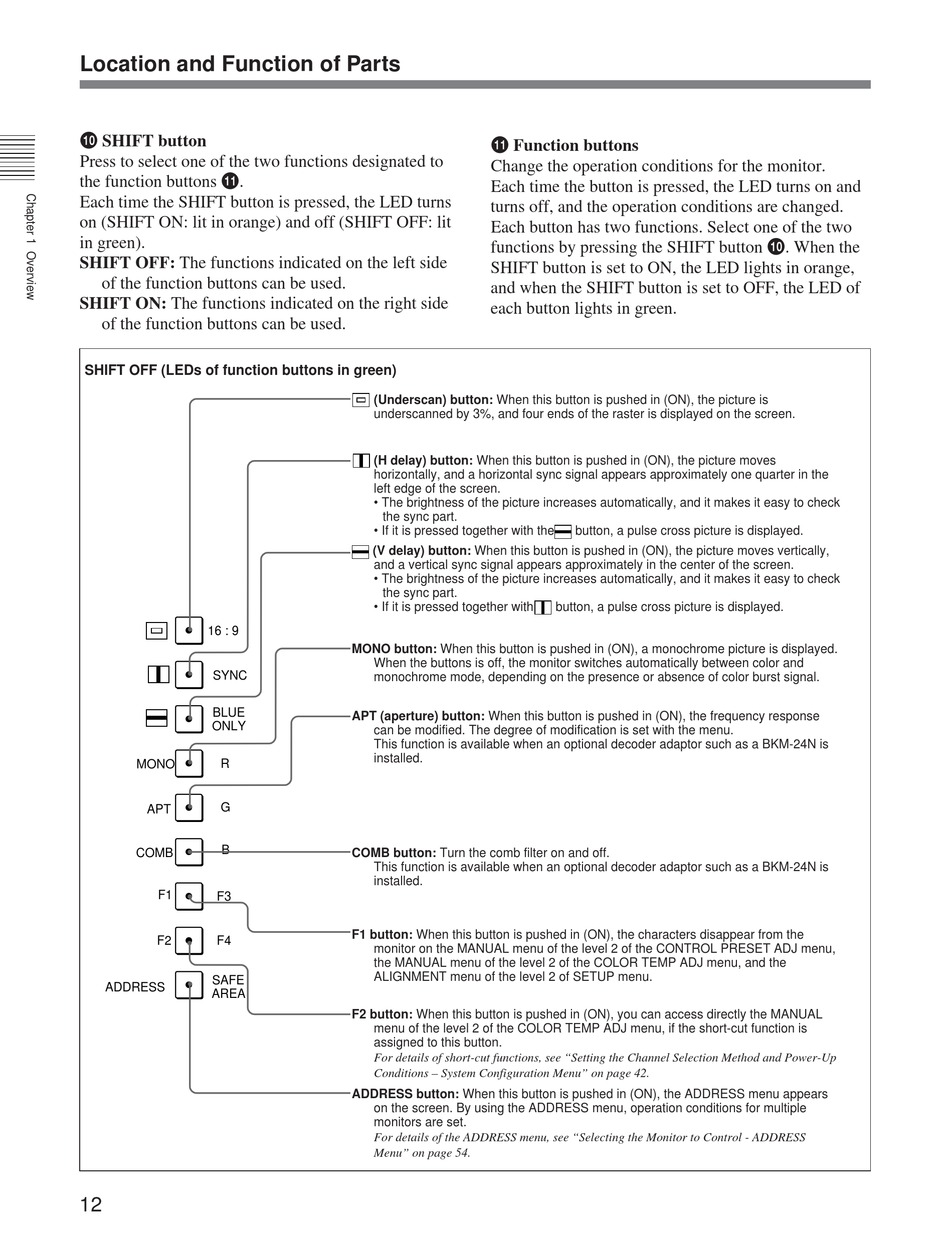

Location and Function of Parts

0 SHIFT button

Press to select one of the two functions designated to
the function buttons !¡.
Each time the SHIFT button is pressed, the LED turns
on (SHIFT ON: lit in orange) and off (SHIFT OFF: lit
in green).
SHIFT OFF: The functions indicated on the left side
of the function buttons can be used.
SHIFT ON: The functions indicated on the right side
of the function buttons can be used.
SHIFT OFF (LEDs of function buttons in green)
16 : 9
SYNC
BLUE
ONLY
R
MONO
G
APT
B
COMB
F1
F3
F2
F4
SAFE
ADDRESS
AREA
12
!¡ Function buttons
Change the operation conditions for the monitor.
Each time the button is pressed, the LED turns on and
turns off, and the operation conditions are changed.
Each button has two functions. Select one of the two
functions by pressing the SHIFT button 0. When the
SHIFT button is set to ON, the LED lights in orange,
and when the SHIFT button is set to OFF, the LED of
each button lights in green.
(Underscan) button: When this button is pushed in (ON), the picture is
underscanned by 3%, and four ends of the raster is displayed on the screen.
(H delay) button: When this button is pushed in (ON), the picture moves
horizontally, and a horizontal sync signal appears approximately one quarter in the
left edge of the screen.
• The brightness of the picture increases automatically, and it makes it easy to check
the sync part.
• If it is pressed together with the
(V delay) button: When this button is pushed in (ON), the picture moves vertically,
and a vertical sync signal appears approximately in the center of the screen.
• The brightness of the picture increases automatically, and it makes it easy to check
the sync part.
• If it is pressed together with
MONO button: When this button is pushed in (ON), a monochrome picture is displayed.
When the buttons is off, the monitor switches automatically between color and
monochrome mode, depending on the presence or absence of color burst signal.
APT (aperture) button: When this button is pushed in (ON), the frequency response
can be modified. The degree of modification is set with the menu.
This function is available when an optional decoder adaptor such as a BKM-24N is
installed.
COMB button: Turn the comb filter on and off.
This function is available when an optional decoder adaptor such as a BKM-24N is
installed.
F1 button: When this button is pushed in (ON), the characters disappear from the
monitor on the MANUAL menu of the level 2 of the CONTROL PRESET ADJ menu,
the MANUAL menu of the level 2 of the COLOR TEMP ADJ menu, and the
ALIGNMENT menu of the level 2 of SETUP menu.
F2 button: When this button is pushed in (ON), you can access directly the MANUAL
menu of the level 2 of the COLOR TEMP ADJ menu, if the short-cut function is
assigned to this button.
For details of short-cut functions, see "Setting the Channel Selection Method and Power-Up
Conditions – System Configuration Menu" on page 42.
ADDRESS button: When this button is pushed in (ON), the ADDRESS menu appears
on the screen. By using the ADDRESS menu, operation conditions for multiple
monitors are set.
For details of the ADDRESS menu, see "Selecting the Monitor to Control - ADDRESS
Menu" on page 54.
button, a pulse cross picture is displayed.
button, a pulse cross picture is displayed.
